NA-DE GNDK User Manual

MULTI-APARTMENT AUDIO PHONE SYSTEM USER MANUAL 4+N
GNDK
abc def
mno
ghi jkl
pqrs tuv wxyz
DEL ENTER
GENERAL FEATURES

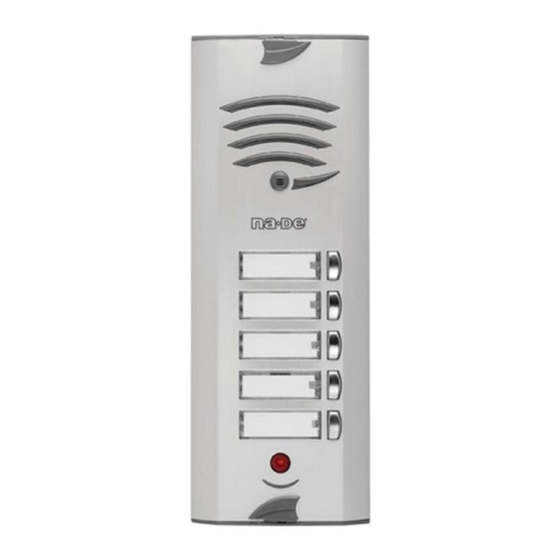

- Digital doorbell panel with guide and LCD display (Systems with GNDK and D01)
- Coded outdoor opener from digital doorbell panel (Systems with GNDK and D01)
- Name record and delete on guide (Systems with GNDK and D01)
"Outdoor panel - Apartment" conversation
- Other apartmens do not hear conversation during panel-apartment conversation.
- Automatic shut-down after conversation time out.
- User can terminate the conversation manually.
- Door opener and Stairs automat can be controlled by user during the conversation.
- No interruption on signals in door openers and stairs automat usings.
- First prioritiy assigned to Panel calls. Other conversations terminated when panel call is requested.
"Apartment - Doorkeeper" conversation
- Other apartmens do not hear conversation during apartment-doorkeeper conversation.
- Automatic shut-down after conversation time out.
- Doorkeeper can terminate the conversation manually.
- Door opener and Stairs automat can be controlled by Doorkeeper during the conversation.
- No interruption on signals in door openers and stairs automat usings.
Doorbell melodies
- Two doorbell melody option for apartments. So the "Panel calls" and "Door calls" can be distinguished.
- Three doorbell melody option for doorkeeper. So the Panel call, Apartment call or Door call can be distinguished.
- Doorbell rings not only button pressed but it goes on until the melody finishes.
- Doorbell stops whenever handset is picked up.
SAFETY WARNINGS :
• Please read the warnings carefully and keep them in somewhere easy to find.
• Installation of the apparatus should strictly be carried out only by qualified electiricians. Otherwise you may cause the
device get out of guarantee.
• For correct installation, please read through these warnings and please install device according to directions.
• Isolate the mains electrical supply before you start to make or change connections to device.
• Device should be installed at places where it would not be exposed the water, steam, extreme cold or hot air.
• Please do not install these devices such damp places as bathroom and aside washing machine.
• Please do not install these devices at somewhere near a moistener or heater. Keep away from places that are exposed
to spark, heat and moisture it could cause fire and electrical shock.
• Please do not make any different connection in your system that is not recommended in this user guide and do not use
different products.
• This will cause your system damage.
• In case of using products with different brands, device could be damaged.
• Do not preserve in hot or cold places. Too hot or cold places may cause the product not work and electronic circuits' life
shorten. Also, these places can cause flexure and melting of plastics compenents.
• Do not use and preserve in dirty and dusty places.
• Do not apply such chemicals as powerful detergent and cleaners.
• To clean the device use soap cleaners and rub up to product.
(With Secured Talking)
GTHP 04
G90012-1
G90030-1
1
G90050-1
D01
