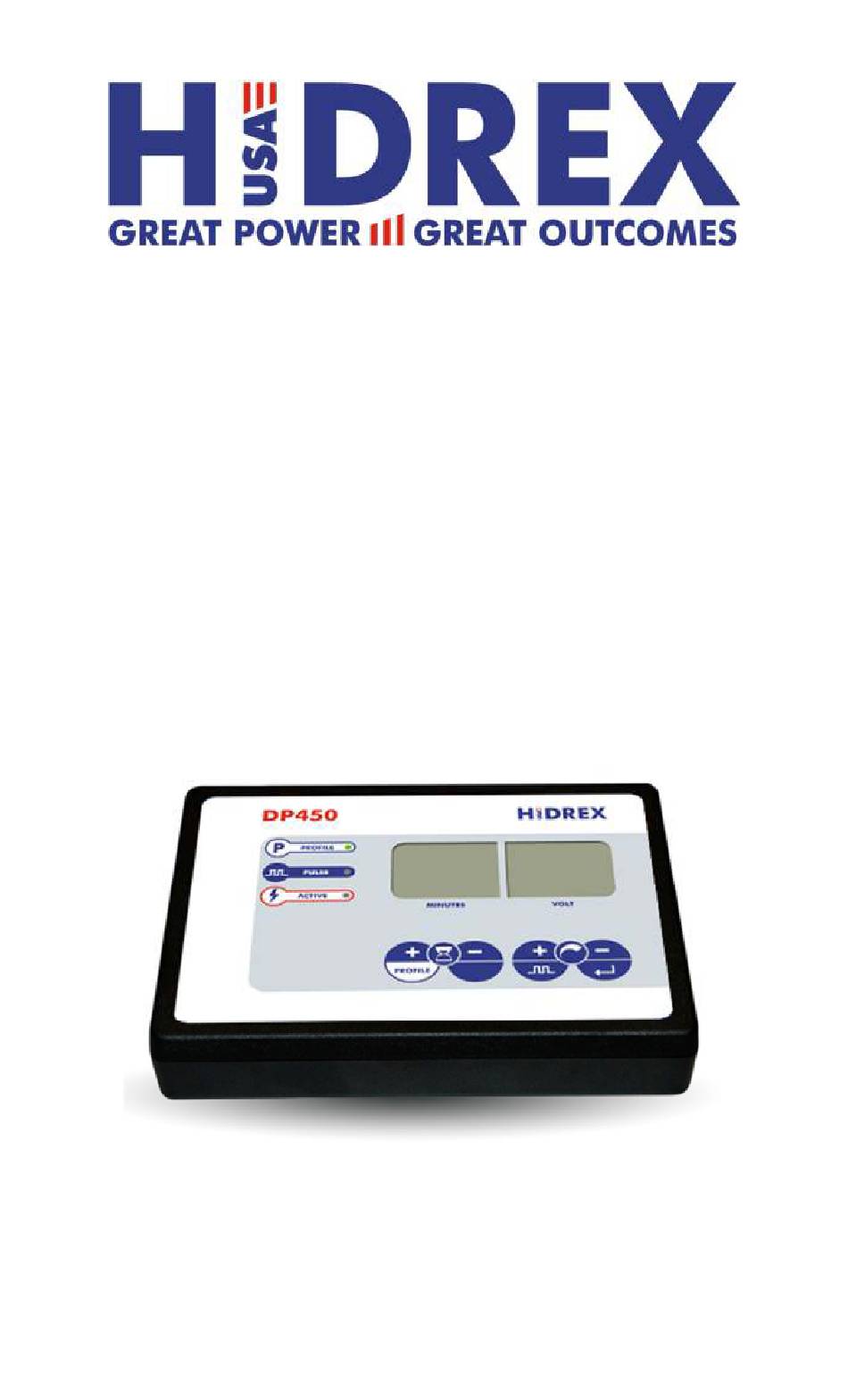

  • Page 1 DP450 Tap Water Iontophoresis (TWI) System User Manual (Included and optional accessories not shown)
  • Page 2: Table Of Contents

    Shipping the Device for Repair or Maintenance Applicable Regulations and Legal Requirements Symbol Legend / Manufacturer / Device Identification Lifespan Electromagnetic Compatibility Waste Management and Packaging of Electronic Devices Technical Data Distribution/Trading DP450 Tap Water Iontophoresis System User Manual Rev. 1.4 / 02-16-2017...
  • Page 3: Read Before Use

    Your Safety is Important This treatment system may only be powered by the HIDREX AC power adapter (which can be identified by a HIDREX nameplate with Serial- No.). This power supply is especially designed for this device.
  • Page 4: Contraindications

    The system should not be operated in the vicinity of shortwave or microwave medical diathermy devices. A minimum distance of 2 meters should be kept at all times. These electric shocks are definitely uncomfortable, but harmless. DP450 Tap Water Iontophoresis System User Manual Rev. 1.4 / 02-16-2017...
  • Page 5: Intended Use / Mechanism Of Action

    Mechanism of Action: During the HIDREX treatment, a current flows through the body regions that are being treated. The water in the trays or pads mediates this current flow. The skin areas in contact with the water will thereby secrete less sweat.
  • Page 6: Treatment Fundamentals

    The treatment current can be adjusted according to your individual sensitivity. There is no risk involved as the current cannot exceed certain maximum values. Treatment Fundamentals The HIDREX treatment concept comprises two treatment phases: Phase 1: The initial phase (therapy initiation) is sometimes conducted under a doctor‘s supervision.
  • Page 7: Types Of Current

    It is recommended NOT to reverse polarity within any given treat- ment session. Types of Current The DP450 has several options for the type of current used during treatment: DC: Direct Current (standard) PC: Pulsed Current PC is recommended as an option for treatment of underarms, or treatments where the skin is more sensitive, or for the treatment of children.
  • Page 8: System Components

    Axillary Treatment Kit Axillary Treatment Kit includes a pair of small electrodes (AX electrodes) and a pair of pads (each pad consists of a sponge cushion with a leather cover) DP450 Tap Water Iontophoresis System User Manual Rev. 1.4 / 02-16-2017...
  • Page 9: Control Unit Side & Rear Panel Elements

    12V DC 1 Control unit main ON/OFF switch (main power switch) 2 Jacks for connecting the cable set to the treatment electrodes 4 Connector for AC adapter (12V DC) DP450 Tap Water Iontophoresis System User Manual Rev. 1.4 / 02-16-2017...
  • Page 10: Control Unit Front Panel Elements

    Programming Mode: Increase time Setup Mode (Select Profile) Indicates Profile (preset) has been selected Indicates Pulsed Current has been selected Active – indicates that circuit is complete and device is active DP450 Tap Water Iontophoresis System User Manual Rev. 1.4 / 02-16-2017...
  • Page 11: Installation / Treatment Setup

    The two basins of the case can easily be separated by pushing the left side away from you while pulling the right side toward you. The case must be completely open (lying flat) before attempting to separate the sides. DP450 Tap Water Iontophoresis System User Manual Rev. 1.4 / 02-16-2017...
  • Page 12: Setup For Axillary (Armpits)Treatment

    Axillary Treatment Kit from your underarms. If you ignore this advice, you run a very small risk of feeling a complete- ly harmless, but uncomfortable, electric shock. Although the HIDREX system comes equipped with a feature called Anti Shock Electronics (ASE©) designed to permit current flow interruption, there is a very...
  • Page 13: Primary Parameter Setup (Setup Mode)

    The following describes how to select and store these parameters: After setting up your HIDREX therapy system in accordance with the instructions in the “Installation” chapter, turn on the control unit by pushing the main power switch 1.
  • Page 14 If you leave the Setup Mode, you must turn off the device briefly and then turn it on again in order to access Setup Mode and alter the above treatment options. In the factory, your DP450 is pre-set as follows: Pulsed Current: Time:...
  • Page 15: Begin Treatment (Programming Mode)

    Select the dose in accordance with your doctor’s orders or use the table of factory pre-set treatment parameters for guidance. DP450 Tap Water Iontophoresis System User Manual Rev. 1.4 / 02-16-2017...
  • Page 16 If you interrupt the treatment by removing the treatment area from the water source, the ACTIVE LED goes off and the treatment timer is paused. The DP450 Tap Water Iontophoresis System User Manual Rev. 1.4 / 02-16-2017...
  • Page 17: Important Advice For Conducting Treatments

    Remove the treatment area from the water source (trays or pads) and THEN switch the device off. Important Advice for Conducting Treatments For your safety, your HIDREX treatment system comes equipped with sev- eral protective circuits. Immersion monitoring Immersion monitoring is a built-in feature that detects when the treatment electrical current circuit is closed due to immersion of the palms or feet, or placement of the pads under the arms.
  • Page 18: Care And Maintenance

    Safety circuit The DP450 has a safety circuit which stops the treatment in the case the current exceeds 30 mA. In this case, the display will show “StOP” and all LEDs will blink. Please turn it off, unplug the power supply from the wall and send the device with all electrical accessories back to us if this occurs.
  • Page 19: Care And Purification

    As a communal device for multi-patient use, the following protocols should be obeyed: Each patient will be provided with own consumables for HIDREX ionto- • phoresis treatment (pair of towels or axillary pads) , which can be re- used to every session.
  • Page 20: Disinfection

    • Operational check of the medical device. Disinfection Because exclusively unscathed skin will be treated, the HIDREX tap water ionto- phoresis devices are classified as “non-critical” concerning disinfection. As a communal device for multi-patient use, the following protocol should be...
  • Page 21: Reconditioning

    The reconditioning of the devices is classified as “non-critical”. The reconditioning should be done only by an authorized HIDREX repair center. If a device is to be reconditioned, the following actions will also be taken: or axillary pads ❐) need to be disposed of...
  • Page 22: Shipping The Device For Repair Or Maintenance

    Please do not ship towels, axillary pads or any other pads. Please send all electrical accessories (AC power adapter➮, electrodes➴, AX electrodes❒ and cable set➬) together with the HIDREX control unit. Applicable Regulations and Legal Requirements The regulations valid in the respective operator's country (e.g., infection preven- tion, technical servicing or registration and documentation regulations) are to be kept in connection with the location of use (e.g., medical institution), in any case,...
  • Page 23: Symbol Legend / Manufacturer / Device Identification

    Each successful reconditioning by the manufacturer extends the lifespan of the medical device by 2 years. If the HIDREX tap water iontophoresis system is reconditioned for the same patient, the treatment trays or carrying case (depend- ing on their condition) do not necessarily have to be replaced.
  • Page 24: Electromagnetic Compatibility

    This device has an immunity level of 20V/m with no accessories con- nected to the device. HIDREX tap water iontophoresis devices should be used in an electro- magnetic environment as listed below. The client or user should ensure that it is used in an appropriate environment.
  • Page 25 Table 4 Electromagnetic Immunity - Life Support Equipment Susceptibility IEC 60601-test level Actual level Conducted RF IEC 61000-4-6 150 kHz to 80 MHz Radiated RF 3 V/m IEC 61000-4-3 80 MHz to 2.5 GHz DP450 Tap Water Iontophoresis System User Manual Rev. 1.4 / 02-16-2017...
  • Page 26: Waste Management And Packaging Of Electronic Devices

    AC Power Adapter (Use genuine part only!) Input Input voltage 100-240 V~ / 50-60 Hz Max. current 400 mA Output Nominal output voltage 12 V= Output current max. 600 mA Max. output power 8 VA DP450 Tap Water Iontophoresis System User Manual Rev. 1.4 / 02-16-2017...
  • Page 27 EN AW 5754 (Aluminum) 2.9” x 3.45” x 1.3“ 36.75 sq. in. Electrodes 1.4301-2b (Stainless Steel) 122.13 4.5” x3.45” x1.3” Electrodes sq. in. (EN AW 5754 (Aluminum) Buffer None DP450 Tap Water Iontophoresis System User Manual Rev. 1.4 / 02-16-2017...
  • Page 28: Distribution/Trading

    0.81 0.95 Sponge Cushions Axillary, 8.25 3.63 4.24 individual Electrode Distribution/Trading Hidrex USA, LLC 12400 West Highway 71 Suite 350-384 Austin, TX 78738 Toll Free 1-8HIDREXUSA Email: customer.service@hidrexusa.com www.hidrexusa.com DP450 Tap Water Iontophoresis System User Manual Rev. 1.4 / 02-16-2017...
