Powerhouse xm-100 Owner's Manual

Chainsaw winch
Hide thumbs

Advertisement

Quick Links

Download this manual
OWNER'S MANUAL

Advertisement

loading
Need help?

Need help?

Do you have a question about the xm-100 and is the answer not in the manual?

Questions and answers

wayne Joseph
March 5, 2025

does any thing go on the out side of the sprocket

0
1 comments:
Mr. Anderson
March 5, 2025

The bronze bushing (D503A) goes on the outside of the sprocket (D503) for the Powerhouse XM-100.

This answer is automatically generated

0

Summary of Contents for Powerhouse xm-100

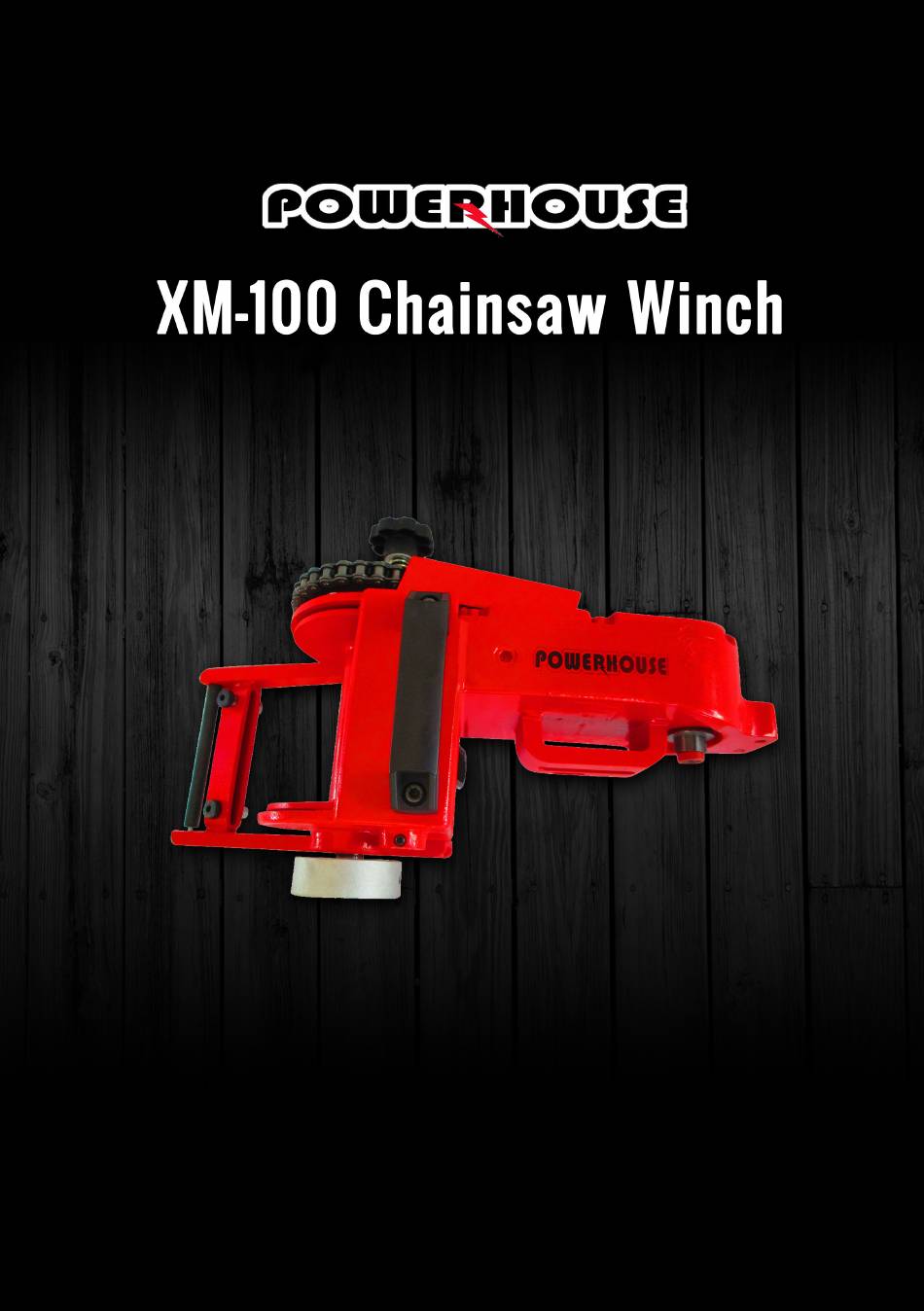

  • Page 1 OWNER’S MANUAL...
  • Page 2 Congratulations! You have made the right choice by choosing the Powerhouse XM-100 Chainsaw Winch! Before you do anything else, read the XM-100 Owner’s Manual from cover to cover to learn how to operate your new Chainsaw Winch safely and efficiently.
  • Page 3 Cable Management • Replace cable when it shows signs of wear (frays, bends, kinks, etc.). • Use either 1/8” or 3/16” cables. Your new Powerhouse Chainsaw Winch comes with 150 feet of 3/16” aircraft cable. • For safety reasons, keep at least 10-20 wraps on the drum at all times.

  • Page 4: Noise Levels

    • To anchor your Powerhouse Chainsaw Winch to a tree, use a belt. Connect it directly to the winch, or use another cable or chain, as needed.
  • Page 5 Find a secure tree stump and put the Powerhouse Chainsaw Winch on top. Make sure the Peavey Hook can get a good grip on the tree stump. As soon as you operate the Powerhouse Chainsaw Winch, the load will generate an increase in tension on the cable and will result in a stronger anchoring of the Peavey Hook on the stump.

  • Page 6: Direct Mount

    4. Re-attach the spring-clip, but do not re-attach the large washer. 5. Detach the washer from the input shaft of the Powerhouse Chainsaw Winch. Failure to do so when using the “direct mount” method could result in gear damage. Locate the appropriate adaptor for the chain saw.
  • Page 7 Powerhouse Chainsaw Winch. Slip the rim-sprocket onto the output shaft of the Powerhouse Chainsaw Winch. Do not remove the orange cup washer. Using the retained bar mounting nuts, attach the Powerhouse Chainsaw Winch Adaptor to...
  • Page 8 Attach the supplied cutter-less chain around the sprocket of the chainsaw and the winch. Attach the chain using the supplied connect- ing link. Hammer pins or attach spring clips to securely install side-plate.

  • Page 9: Cable Installation

    5/16” Hex key. • Slip the brake handle on top of the brake drum. Align the attachment bolt with the threaded hole on the Powerhouse Chainsaw Winch. Tighten the bolt with a hex key while tightly holding the brake-handle. TIP : To avoid having a stiff brake handle, do not over tighten the attachment bolt.
  • Page 10 Cable Care Purchase and use of wire rope and aircraft cable WARNING Please take note that the Breaking Strength indicated for wire ropes or aircraft cables apply only to brand new and unused products. To find out the Maximum Working Load of a product, check the CAUTION section below.
  • Page 11 CAUTION It is very important to note that there are several factors that need to be considered in determining the maximum working load for every application. These factors include but are not limited to the following: • Applied Load • Operating Speed •...
  • Page 12 POWERHOUSE XM-100 WINCH PARTS LIST...
  • Page 13 7 Tooth Mini Spline Adaptor for small Stihl saw L906D 6 Tooth Adaptor for Electric saw & small Stihl L906E * Master Adaptor for Powerhouse Winch 1/2” thick w 3 screws L906F * 7 Tooth Standard Spline Adaptor L906G * 7 Tooth Spur Adaptor 3/8” pitch...

  • Page 14: Warranty

    • All repair work will be done by Powerhouse or its authorized agents. • Any replaced defective parts will not extend this warranty period.
  • Page 15 • Powerhouse’ liability is limited to the cost of repair or replacement of the product. Powerhouse’, Inc. will not be liable for any consequential damages or incidental damages you incur in connection with your purchase and use of your unit. This limitation is not allowed by some states and so this limitation may not apply to you.
