2015-17 MUSTANG 2.3L COLD AIR INTAKE W/Cal
1
NO PART OF THIS DOCUMENT MAY BE REPRODUCED WITHOUT PRIOR AGREEMENT AND WRITTEN PERMISSION OF
FORD PERFORMANCE PARTS
PLEASE READ ALL OF THE FOLLOWING INSTRUCTIONS CAREFULLY PRIOR TO INSTALLATION. AT
ANY TIME YOU DO NOT UNDERSTAND THE INSTRUCTIONS
Kit contains:
1-Filter adapter
1-Offset tie wrap
1-Inlet air temp sensor
1-Air cleaner assembly
1-Foam seal
1-Air Inlet
1-ProCal voucher and Procal 3 vehicle interface connector
1-EO label
1-USB Cable
Warning: Read ProCal voucher before starting installation!
Remove stock air cleaner housing
Advertisement
Related Manuals for Ford Performance M-9603-M4
Summary of Contents for Ford Performance M-9603-M4
- Page 1 2015-17 MUSTANG 2.3L COLD AIR INTAKE W/Cal NO PART OF THIS DOCUMENT MAY BE REPRODUCED WITHOUT PRIOR AGREEMENT AND WRITTEN PERMISSION OF FORD PERFORMANCE PARTS PLEASE READ ALL OF THE FOLLOWING INSTRUCTIONS CAREFULLY PRIOR TO INSTALLATION. AT ANY TIME YOU DO NOT UNDERSTAND THE INSTRUCTIONS...

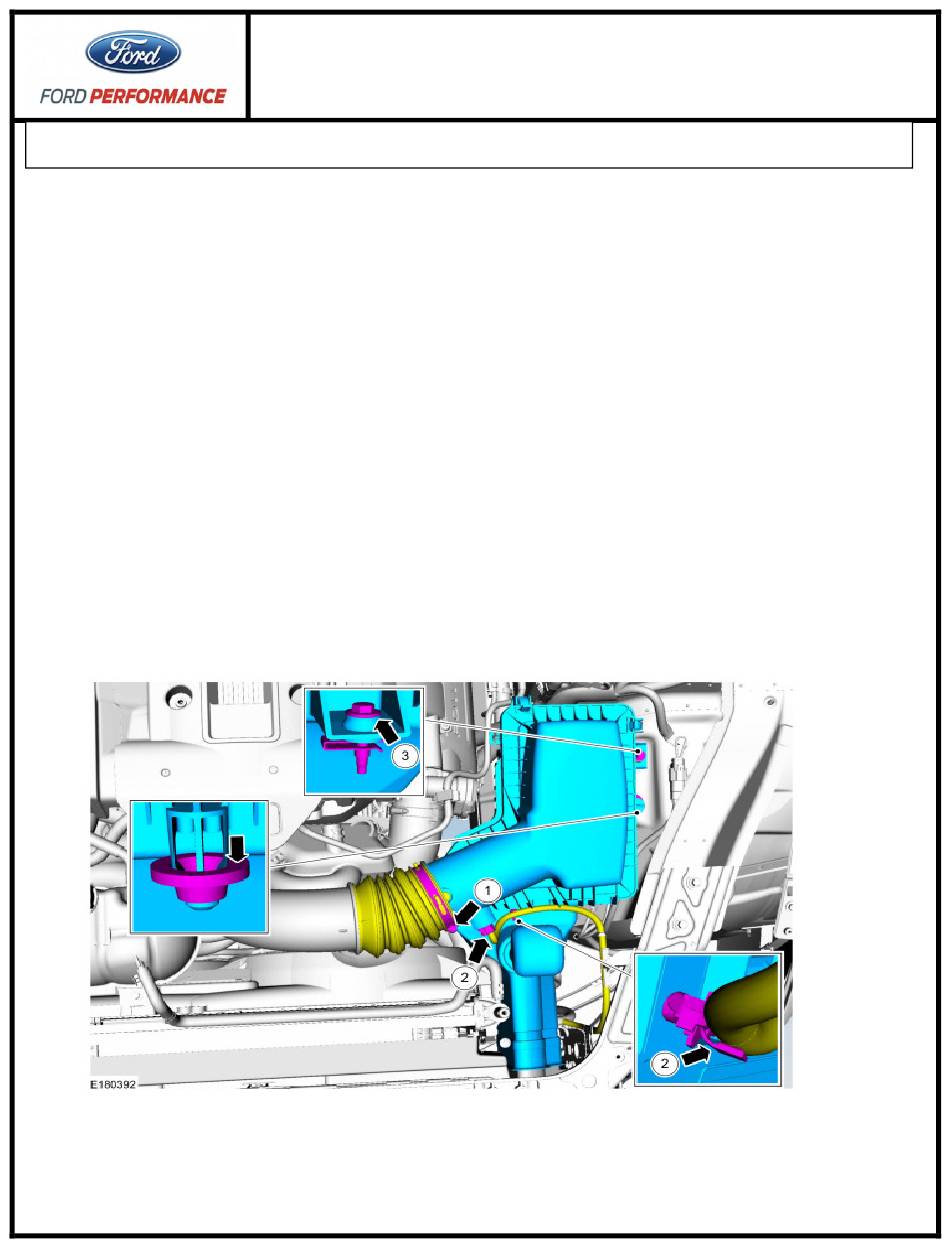

- Page 2 2015-17 MUSTANG 2.3L COLD AIR INTAKE W/Cal NO PART OF THIS DOCUMENT MAY BE REPRODUCED WITHOUT PRIOR AGREEMENT AND WRITTEN PERMISSION OF FORD PERFORMANCE PARTS 1. Loosen the clamp, position aside the air outlet pipe. 2. Detach the wiring harness retainer and disconnect the IAT sensor electrical connectors.
