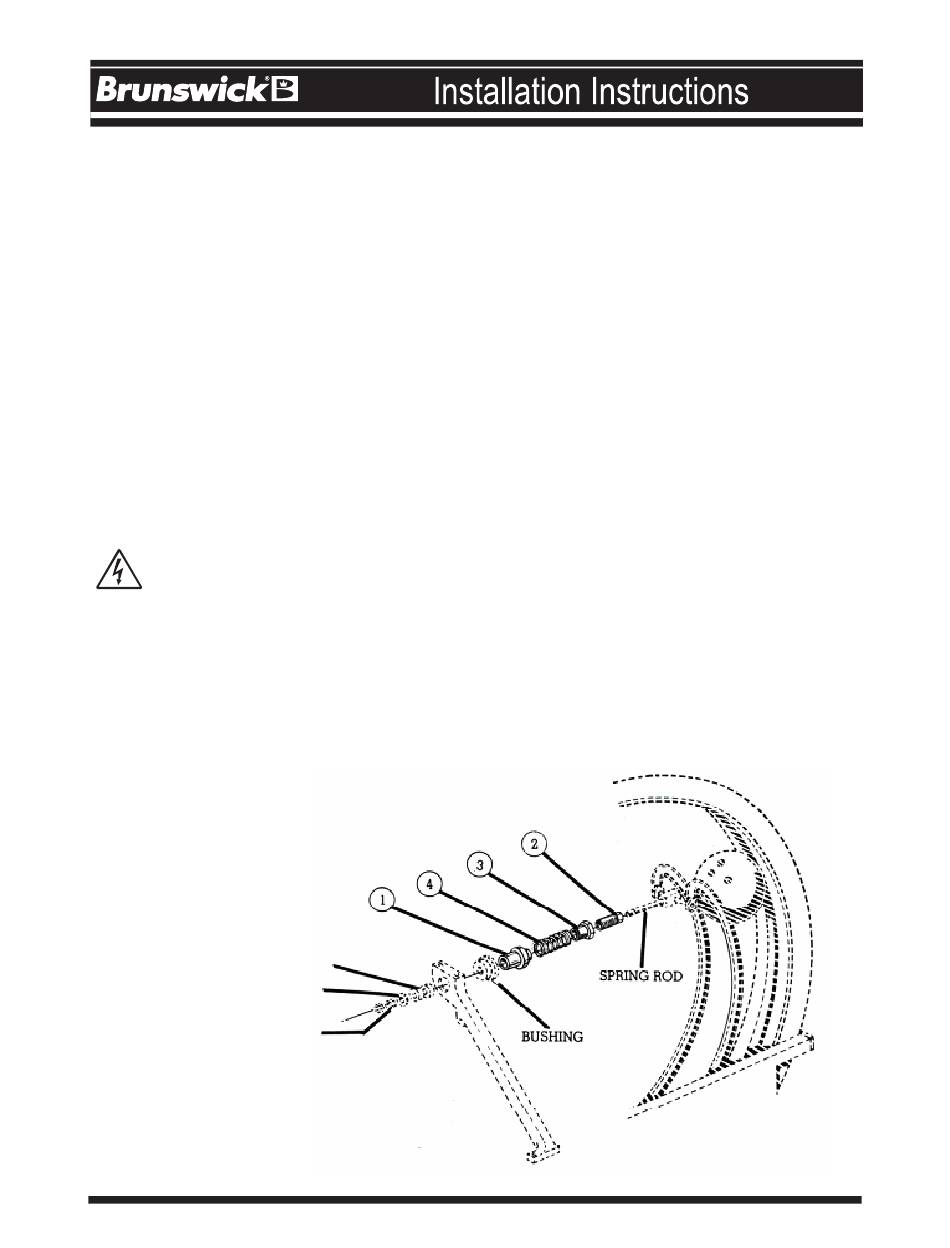

Ball Lift Rod Spring Conversion
Fits all Brunswick Pinsetters
Packaging
Item
No. Qty.
Description
1
1 Ea.
Arbor Stem
2
1 Ea.
Threaded Stem
3
1 Ea.
Nut, Spring Retainer
4
1 Ea.
Spring
5
1 Ea.
Jam Nut 7/8-14 (not illustrated)
Installation
WARNING! Remove all power from pinsetter by throwing main
breaker and disconnecting power cord at control box.
1. Remove jam nuts (P/N 11-125208-000), washer (P/N 12-400139-004) and rubber bumpers
(P/N 12-400123-000). Retain this hardware including flange bushing (P/N 12-400803-000) for
future use. Remove the old spring.
2. Clean spring rod and hardware using machine cleaner and inspect (if badly worn, replace them).
Lube spring rod, bushing and wear surfaces with grease.
RUBBER BUMPER
WASHER
JAM NUTS
September, 2009
12-862944-000
Figure 1
