Arch Environmental Equipment, Inc.

SABER MAX BELT CLEANER

C l o s e Wi n d o w

THE INSTALLATION OF THE SABER MAX BELT CLEANER IS VERY SIMPLE.

SHUT DOWN AND LOCKOUT CONVEYOR BEFORE

STEP 1

Determine the diameter of the head pulley and the thickness of the conveyor belt.

Example: head pulley diameter = 36"(914.4mm), belt thickness = 1 ¾" (44.45mm).

Take one half of the head pulley measurement (in this case 18"(457.2mm)) and

add the belt thickness. This will give an effective radius of 19 ¾" (501.65mm). If

the pulley is smaller than 22" diameter, you cannot use the Saber MAX on this

application.

STEP 2

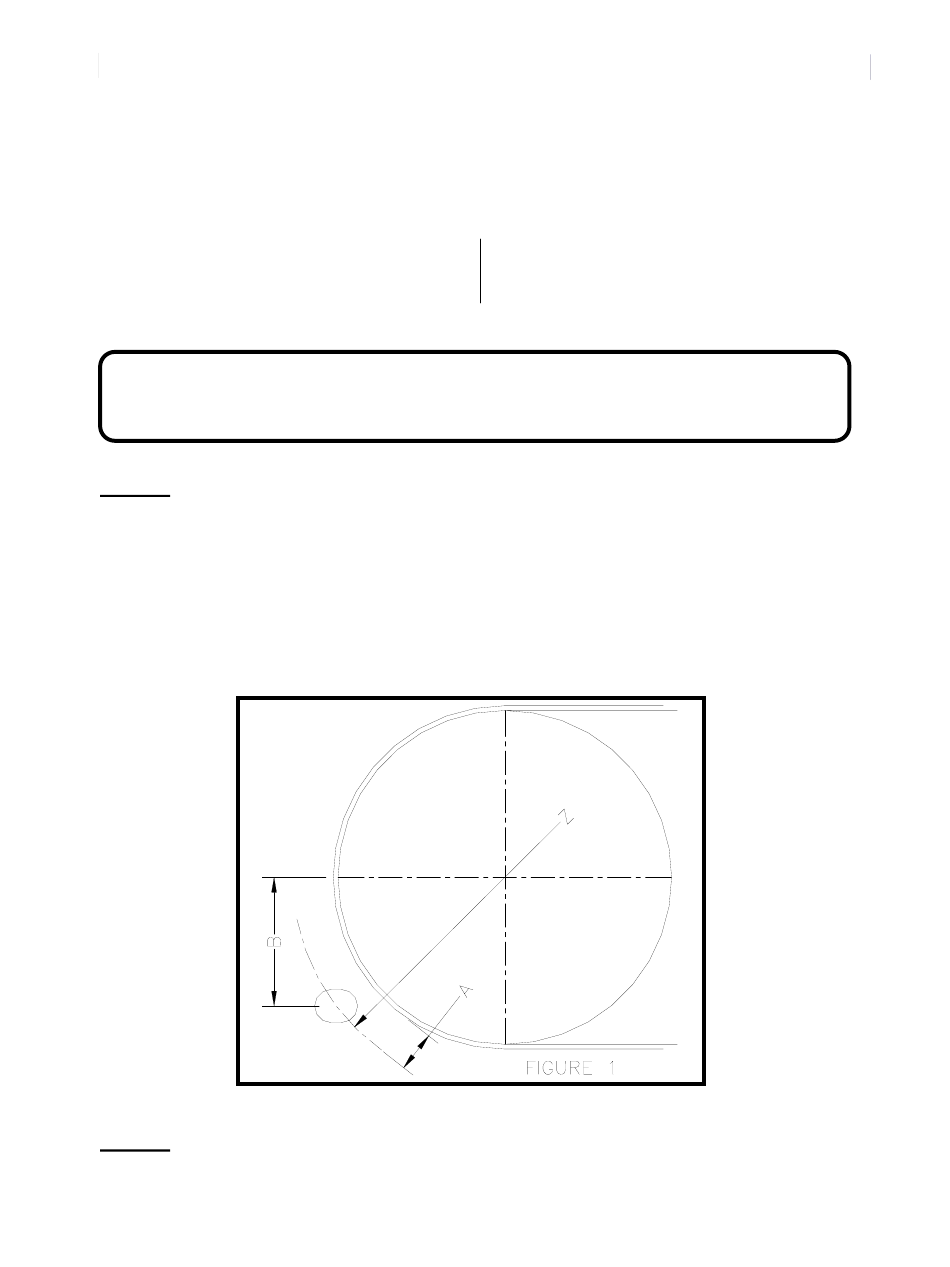

To this number add dimension "A" ( 4 1/4" (107.95mm)). This will give you the "Z"

dimension. See fig. 1. To assist in achieving this spacing, urethane installation

rings have been provided with the cleaner. Use them as directed in step 7.

INSTALLATION INSTRUCTIONS

IT REQUIRES ONLY A FEW TOOLS AND LITTLE TIME.

THE TOOLS & RESOURCES REQUIRED ARE:

1. STRAIGHT EDGE

2. LEVEL

3. TAPE MEASURE

4. CUTTING TORCH

PERFORMING ANY MAINTENANCE

5. WELDING EQUIPMENT

6. CHALK

7. ADJUSTABLE WRENCH

8. STRING (36" or more)

P r i n t

Table of Contents

Need help?

Do you have a question about the Saber Max and is the answer not in the manual?

Page 1 Take one half of the head pulley measurement (in this case 18"(457.2mm)) and add the belt thickness. This will give an effective radius of 19 ¾” (501.65mm). If the pulley is smaller than 22” diameter, you cannot use the Saber MAX on this application.
Page 2 STEP 3 Using the "Z" dimension as described in step 2, use the string and chalk to draw an arc (with radius of "Z") to define the area for cutting the mounting holes on the chute wall. STEP 4 From the centerline of the head pulley measure down approximately 12” (304.8mm) (See Figure 1.
Page 3 STEP 7 Put the frame and blade assembly (Items 3& 4) inside the chute, and slide the tensioner pipes (Item 1) through the holes previously cut in the structure. Then slide the tensioners (Item 2) onto the tensioner pipes. The bushing inside the tensioner hub should fit over about 1”...
Page 4 ONVEYOR FFICIENCY PECIALISTS P.O. Box 1760 5929 Benton Road Paducah, KY 42002-1760 (800) 553-4567 / (270) 898-6821 Fax: (800)230-9462 / (270)898-8061 http://www.aeec.com Gordon Belt Cleaning Systems • Tri-Return Training Idler • Wyatt Alignment Disks • Simplicity Access Doors • Gordon “At-Last-A-Seal” Skirt Rubber Flexiskirt Sealing System •...
