Summary of Contents for Zelocity PureFlight

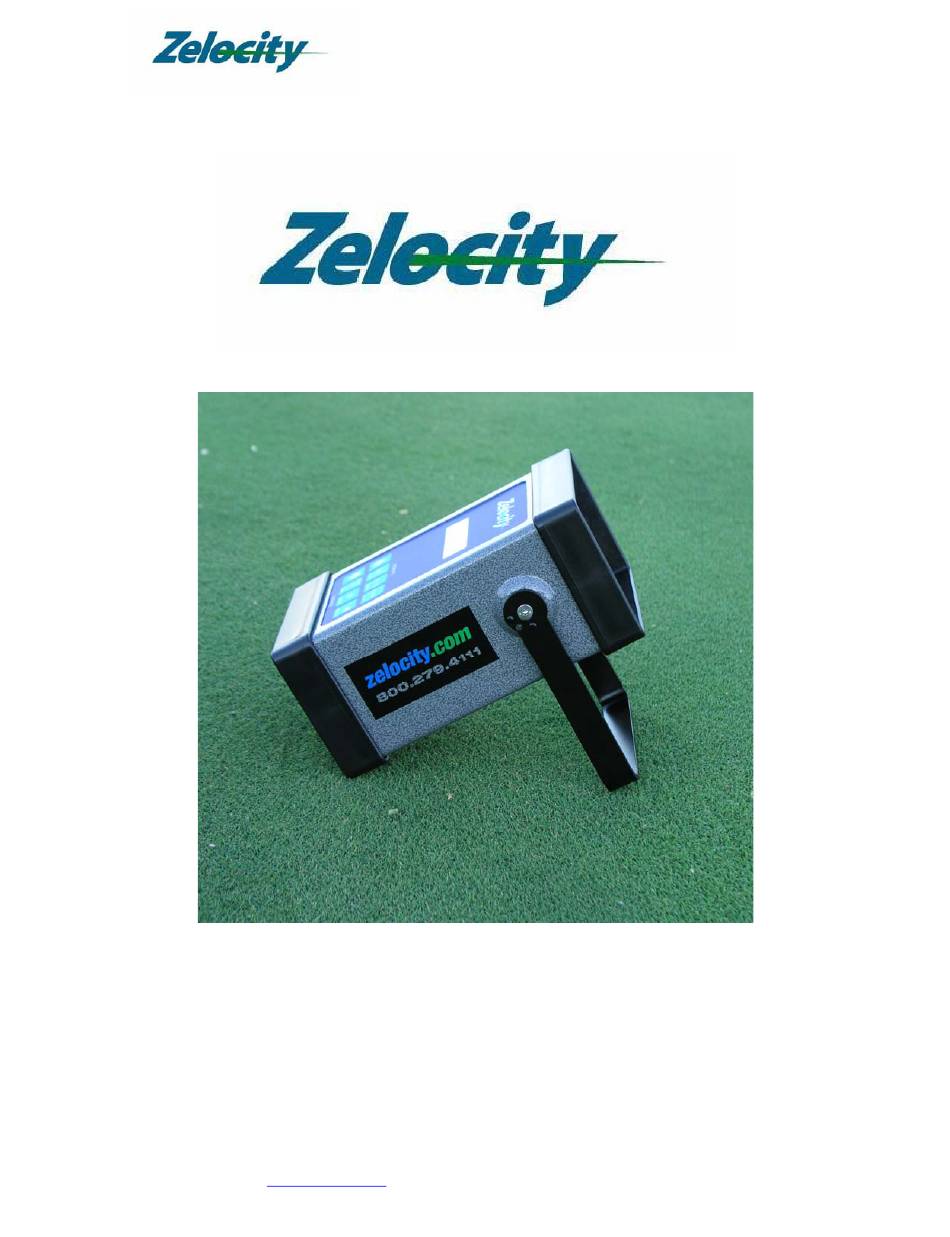

- Page 1 ™ Golf Performance Monitors PureFlight Operating Guide PureFlight ™ Ball Flight Monitor Operating Guide 1 of 22 Version 1.2 www.zelocity.com 1-888-ZELOCITY...
-
Page 2: Table Of Contents
Golf Performance Monitors PureFlight Operating Guide Thank you for choosing the PureFlight™ ball flight monitor by Zelocity, sure to be your favorite golf partner. Please contact us with any questions at 1.888.ZELOCITY or visit our website at www.zelocity.com. Table of Contents ™... - Page 3 ™ Golf Performance Monitors PureFlight Operating Guide DECLARATION OF CONFORMITY We, Zelocity Corporation, 14500 N. Northsight Blvd., Suite 205 Scottsdale, Arizona 85260 Phone 480-556-6007 declare under our sole responsibility that the product Zelocity PureFlight ™ complies with Part 15 of the FCC Rules. Operation is...
-
Page 4: Pureflight Specifications
Data transferable to user’s personal computer via serial connection (optional) • Computer software (optional) available for personal practice, club fitting, and golf instruction ™ o PureFlight Practice uploads practice results to PC for improvement tracking ™ o PureFlight Fitting program displays shot data real-time on computer for club fitting o Software prints distance card by club and performance graphs Applications: Serious and Avid Golfers, Club Fitting, Instruction, Event Rentals, Driving Ranges, etc. -
Page 5: Getting Started
Please contact your Zelocity salesperson immediately if you have not received all these items or any item appears damaged. Please review these instructions carefully and completely prior to using your new PureFlight™. You may also wish to keep this guide handy when operating your unit the first few times. 5 of 22 Version 1.2... - Page 6 MODE 2 microphone cable (for MODE 2 operation) PureFlight™ Keypad The PureFlight™ keypad provides you with the ability to operate the unit, set and change defaults, change modes and more. See the PureFlight™ Keypad Instructions at the end of this manual for all keypad functions.
-
Page 7: Pureflight ™ Power Management
The unit does not charge the internal batteries while it is operating under AC power. If you wish to recharge the unit after AC use, leave the unit plugged in and turn the power off. The PureFlight™ will then recharge normally. -
Page 8: Operating In Mode 1 And Mode 2
Operating Guide Operating in MODE 1 and MODE 2 The PureFlight™ has two different MODES of operation: MODE 1 and MODE 2. For each mode, there are differences in (a) the handle position, (b) how the unit is set up, and (c) how the data is displayed. - Page 9 4. After pressing the POWER key, the unit will display “READY” and will be in MODE 1 (the default). 5. The PureFlight™ unit is now ready for MODE 1 (Distance Only) use. 9 of 22 Version 1.2 www.zelocity.com...
- Page 10 PureFlight Operating Guide Notes on MODE 1 Setup: a. With the microphone in place, the PureFlight™ waits to “hear” the club impact the ball before the radar is activated. This is a power-saving feature designed to save battery charge. b. Without the microphone, the PureFlight™ unit’s radar is always activated.
- Page 11 3. Plug the cable connector into the back panel. Push all the way in and tug on it a little to ensure it is locked into place. If not, pull the cable out and re-insert it making sure it is tightly seated in the PureFlight™ unit. 11 of 22 Version 1.2...
- Page 12 6. The PureFlight™ unit is now ready for MODE 2 use. Notes on MODE 2 Setup: a. In MODE 2, the PureFlight™ has an active radar signal at all times. It waits to “hear” the club impact the ball and then reports club head speed measured just before impact.
-
Page 13: Monitoring Short-Distance Shots In Wedge Mode
Operating Guide Monitoring Short-Distance Shots in WEDGE Mode The PureFlight™ can be used to monitor shots from 20 yards to 420 yards in carry distance. When the unit is powered up, the default mode is for longer (greater than 75 yards) shots. - Page 14 Operating Guide ™ Customizing the PureFlight for Personal Use The PureFlight ball flight monitor is calibrated at the factory for general use by golfers. Built in to this calibration are standard values for local conditions such as: • Elevation Standard: Sea Level •...
-
Page 15: Storing Shot Data In The Pureflight
™ Storing Shot Data in the PureFlight The PureFlight™ is a microprocessor based unit with an internal memory that can store up to 1000 shots, saved in up to 99 sessions. Examples of how a session or set of sessions can be defined include the following: •... - Page 16 The club will be displayed instead of the READY message seen when not in MEMORY mode). e. The PureFlight™ is now ready for MEMORY use and will store the shots in the selected session for the selected club. 2. Begin hitting shots.
-
Page 17: Troubleshooting
Try powering on with the power supply plugged in. If this works, your battery, the charging circuit, or the unit itself may be damaged. Contact our Support department at 888.zelocity or support@zelocity.com. 17 of 22 Version 1.2 www.zelocity.com... - Page 18 (usually 3 to 4 hours or less). I think my power supply is bad. To test this you need another working PureFlight™ or another working power supply. If you don’t have access to another unit/power supply, you need to contact our Support department at 888.zelocity or support@zelocity.com.
- Page 19 Realign either the golfer’s target line or the unit so that the white face of the PureFlight™ is aimed along the flight path the ball is initially traveling. Ensure that the unit is set up properly:...
- Page 20 The unit should be placed the recommended distance behind the ball (see PureFlight™ Set Up for MODE 2 instructions), pointed down the target line, with the Mode 2 microphone cable stretched towards the ball.
-
Page 21: Warranty
Warranted services must be performed at the Zelocity Corporation factory or an authorized Zelocity Service Center. The warranty will be voided should anyone other than the Zelocity factory or an authorized Zelocity Service Center service the product or open the product casing. - Page 22 The foregoing in lieu of all other expressed warranties and Zelocity Corporation does not authorize any party to assume for it any obligation or liability. In no event shall Zelocity Corporation be liable for special or consequential damages arising from the use of this product or anything other than its expressed purpose or for any delay in the performance of this warranty due to causes beyond Zelocity Corporation’s control.
