Summary of Contents for QUADRAX Q-LOCK

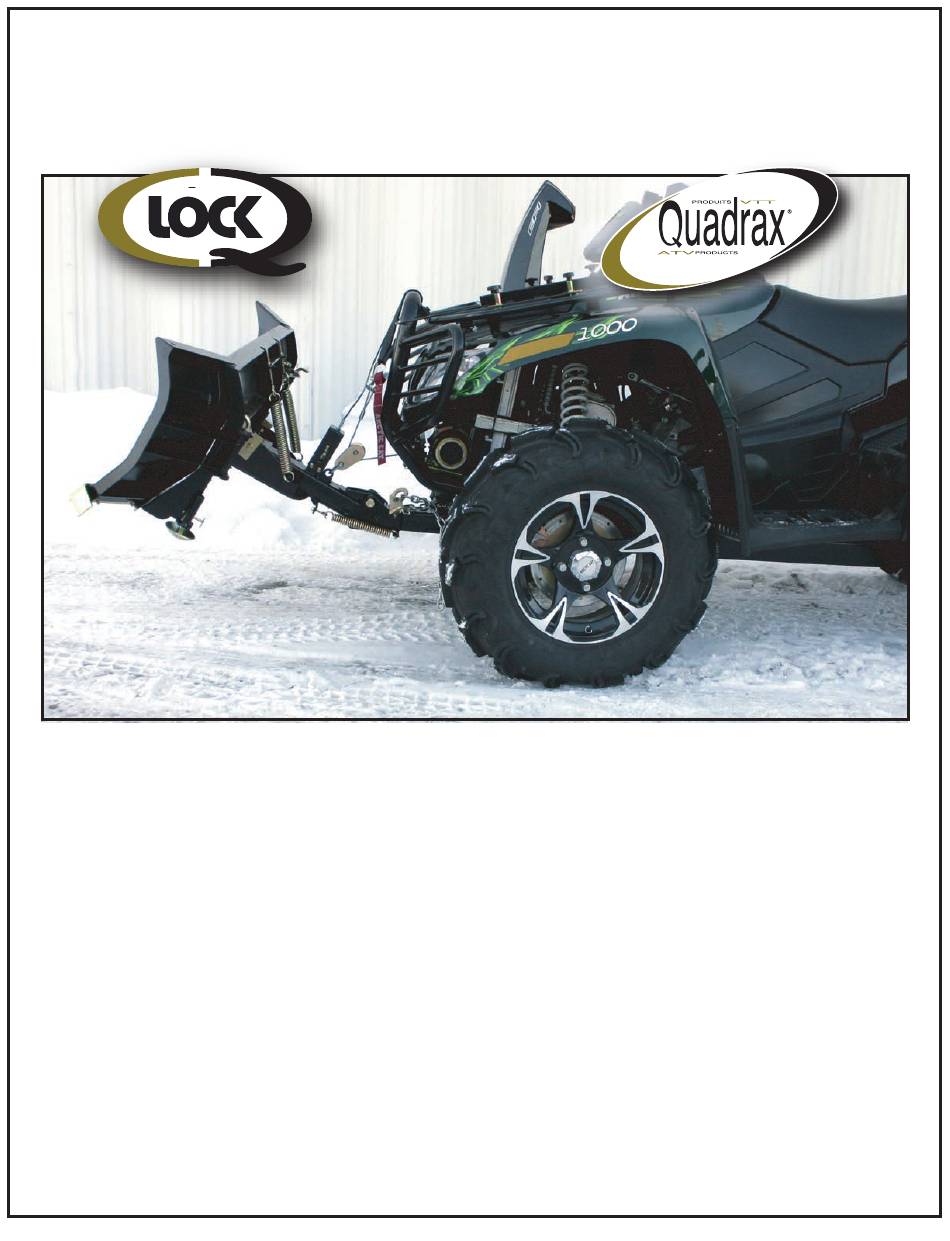

- Page 1 QUADRAX Q-LOCK universal mounting system SYSTEME SYSTEM OWNER’S MANUAL ASSEMBLY INSTRUCTIONS Push tube with universal attachment and articulated arm ALL TERRAIN VEHICLES & UTILITY VEHICLES CAUTION: Please read all safety and operation instructions carefully.
-
Page 2: Table Of Contents
TABLE OF CONTENTS PRODUCT DESCRIPTION………………………………. p2 IMPORTANT NOTICE BEFORE INSTALLATION……… p3 DIMENSIONS TABLE……………………………………. p4 INTRODUCTION………………………………….………..p6 SAFETY PRECAUTIONS………………………………….p8 LIMITED WARRANTY…………………………………….. p10 CARTON CONTENTS……………………………………. p11 .. ASSEMBLY Installing the hook mount assembly………………………. p12 step 1 & 2 Measure to determine the position of the blade…………. p13 step 3 Installation of the front mounting tube and rotation plate.. - Page 3 165-931 Quadrax Q-LOCK Push tube with universal attachement and articulated arm. You must add a 2” receiver hitch on the ATV to install the Q-Lock universal mounting kit. (Not included). Works with all Quadrax plows. Raises the shovel 25 degrees higher than conventional plow systems. The only arm that allows you to load a vehicle (ATV or UTV) equipped with a plow on a trailer or truck.
-
Page 4: Important Notice Before Installation
Important points to check before the installation of the universal Mounting Kit Q-Lock. The Q-Lock universal mounting kit was designed to allow the installation of the Quadrax Plows on most ATV / UTV equipped with an independent rear suspension only. -
Page 5: Dimensions Table
DIMENSIONS TABLE Ground clearance Lenght Ground clearance Lenght Ground clearance Lenght ARTIC CAT CAN-AM POLARIS Mud Pro 1000 14.00 94.50 Commander 800R / XT 11.00 118.30 Sportman XP850 / EPS 12.00 83.25 Mud Pro 700 14.00 86.50 Commander 1000 11.00 118.30 Sportman 550 / EPS 12.00 83.25... -
Page 6: Introduction
INTRODUCTION TO THE PURCHASER This new attachment was carefully designed to give years of dependable service. This manual has been provided to assist in the safe operation and servicing of your attachment. NOTE: All photographs and illustrations in the manual may not necessarily depict the actual models or attachment, but are intended for reference only and are based on the latest product information available at the time of publication. -
Page 7: Safety Precautions
SAFETY PRECAUTIONS Any equipment can cause injury if operated improperly or if the user does not understand how to operate the equipment. Exercise caution at all times, when using any equipment. • Read this owner’s manual carefully and know how to operate •... -
Page 8: Limited Warranty
This warranty gives you specific legal rights and you may also have other rights which vary from province to province. Note: Quadrax reserves the right to change or improve the design of any part or accessory without assuming any obligation to modify any product previously manufactured. -
Page 9: Carton Contents
CARTON CONTENTS FRAME WITH UNIVERSAL ATTACHMENT KIT IMPORTANT: Most elements of the frame are preassembled. Before making the final assembly, check condition of the parts and that the nuts and bolts are tight. PARTS LIST ITEM DESCRIPTION ENG Hook mount & hitch ball assembly Front mounting tube &... -
Page 10: Assembly
Installing the hook mount assembly CAUTION : You must add a 2” receiver hitch on the ATV/UTV to install the Q-Lock universal attachment kit (Not included). List page 29 & 30. Failure to follow this step could cause serious damage to the hitch ball mount or the ATV/UTV. -
Page 11: Measure To Determine The Position Of The Blade
ASSEMBLY Measure to determine the position of the blade Step.3 Measure the distance from the hook mount to the front of the ATV then add 7 inches, keep this measure for step 5. Note: For models equipped with tracks, measure the distance between the hook mount and the end of the track and then add 4 inches. -
Page 12: Installation Of The Push Chanel And Rear Frame
ASSEMBLY Installation of the push chanel and rear frame Step.5 Place push channel (A) over the end of the mounting tube (B) and the rear frame channel (C). Line up the holes as shown in the figure and secure the push channel using four 10 x 110mm bolts (D), eight washers (E) and four nuts (F) then to the rear frame channel using eight 10 x 30mm bolts (G), sixteen washers (E) and height nuts (F). -
Page 13: Secure The Plow Blade Assembly To The Atv
ASSEMBLAGE ASSEMBLY Secure the plow blade assembly to the A Step.7 Move the vehicle over the frame channel. Lift frame channel using the coupling hook handle (A), then slide the two top notches (C) of the coupling hook (B) on the two pins of he hook (D). -
Page 14: Installation Of The Chains Stabilizer
ASSEMBLY Installation of the chains stabilizer Step.9 Attach the chains stabilizer (A) to the upper anchor plate holes (C) using the quick connecting links (B). Position chains in a crisscross pattern as shown. Note: Front snow blade not shown for clarity. Step.10 Install the mounting strap (J) by looping it around the front lower A arms of the vehicle as shown. -
Page 15: Installing Pulley (Continued)
ASSEMBLY ATTENTION : A winch positioned too low on the ATV / UTV will give too low an angle to the cable. Which would pull back the plow instead of lifting it and cause damage to the frame of the plow or ATV / UTV. Installing pulley 165-35120 Step.11 Slide the push tube under and at the center of the vehicle. -
Page 16: To Turn The Plow
ASSEMBLY Installing pulley 165-35120 Step.11 Continued Pull out the winch cable. Attach the hook (B) to the strap (A). Make a bend (C) with the cable above the lifting plate of the plow arm. OPERATION Operation of plow rotation system To turn the plow. -
Page 17: Verifying The Proper Operation Of The Assembly
OPERATION CAUTION : Before using or lifting the plow, remove the receiver pin (A). Failure to follow this step could cause serious damage to the frame of the plow or ATV. Note: Use the receiver pin (A) only if you need to install or remove the frame of the plow from the ATV. -
Page 18: Replacing The Safety Bolt
ASSEMBLAGE MAINTENANCE Replacing the safety bolt. The frame is equipped with a shock absorption system that reduces the risk of damage Safety bolt M6 x 115 that could be caused to the ATV / UTV. If you hit a foreign object or ice, the safety bolt is designed to break upon absorbing impact and the frame to collapses to the ground. -
Page 19: Parts Breakdown
PARTS BREAKDOWN Rotation plate PARTS LI ST I TEM PART NUMBER DESCRI PTI ON 165-1103 An ch or b racket frt frm e t ub e 165-1102 Pivot ab le p low sup port 165-1105 Sprin g 165-1104 Plow st opp er 165-B8437 Hex bolt M10x30 165-B8414... -
Page 20: Articulated Arm
PARTS BREAKDOWN Articulated arm Grease Grease u sin g g raese fit ting # 20 I TEM PART NUMBER DESCRI PTI ON 165-B8498 Grease fit t in g 165-1202A Front t u b e Sp rin g 165-1245 165-B8475 Sp rin g pin 4x28 165-1244 T-h and le 165-B8499... -
Page 21: Chains Stabilizer And Bracket
PARTS BREAKDOWN CHAINS STABILIZER AND BRACKET 165-1250 ITEM PART NUM DESCRIPTION 165-1250 Chains stabilizer & anchorage bracket assembly 165-1237 Chains stabilizer assembly 165-1238 Chains (15 links) 165-1239 A-arm mounting strap 165-1241 Quick connecting link 165-1242 Turnbuckle 165-1251 Chains anchorage brkt upper 165-B8433 Hex bolt M8x25 165-B8454... -
Page 22: Push Channel
PARTS BREAKDOWN PUSH CHANNEL 165-1201A ITEM PART NUM DESCRIPTION 165-1201A Push chanel assembly 165-1201 Push chanel 165-B8437 Hex bolt M10x30 165-B8442 Hex bolt M10x115 165-B8456 Locknut M10 165-B8493 Washer M10... -
Page 23: Impact Frame, Coupling Hook And Mount
PARTS BREAKDOWN IMPACT FRAME, COUPLING HOOK AND MOUNT Loctite... - Page 24 Never use them for the intallation of the Q-Lock blade and mounting kit. Failure to follow this WARNING could cause serious damage to the hitch ball mount or the ATV. You must add a 2” receiver hitch on the ATV to install the Q-Lock universal attachment kit (Not included).
-
Page 25: Pulley Assembly
PARTS BREAKDOWN PULLEY ASSEMBLY I TEM PART NUMBER DESCRI PTI ON 165-35121 St rap 165-35122 Pu lley 165-35123 Sp in dle 165-35124 Sh im 165-35125 Sid e p lat e 165-1233 Sh ackle 165-B8497 Ret ain in g rin g 165-35128 Sid e p lat e w bu sh in g... -
Page 26: Cable Remote Control Kit
165-1000 CABLE REMOTE CONTROL KIT This accessorie is sold separ ately 165-1002A 165-1002B Cable remote kit, is sold separately. This optional accessory is for controlling the locking action of the T-handle pin so as to adjust the angle of the plow blade without leaving the seat of your ATV. ITEM PART NUM DESCRIPTION... - Page 27 PARTS BREAKDOWN 2” RECEIVER HITCH AND HITCH BALL MOUNT These accessories are sold separ ately ITEM PART NUM DESCRIPTION 2" receiver hitch 147-1228 Ball mount 3/4" rise 147-1107 Ball mount 2" drop 147-1109 Ball mount 3"1/4 drop 147-328 Receiver pin and pin clip 147-331 FLIP TIP receiver pin...
-
Page 28: 2" Receiver Hitch And Application List
2” RECEIVER HITCH / APPLICATION LIST Make and model KOLPIN QUADRAX Make and model KOLPIN QUADRAX An./ Year An./ Year CAN-AM BRP POLARIS (continued) Outlander 400, 500, 650, 800 06-11 15-85110 15-1331 356-1183 Sportsman 500 4x4 96-00 15-85100 Renegade 500/800... -
Page 29: Frame Extension Kit
165-12021 FRAME EXTENSION KIT This accessorie is sold separ ately Frame extension kit, is sold separately. This optional accessory, allows you to extend the lengh of the plow frame for 114” to 144”. ITEM PART NUM DESCRIPTION 165-12021A Frame extension 165-B8437 Hex bolt M10x30 165-B8456... -
Page 30: Torque Specification Table
TORQUE SPECIFICATION TABLE Estimated with clamp load as 75% of proof load as specified in ISO 898-1 10.9 12.9 Socket Head Property Cap Screw Class Minimum Tensile M6 - M16: 800 1040 1220 Strength MPa M20 - M30: 830 Nominal Size Bolt Torque Specs in Foot Pounds or (Inch Pounds) Lubed Lubed...
