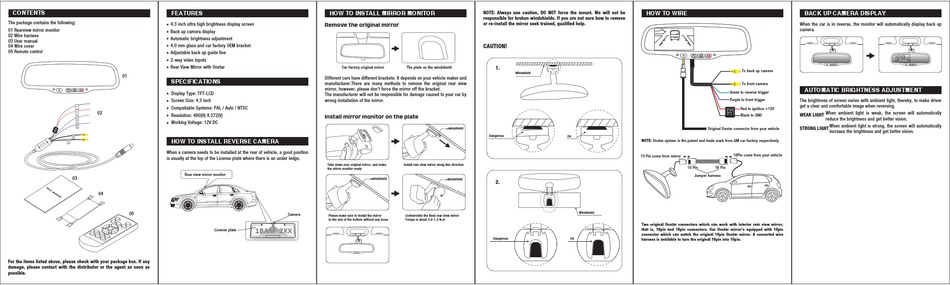

CONTENTS
FEATURES
The package contains the following:
4.3 inch ultra high brightness display screen
01 Rearview mirror monitor
Back up camera display
02 Wire harness
Automatic brightness adjustment
03 User manual
04 Wire cover
4.0 mm glass and car factory OEM bracket
05 Remote control
Adjustable back up guide line
2-way video inputs
Rear View Mirror with Onstar
01
SPECIFICATIONS
Display Type: TFT-LCD
Screen Size: 4.3 inch
Compatiable Systems: PAL / Auto / NTSC
02
Resolution: 480(H) X 272(V)
Working Voltage: 12V DC
HOW TO INSTALL REVERSE CAMERA
When a camera needs to be installed at the rear of vehicle, a good position
is usually at the top of the License plate where there is an under ledge.
Rear view mirror monitor
03
04
05
For the items listed above, please check with your package box. If any
damage, please contact with the distributor or the agent as soon as
possible.
HOW TO INSTALL MIRROR MONITOR
Remove the original mirror
Car factory original mirror
Different cars have different brackets. It depends on your vehicle maker and
manufacturer.There are many methods to remove the original rear view
mirror, however, please don't force the mirror off the bracket.
The manufacturer will not be responsible for damage caused to your car by
wrong installation of the mirror.
Install mirror monitor on the plate
Take down your original mirror, and make
the mirror monitor ready
windshield
Camera
Please make sure to install the mirror
to the end of the bottom without any loose
1BAM 2XX
BAM 2X
License plate
NOTE: Always use caution, DO NOT force the mount. We will not be
responsible for broken windshields. If you are not sure how to remove
or re-install the mirror seek trained, qualified help.
CAUTION!
5
The plate on the windshield
1.
Windshield
windshield
Dangerous
Ok
Install rear view mirror along this direction
windshield
2.
Windshield
Contrarotate the fixed rear view mirror
Torque is about 0.8-1.3 N.m
Dangerous
Ok
HOW TO WIRE
BACK UP CAMERA DISPLAY
When the car is in reverse, the monitor will automatically display back up
camera.
To back up camera
To front camera
AUTOMATIC BRIGHTNESS ADJUSTMENT
Green to reverse trigger
Purple to front trigger
The brightness of screen varies with ambient light, thereby, to make driver
get a clear and comfortable image when reversing.
Red to ignition +12V
FUSE
BOX
WEAK LIGHT
Black to GND
STRONG LIGHT
Original Onstar connector from your vehicle
NOTE: Onstar system is the patent and trade mark from GM car factory respectively.
16Pin come from your vehicle
10 Pin come from mirror
10 Pin
16 Pin
Jumper harness
Two original Onstar connectors which can work with interior rear view mirror,
that is, 10pin and 16pin connectors. Our Onstar mirror's equipped with 10pin
connector which can match the original 10pin Onstar mirror. A converted wire
harness is available to turn the original 16pin into 10pin.
When ambient light is weak, the screen will automatically
reduce the brightness and get better vision.
When ambient light is strong, the screen will automatically
increase the brightness and get better vision.
