Summary of Contents for Kleton MN705

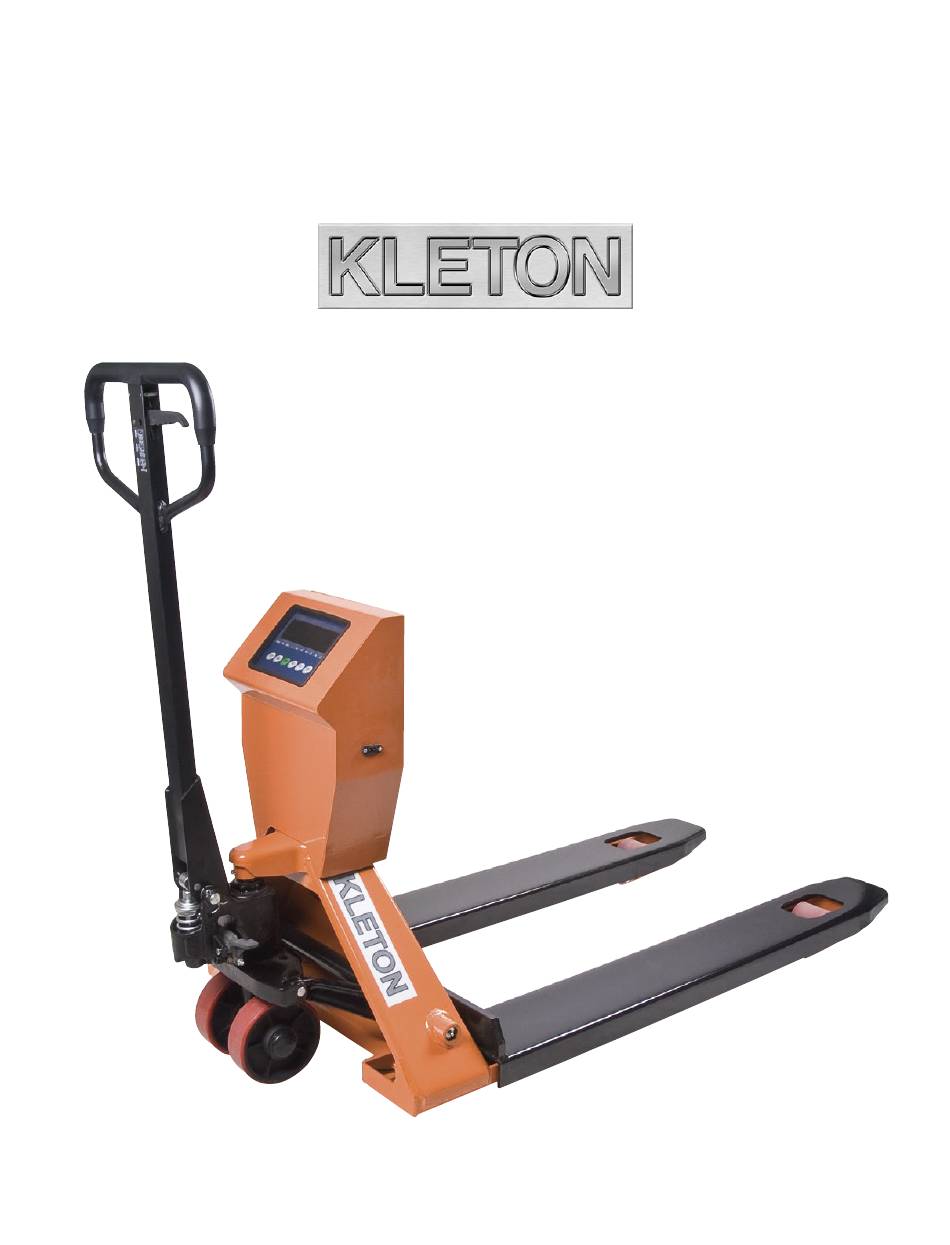

- Page 1 INSTRUCTION MANUAL Model No. MN705 DIGITAL SCALE HYDRAULIC PALLET TRUCK...
-
Page 2: Clamp
WARNING! • Read and understand the entire operator’s manual before using the pallet truck. • Don’t load pallet truck beyond rated capacity of 4,400 lbs. • Secure load before transporting. • Keep the load centered on the pallet. • Don’t operate loaded pallet truck on ramps or inclines. •... -
Page 3: Bolt
Pull down on the handle to release the Feed the chain and nut first back inside tension on the safety pin. CAREFULLY the handle THROUGH the handle pin’s remove the safety pin. center hole. ***IMPORTANT - TIP *** Release the up/down lever to its lowest position to make the process easier. - Page 4 Align the display box with the holes on Connect the two plugs. the base. Screw in the bolts to secure the two parts. Using the screwdriver provided with the pallet truck, tighten the screws on either side of the plugs. Gently push and slide the battery cover to open it.
-
Page 5: Technical Parameters
Then, pump the handle up and down a minimum of 10 times in order to remove any air bubbles in the system. Note: Unless the pump is leaking, you should not have to add any additional oil. Please contact your KLETON distributor if your pallet truck is leaking. -
Page 6: Troubleshooting
TROUBLESHOOTING Possible problems could arise in the operation of your hydraulic pallet truck. Their probable cause(s) and corrective action(s) follow: Condition Probable Causes Corrective Action Oil low in tank Make sure there is no till leakage from valve and add oil. Relief valve not seated properly or air in the See “Cleaning Relief Valve"... -
Page 7: Spring
HYDRAULIC HAND PALLET TRUCK ASSEMBLY AND PARTS LISTS GENERAL ASSEMBLY HANDLE ASSEMBLY STEER WHEEL ASSEMBLY LOAD WHEEL ASSEMBLY STEER WHEEL ASSEMBLY Order No. Description HANDLE Order No. Description MN302 PRESSURE SHAFT SHAFT SPRING PIN MN334 STEER WHEEL PUMP BEARING BOLT HALF RING BEARING WASHER... - Page 8 DIGITAL DISPLAY & PUMP ASSEMBLY DIGITAL DISPLAY BOX ASSEMBLY PUMP ASSEMBLY Order No. Description Order No. Description MO271 DISPLAY FRAME MN603 PUMP ASSEMBLY RUBBER RING PUMP PLUNGER MO798 DIGITAL DISPLAY SPRING CAP CLAMP SPRING BOLT DUST RING MO788 POWER CORD Y-RING BOLT PLUG...
