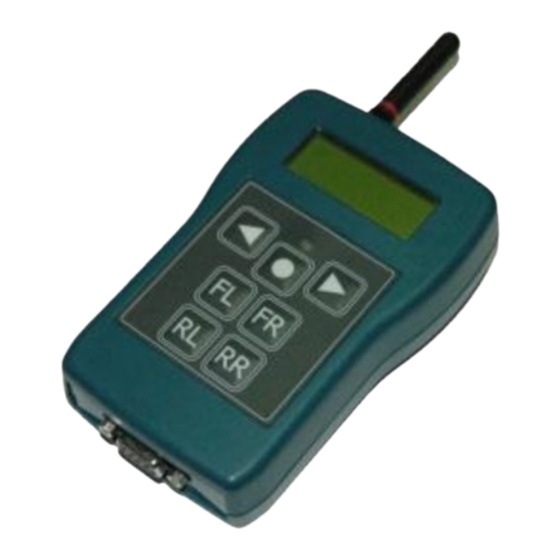

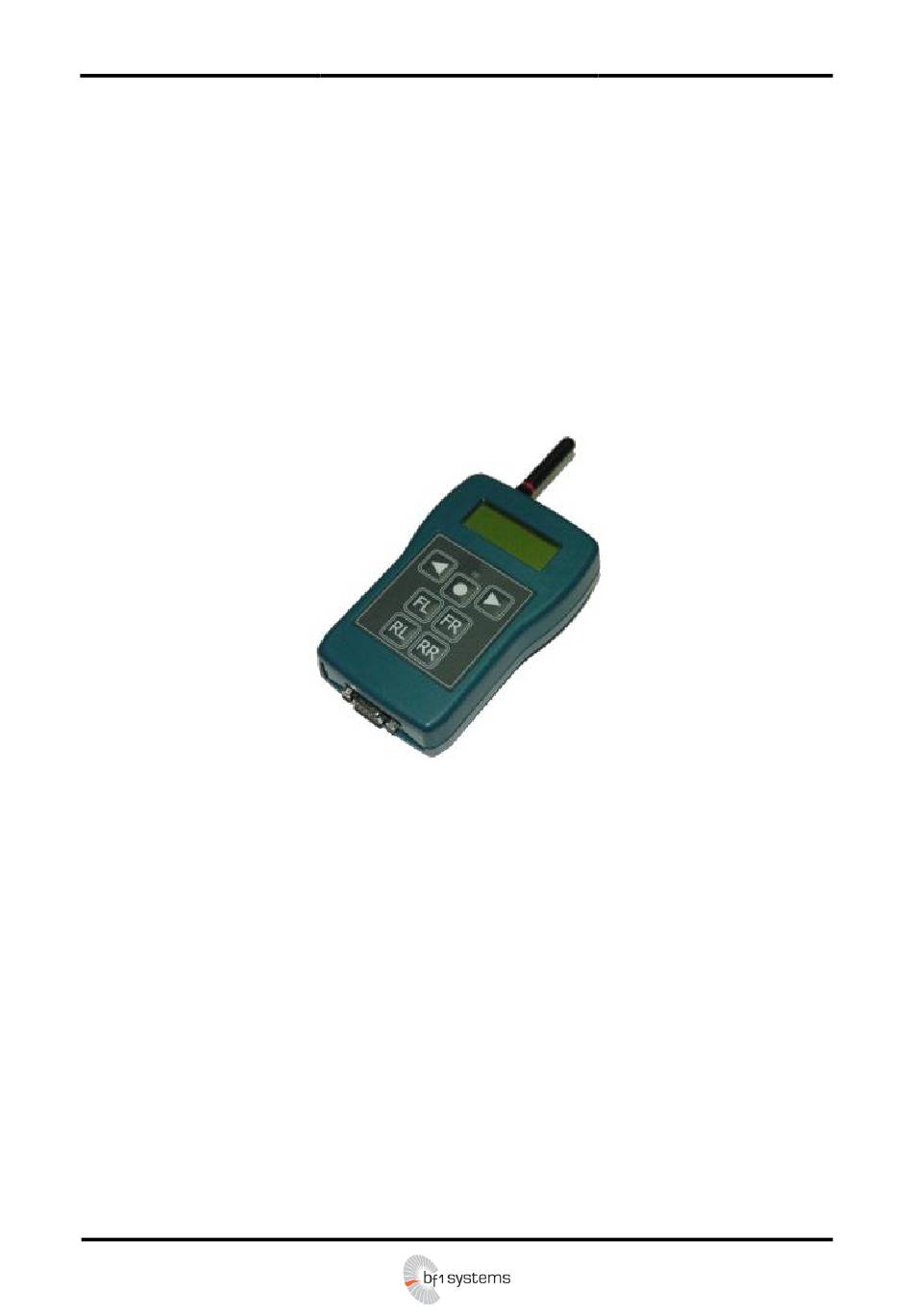

- Page 1 TPMS – Mini Analyser Motorsport Mini Analyser Quick Start Guide - 3.08 V3_08.doc Page 1 of 5 bf1systems Ltd TPMS – Mini Analyser Quick Start Guide F1-100-1451-001 – 433MHz F1-100-1451-002 – 315MHz Version – 3.08 RD096 071112...
-
Page 2: Navigation Keys
TPMS – Mini Analyser Motorsport Mini Analyser Quick Start Guide - 3.08 V3_08.doc Page 2 of 5 1 Analyser Overview – Button Functionality 1.1 Action Key The Action Key is used to select menu options and to scroll through selection items. The Mini Analyser is also powered on and off using the Action Key. - Page 3 2 Permit List Upload Before the Mini Analyser can be used it is a requirement that a permit list be loaded into the unit. bf1systems provide a permit list whenever new wheel electronics are supplied. A permit list is transferred to the Mini Analyser using the PC DigiTyre utility in the same manner for sending permit lists to the TPMS ECU on the car.
- Page 4 3 Setup Channel Config The channel config options page allows the user to configure the Mini Analyser for different generations of bf1systems wheel sensors. Changing this option affects the display pages of the < RF Receive> functions. Pressing the < Ok> button at the < Setup Channel Config>...
- Page 5 TPMS – Mini Analyser Motorsport Mini Analyser Quick Start Guide - 3.08 V3_08.doc Page 5 of 5 4005294 BatOk 110 0.073bar STAT G1 19C A R H M L Tx:All Down 4005294 ID of received sensor BatOk 110 Sensor battery lifetime countdown (it starts at 120 and counts down with each internal process) 0.073bar Uncompensated sensor pressure, bar/psi, gauge/abs set via <Setup Units>...
