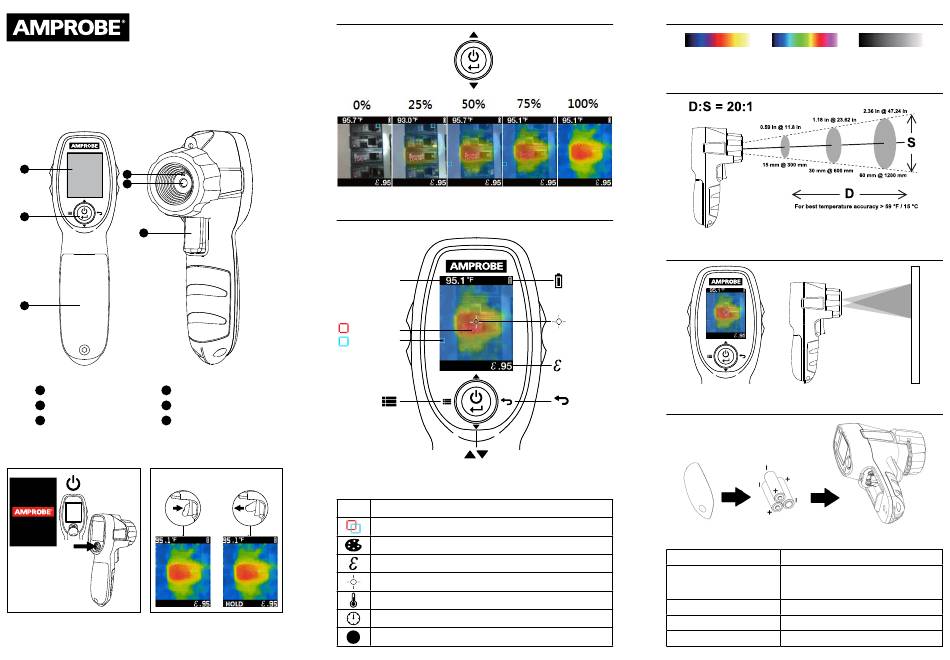

Amprobe IRC-110 Quick Reference Manual

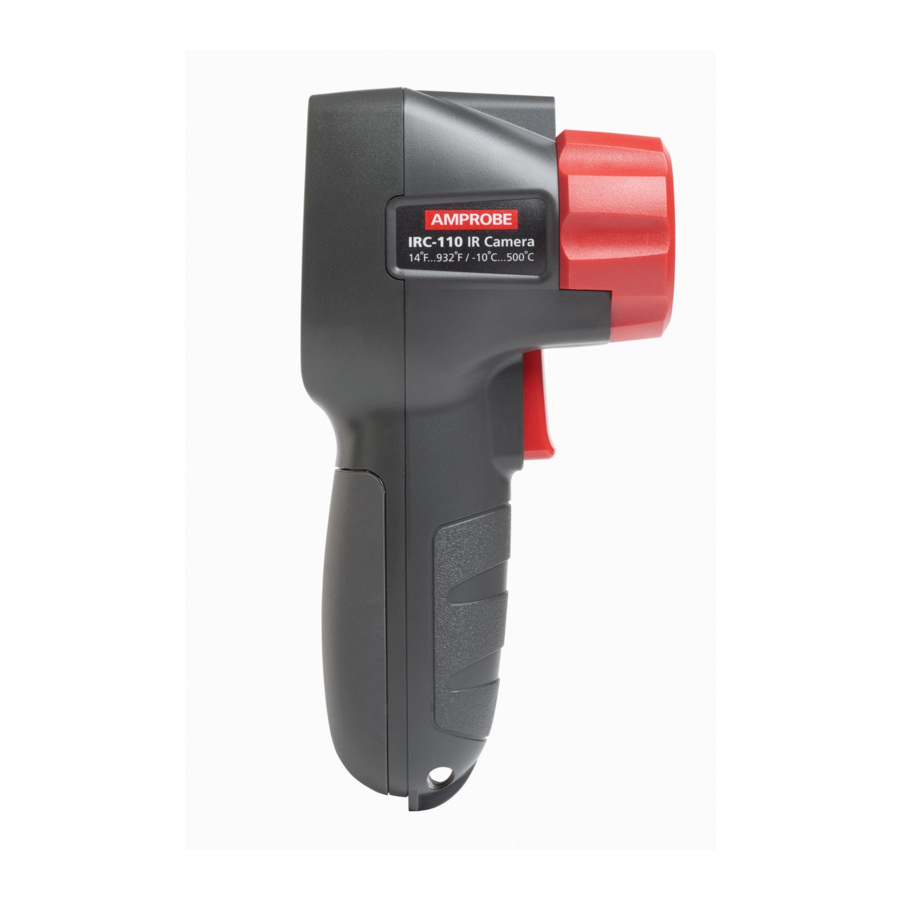

IRC-110 Infrared Camera
Quick Reference Guide
(For more details please see user manual)
1
4
5
2
6
3
1 LC Display 4 Visual camera
Power ON/OFF and Menu Infrared lens
2 5
Battery cover Trigger for image HOLD
3 6
POWER ON AND OFF IMAGE HOLD
SCAN
>2 Sec.
7/2017, 6009719 A
©2017 Amprobe. All rights reserved. Printed in Taiwan
1
IMAGE BLENDING
BASIC NAVIGATION AND MEASUREMENT DISPLAY
Temperature
(Selectable °F / °C units)
Hot marker
Cold marker
Menu
HOLD
Icon Description
Hot and cold markers
Color palette
Emissivity adjustable from 0.10 to 1.00
Center point marker
Selectable temperature units °F and ° C
Auto power off (1m, 2m, 5m and 10m)
i
Firmware version and calibration factory reset mode
v
Please Recycle
Battery level
Center point
marker
Emissivity
Return to
measurement
Image blending (measurement mode)
Setting selection (menu mode)
2
COLOR PALETTE
Hot Iron Rainbow
DISTANCE TO SPOT
VISUAL IMAGE ALIGNMENT / HEAT MAP
BATTERY REPLACEMENT
3 x AA batteries
SPECIFICATIONS
Temperature range 14 °F to 932 °F (-10 °C to 500 °C)
IR accuracy (calibration ≥ 32 °F (≥ 0 °C): ± 4 °F (± 2 °C) or ± 2 %
geometry with ambient of the reading, whichever is greater
temperature 23°C ± 2°C) < 32 °F (< 0 °C): ± 6 °F (± 3 °C)
Distance to spot 20:1
Minimum spot size 8 mm
Field of view 33 ° x 33 °
3
Grayscale
(white hot)
≥ 10 inches
