WARNING: Improper installation, adjustment, alteration, service or maintenance can cause

injury or property damage. Read the installation, operating and maintenance instructions

thoroughly before installing or servicing this equipment.

WARNING: Do not store or use gasoline or other flammable vapors and liquids in the vicinity

of this or any other appliance.

WARNING: A propane cylinder not connected for use shall not be stored in the vicinity of

this or any other appliance.

WARNING: For use with Natural or Propane gas only. NO SOLID FUELS TO BE USED WITH

THIS SYSTEM.

This product can expose you to Chromium, which is known to the state of

California to cause cancer and birth defects or other reproductive harm.

WEBCS-1 09/18

WARNING: FOR OUTDOOR USE ONLY!

FOR YOUR SAFETY

If you smell gas:

1. Shut off gas to appliance.

2. Extinguish any open flame.

3. If odor continues, keep away from appliance and im-

mediately call your gas supplier or fire department.

CALIFORNIA PROPOSITION 65

(For more information, go to: www.p65warnings.ca.gov)

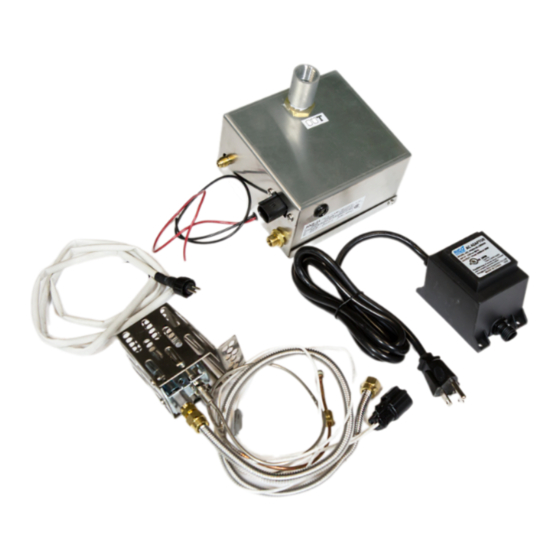

Weather Beater Electronic

Control System

Model: WBECS

Owner's Operation and

Installation Manual

WARNING

Table of Contents

Need help?

Do you have a question about the WBECS and is the answer not in the manual?

Questions and answers

Summary of Contents for Grand Canyon Gas Logs WBECS

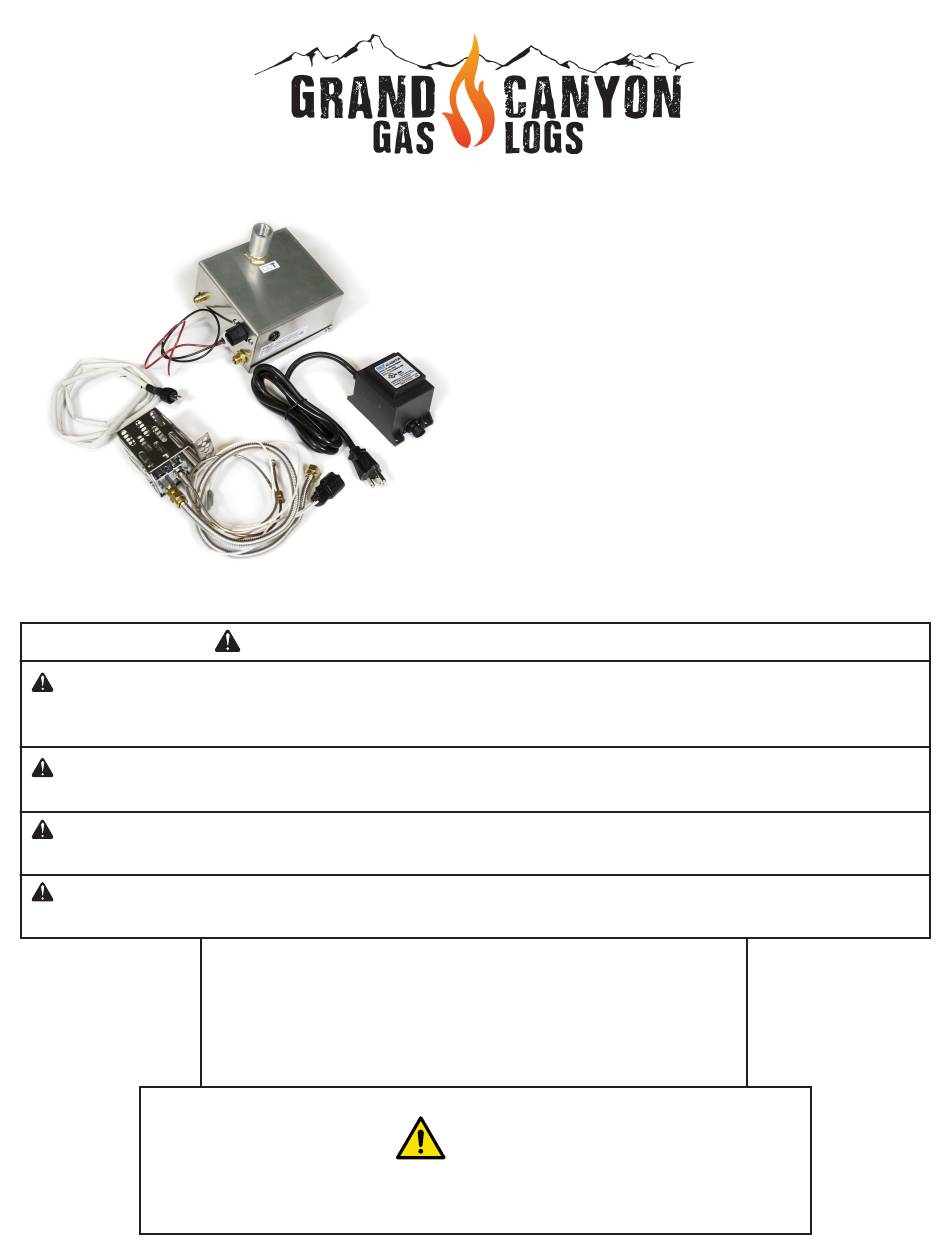

Page 1 Weather Beater Electronic Control System Model: WBECS Owner's Operation and Installation Manual WARNING: FOR OUTDOOR USE ONLY! WARNING: Improper installation, adjustment, alteration, service or maintenance can cause injury or property damage. Read the installation, operating and maintenance instructions thoroughly before installing or servicing this equipment.
Page 2: Table Of Contents
The Weather Beater Electronic Control System utilizes CSA certified components to be added to an outdoor product. Installation must conform with local codes or, in the absence of local codes, with the National Fuel Gas Code, ANSI Z223.1 / NFPA, or International Fuel Gas Code. The appliance, when installed, must be electrically grounded in accordance with local codes or, in the absence of local codes, with the National Electric Code, ANSI/NFPA 70, if applicable.
Page 3: Gas Requirements
WARNING: The Weather Beater Electronic Control System operates on 12 Volts AC power. The WBECS has a red and a black wire protruding from it. These are the power wires. When multiple WBECS are DO NOT attempt to power using 110 Volts AC Power! connected, the polarity between them must be the same.
Page 4 IGNITION CONTROL SPECIFICATIONS AND WIRING DIAGRAM Top, Sides and Bottom Clearances to Combustibles must be maintained in accordance with the Appliance Manufacturer’s Burner Pan specifications and local codes. Pilot Burner Assembly Burner Orifice Minimum 18 sq inches of Cross Ventilation 16 AWG Ignition on Each Side...
Page 5: Product Dimensions
PRODUCT DIMENSIONS Main Outlet 5.125" Top of Box 3.200" Pilot Output Power 5.500" Thermocouple INSTALLATION Pilot Assembly WARNING: Inspect all components before installa- The pilot is configured for natural gas. A propane gas injector tion. If any parts are damaged, contact your supplier. is provided in the kit.
Page 6: Gas Connection
The thermocouple should now be connected. It screws onto the 11/32" brass fitting on the control box closest to the black connector. It should be snug, but do not overtighten. Burner Pilot Assembly Burner Pan WBECS Box Electrical Supply from Transformer Gas Supply Line WEBCS-1 09/18...
Page 7: Proper Venting
PROPER VENTING square inches. Multiple vents totaling 36 square inches may Venting is required to dissipate heat and any residual be incorporated as an alternative. We recommend 4 vents fuel. Failure to provide proper ventilation could result in total to reduce the risk of thermal shutdown. Vents for all in overheating and or explosion.
Page 8: Maintenance
4. Media must be approved by the appliance manufacturer. 5. Large BTU applications (above 150,000 BTU’s) could require a large injector. 6. A heat shield should be applied between the burner pan and WBECS 7. The WBECS has a temperature safety shutoff at 175° F.
Page 9: Troubleshooting
12 volts and think everything is fine electrically, so at the fire feature and use a multimeter to confirm a minimum there must be a problem with the WBECS. The deficiency is of 12 volts when the fire feature is turned on. If there is not not in the volts but rather the amps.
Page 10 TROUBLESHOOTING Sequence of Operation Fault Check Result Action(s) Power ON No Function/No LED Check for 12V at trans- No or low voltage Make sure transformer is powered. If so, former replace transformer. Check for 12V at con- No or low voltage Check wiring for continuity, replace if bro- trol box ken.
Page 11: Parts List & Accessories
PARTS LIST & ACCESSORIES Product No. Description FT-WBECS Weather Beater Electronic Control FT-WBEX24 Weather Beater 24" Pilot Assembly FT-WBEX36 Weather Beater 36" Pilot Assembly FT-3223 Pilot Injector (LP) FT-3225 Pilot Injector (Nat) FT-3239 Pilot Injector (Nat) FT-24TC Thermocouple FT36TC Thermocouple...
