Summary of Contents for Sutter Instrument 148006

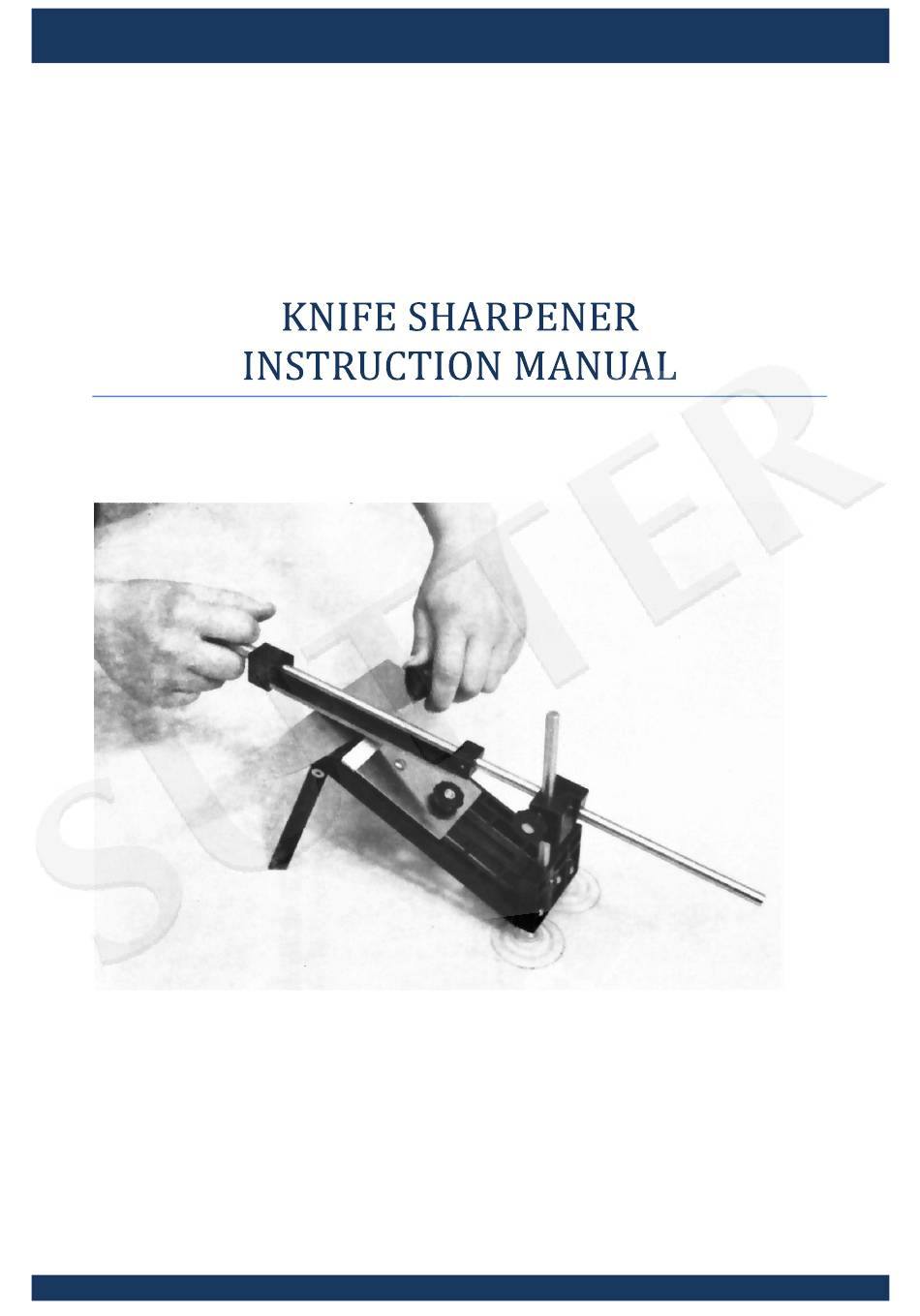

- Page 1 KNIFE SHARPENER www.sutter-gmbh.de Product No.: 148006 Seite 1 Vertrieb durch: SUTTER GmbH, Am Diesenborn 2, 66606 St. Wendel - Tel.: 06856 92023 - Fax: 06856 92025 - eMail: kontakt@sutter-gmbh.de...
- Page 2 KNIFE SHARPENER www.sutter-gmbh.de Product No.: 148006 Seite 2 Vertrieb durch: SUTTER GmbH, Am Diesenborn 2, 66606 St. Wendel - Tel.: 06856 92023 - Fax: 06856 92025 - eMail: kontakt@sutter-gmbh.de...
-
Page 3: Table Of Contents
KNIFE SHARPENER www.sutter-gmbh.de Product No.: 148006 TABLE OF CONTENTS SET UP INSTRUCTIONS ..........................4 SET THE SHARPENING ANGLE ........................5 SE T THE KNIFE GUIDE ..........................7 OPERATING INSTRUCTIONS ........................8 FINISHING THE EDGE-SHARPENING STEELS ..................12 SHORT BLADES............................12 HOLLOW GROUND/SPORT KNIVES ...................... -
Page 4: Set Up Instructions
KNIFE SHARPENER www.sutter-gmbh.de Product No.: 148006 SET UP INSTRUCTIONS (The Parts of the APEX are referred to in CAPITAL LETTERS) 1. Rotate the LEGS out to 90°. Stick the suction cups down dry, onto a smooth, non-porous surface. If they won't stick, wipe them with a moist cloth. Too much water and they will slide around. -
Page 5: Set The Sharpening Angle
KNIFE SHARPENER www.sutter-gmbh.de Product No.: 148006 SET THE SHARPENING ANGLE Set the STONE ARM so that the desired ANGLE INDICATOR MARK is showing just above the PIVOT. A. Basic Method for Setting the Angle B. Exact Method for Setting the Angle 1. - Page 6 KNIFE SHARPENER www.sutter-gmbh.de Product No.: 148006 EXAMPLE 1 – Stone too low STONE removes the ink only at the lop edge of the BEVEL. The STONE is too low. Raise PIVOT and retest. EXAMPLE 2 - Correct STONE removes the ink along most of the BEVEL.
-
Page 7: Set The Knife Guide
KNIFE SHARPENER www.sutter-gmbh.de Product No.: 148006 SET THE KNIFE GUIDE Position the blade so that the narrowest part of the blade is parallel to and just over the end of the BLADE TABLE. Position the GUIDE against the back of the blade and tighten the GUIDE LOCK. -
Page 8: Operating Instructions
KNIFE SHARPENER www.sutter-gmbh.de Product No.: 148006 OPERATING INSTRUCTIONS OVERVIEW of how the machine works: With one hand you move the STONE ARM forward and back. With the other hand, you draw the knife blade under the moving stone, keeping the portion of the edge that you are sharpening parallel to the front of the GUIDE. - Page 9 KNIFE SHARPENER www.sutter-gmbh.de Product No.: 148006 HINT: Larger knifes are easier to hold than small ones, so they are best to learn on. HINT: If the knob comes loose during sharpening, you are probably holding it too tightly. It should just float free in your hand, so that the stone is free to follow the shape of the blade.
- Page 10 KNIFE SHARPENER www.sutter-gmbh.de Product No.: 148006 As the blade moves across the BLADE TABLE, you want the edge to remain parallel to the end of the BLADE TABLE. Seite 10 Vertrieb durch: SUTTER GmbH, Am Diesenborn 2, 66606 St. Wendel - Tel.: 06856 92023 - Fax: 06856 92025 - eMail: kontakt@sutter-gmbh.de...
- Page 11 KNIFE SHARPENER www.sutter-gmbh.de Product No.: 148006 5. Draw the blade across the BLADE TABLE. Make 3 or 4 push and pull strokes starting at the heel of the knife. Stop sharpening. Move the knife 1". Make 3 or 4 strokes. Stop. Move the knife l".
-
Page 12: Finishing The Edge-Sharpening Steels
KNIFE SHARPENER www.sutter-gmbh.de Product No.: 148006 9. Check the edge for a BURR each time you switch sides. The BURR will begin to form in some areas and not others. Concentrate your sharpening in areas with no BURR and pass lightly over the areas that have started to BURR. -
Page 13: Hollow Ground/Sport Knives
KNIFE SHARPENER www.sutter-gmbh.de Product No.: 148006 HOLLOW GROUND/SPORT KNIVES These blades are very stiff, so you can center the blade on the BLADE TABLE and sharpen the entire edge without moving it. Put the GUIDE CLIP on. Rest the blade on the hollow ground portion so the edge rests on the end of the BLADE TABLE. -
Page 14: Sharpening Serrated Edges
KNIFE SHARPENER www.sutter-gmbh.de Product No.: 148006 SHARPENING SERRATED EDGES Only sharpen on the side opposite the serrations (the flat side). Just make a few very light passes, and do not BU RR the points. A little goes a long way.
