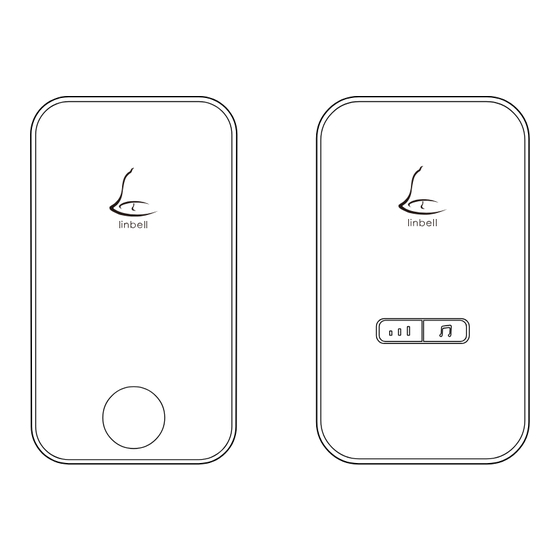

SELF-POWERED WIRELESS DOORBELL G4 USER'S MANUAL
Quick and Easy Setup
STEP 1: Plug the receiver into the socket
The receiver will ring and the instruction lights will flash.
V1.1
A en on : Please place the receiver at least 20 in, above the ground
to maximize signal strength.
STEP 2: Enjoy it
Install the transmitter
Volume key:
Op on 1
If the wall is clean and plat enough, tape is enough for installa on.
Short press to change volume.
There are 5 levels of volume in total
including the 'Mute Mode'
The chosen volume will be stored and
the receiver will keep the volume even
if it is powered off and power on again.
Music key:
paste the 3M double-sided tape
Short to change music. on the back of the transmi er.
16 songs are available.
Op on 2
If the surface of the wall is not good enough, use way 2 for installa on
Attention: The music coded with the
transmitter is set during the course of
coding. When you change the music by
pressing the music key in ordinary time,
the music coded with the transmitter
will not be changed.
90°
Remove the moun ng panel from
the transmi er using screwdriver.
Press the transmitter and the
Remove the transmitter
music will ring and light will
flash with the music.
You can remove the transmi er from the panel when necessary.
Plug the straight screwdriver into the mouth of the transmi er
then turn it 90°,and the transmi er will be separated from
the moun ng panel on the wall.
Install the transmitter
3M 3M
3M 3M
3M 3M
3M 3M
3M 3M
3M 3M
3M
3 M
Paste the other side of the
double-sided tape on the wall.
fix the moun ng Fix the transmi er
panel to the wall. to the panel.
90°
