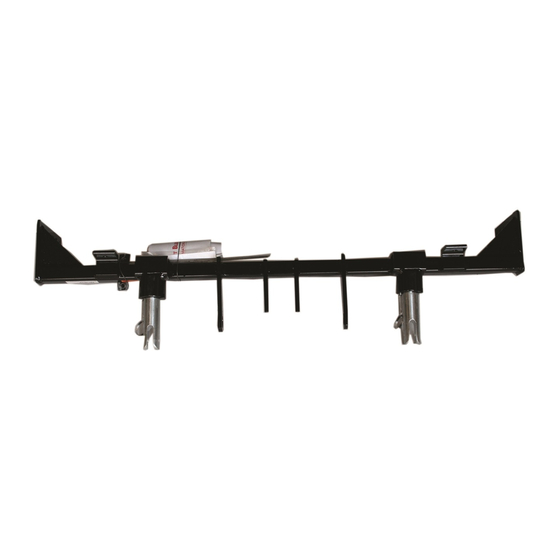

Blue Ox BX1508 Installation Instructions

For 2002-07 buick rendezvous

The front fascia is removed for baseplate installation. Holes need to be drilled. The BX8869 is available

for the vehicle. Attachment Tabs are 24 inches center to center and a height of 13 inches.

1. Using the phillips screw driver, remove the

four screws from front grill.

3. Just behind head light assembly is a wing

bolt to remove.

5. Just behind head light assembly is a

metric bolt to remove with the 6MM

socket, both sides.

Park • Pender, Nebraska 68047 • Phone 402-385-3051 • Fax 402-385-3360 • www.blueox.com

Page 1 of 3

292-5954 Rev. D

BX1508 Installation Instructions

2002-07 Buick Rendezvous

4/8/10

2. On the top of the grill are four push pins to

remove.

4. Lift up retainer clip, pull head light

assembly forward, unplug, and set aside,

both sides.

6. Remove two phillips head screws just

forward of front tire, both sides, and the six

phillips screws from the underside of the

fascia.

Serial No.

Table of Contents

Need help?

Do you have a question about the BX1508 and is the answer not in the manual?

Page 1 6MM fascia. socket, both sides. © 2001, 06, 08, 10 Blue Ox Division, Automatic Equipment Mfg. Co. • One Mill Road, Industrial Park • Pender, Nebraska 68047 • Phone 402-385-3051 • Fax 402-385-3360 • www.blueox.com Page 1 of 3 292-5954 Rev.
Page 2 14. DEALER OR INSTALLER: BE CERTAIN THE USER RECEIVES THE INSTRUCTION SHEET. © 2001, 06, 08, 10 Blue Ox Division, Automatic Equipment Mfg. Co. • One Mill Road, Industrial Park • Pender, Nebraska 68047 • Phone 402-385-3051 • Fax 402-385-3360 • www.blueox.com Page 2 of 3 292-5954 Rev.
Page 3 Base Plate, be sure to use a replacement bolt of the same grade (Usually Grade 5, refer to parts list). Repair parts may be ordered through your nearest Blue Ox dealer or distributor. Failing to follow and/ or altering these installation instructions in either installation or required equipment will void the manufacturer's warranty.
