KMC Controls DISPLAY-7 Installation Manuals

7" touch screen display
Hide thumbs
1
2
3
4
5
6
7
Table of Contents

Advertisement

Quick Links

Download this manual
Contents
Minimum Requirements ................................................1
Select a Location .........................................................1
Initial Setup ................................................................2
Unboxing .............................................................2
Installation ...........................................................3
Prepare the Panel ..................................................3
Install the Mounting Plate .......................................3
Connect the Power ................................................5
Support Documents .....................................................7
Contact Information .....................................................7
Important Notices ........................................................7
KMC Controls, 19476 Industrial Drive, New Paris, IN 46553
. .................... 4
/
877-444-5622
7"
Touch Screen Display

Minimum Requirements

Installation requires the following minimum
hardware and connections:
7" Touch Screen Display (P/N DISPLAY-7)
◆
◆
tablet
Power source
◆
◆
USB-to-Ethernet adapter (for Ethernet
◆
◆
connection)
Mounting plate and hardware
◆
◆
Internet connection (via Wi-Fi or Ethernet
◆
◆
Cat-5 cable)
Information required to complete installation
includes:
The relevant network addresses and
◆
◆
information from the building's IT
department
A list of all points in all controllers that
◆
◆
will be monitored

Select a Location

The 7" Touch Screen Display is designed to be
mounted to the surface of a standard electrical
panel.
Before installing the display:
1. Complete any preparation work to the panel.
2. Make sure there is proper grounding.
/
Fax: 574-831-5252
Installation Guide
/
www.kmccontrols.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DISPLAY-7 and is the answer not in the manual?

Questions and answers

Summary of Contents for KMC Controls DISPLAY-7

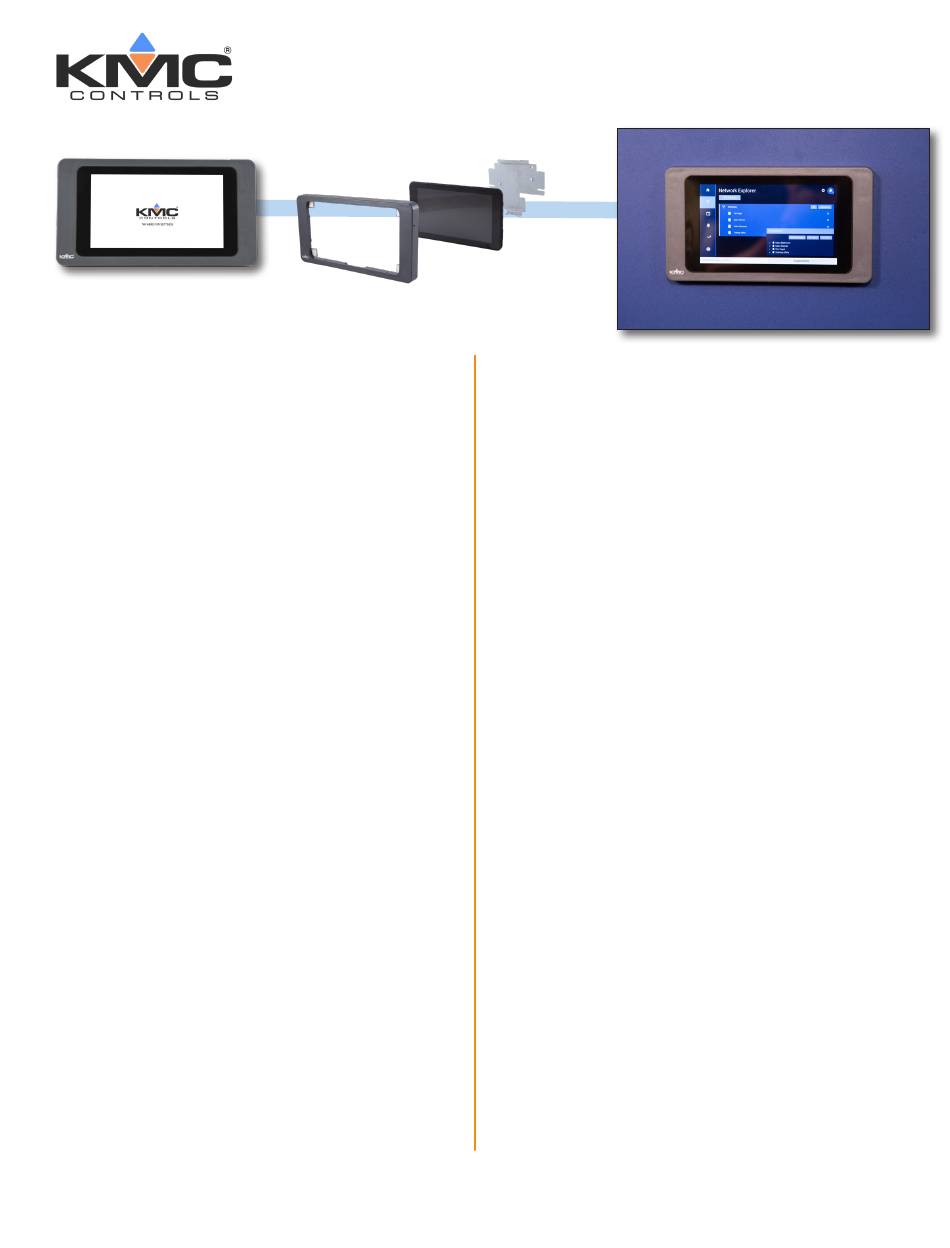

  • Page 1: Installation Guide

    Before installing the display: 1. Complete any preparation work to the panel. 2. Make sure there is proper grounding. KMC Controls, 19476 Industrial Drive, New Paris, IN 46553 877-444-5622 Fax: 574-831-5252 www.kmccontrols.com...

  • Page 2: Initial Setup

    Initial Setup Unboxing 1. Remove the 7" Touch Screen Display tablet from the carton and place it temporarily in a secure area. 2. Verify that the included hardware is present. This includes: (1) USB-to-Ethernet adapter (with micro USB connector cable) (1) One switched-mode power supply (1) Mounting plate and printed template (1) Frame...

  • Page 3: Installation

    INSTALLATION Prepare the Panel 1. Use tape to temporarily attach the mounting template to the desired location on the panel. 2. Drill the holes. 3. Fit the grommet strip along the edge of the 1 inch (26 mm) hole. Install the Mounting Plate Complete the following steps to attach the mounting plate to the panel.

  • Page 4: Mount The Power Suppy To The Panel

    Mount the Power Suppy to the Panel Complete the following steps to mount the power supply to the panel. 1. Align the bracket holes on the power supply with those matching on the back of the mounting plate. 2. Attach the power supply by placing one serrated lock washer onto each of the two (2) 6 mm screws and inserting the assembly through the bracket and the back of the panel.

  • Page 5: Connect The Power

    2. Feed the the micro USB plug and power supply barrel plug through the 1 inch (26 mm) hole in the panel. Connect the Power Complete the following steps to connect the power supply to the power source and tablet. WARNING: You can be killed or seriously injured if you contact live, high-voltage circuits.

  • Page 6: Mount The Tablet Assembly To The Panel

    4. Connect the micro USB plug from the USB-to-Ethernet adapter to the micro USB socket on the right edge of the display. NOTE: KMC Controls recommends setting up the tablet for use before mounting to the panel is completed. Refer to the Quick Start Guide or User Guide for these procedures.

  • Page 7: Support Documents

    KMC Controls, Inc. makes no representations or warranties with respect to this document. In no event shall KMC Controls, Inc. be liable for any damages, direct, or incidental, arising out of or related to the use of this document.
