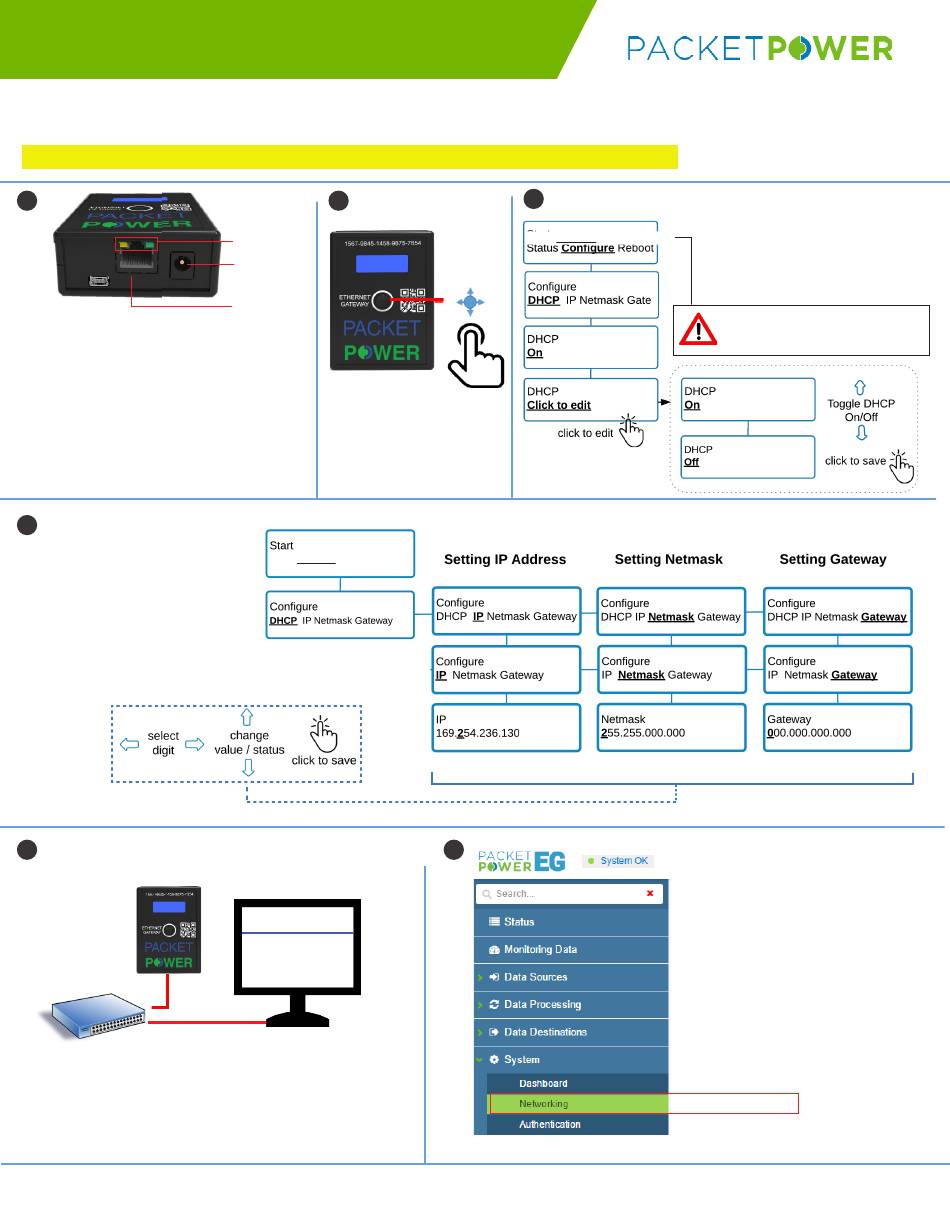

Packet Power Ethernet Gateway V4 Quick Start Manual

Ethernet Gateway V4
Quick Start Guide
This guide provides a summary of how to make the changes needed to allow the Gateway to work on your Ethernet network.
For more detailed instructions see www.packetpower.com/support or email support@packetpower.com
IMPORTANT: GATEWAY MUST BE CONNECTED TO A NETWORK TO ENABLE CONFIGURATION
1
• Insert Ethernet cable into the network port
and connect other end to the network.
• Connect the universal power supply
provided to 5V DC jack to power the
Gateway.
• IMPORTANT: If either of the Network
Status lights is not lit there is no network
connection. A network connection must be
established before proceeding.
SET IP ADDRESS
4
• With DHCP turned off, enter the
IP address, netmask and gateway
addresses.
• A temporary IP address can be
assigned and modified once you
have access to the Gateway.
Modifying and Saving Values
ACCESS GATEWAY CONSOLE
5
SWITCH
• Access the Gateway Console by entering the Gateway's
IP address onto a web browser.
• Make sure the Gateway and browser are connected to an
accessible switch or router.
© 2017 Packet Power LLC
2
NETWORK
STATUS
E4 1.9.2
5V DC
TO SWITCH/
ROUTER
• Navigate the menu using
the joystick; push joystick
to enter a selection.
Status Configure Reboot Shutdown
IP ADDRESS
192.168......
3
Status Configure Reboot Shutdown
6
• Select DHCP addressing
(default) or turn off DHCP if
using a static IP address.
• If using DHCP skip to step 5.
Always use the Reboot or Shutdown
function to restart the Gateway.
Never remove power while active.
• From the left hand menu
select "System" and then the
"Networking" tab.
NETWORKING TAB
EG4 QS V2
