Summary of Contents for Juvent 1000

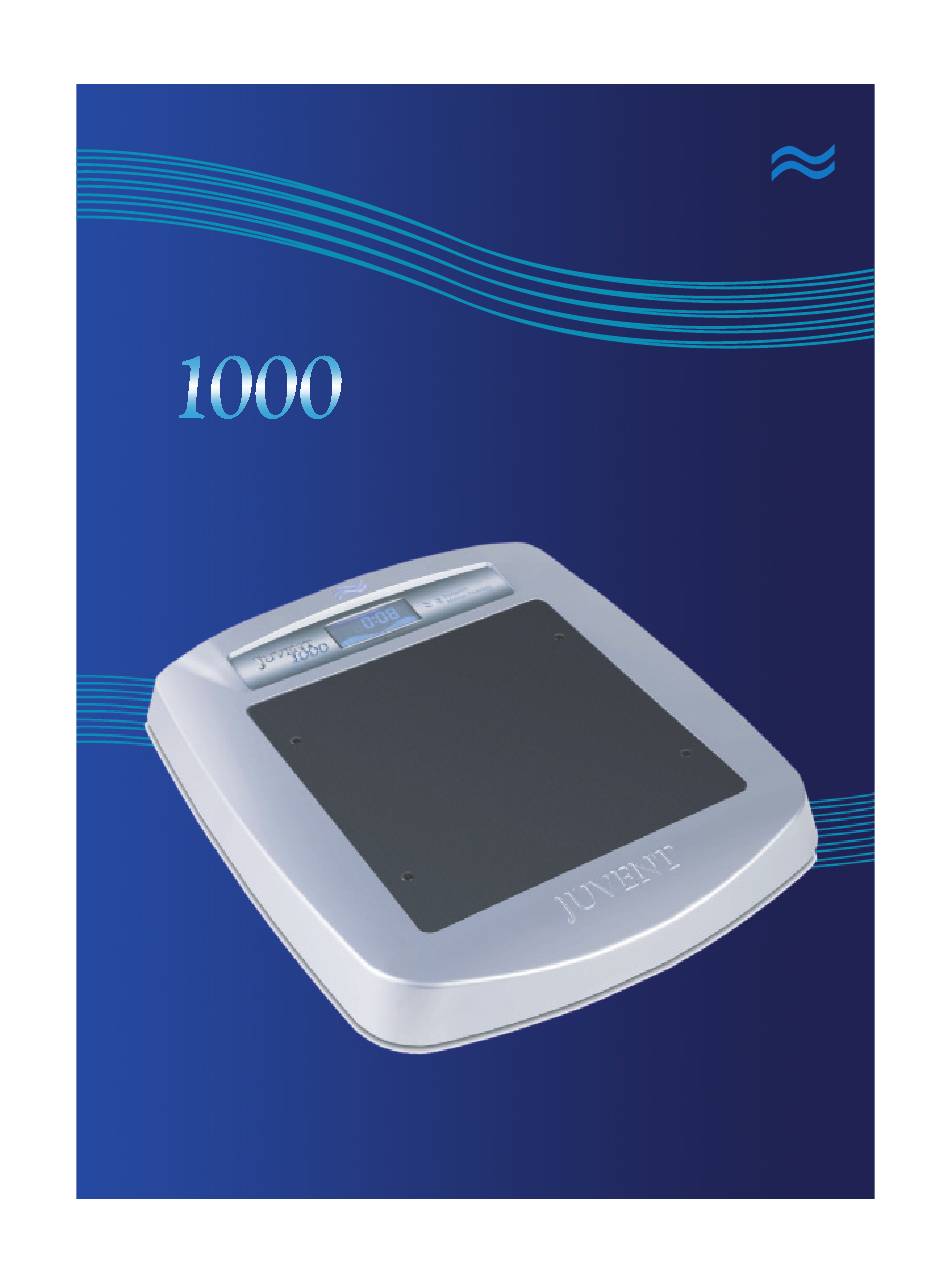

  • Page 1 UVENT Dynamic Motion Therapy UVENT Instruction Manual...

  • Page 2: Table Of Contents

    Table of Contents Juvent Device and RFID Rail Stand Set Up Procedure Symbols Used for the Juvent DMT Platform Precautions Medical Device Warnings and Precautions Indications for Use Medical Device Description Disposing of the Medical Device System Specifications Environmental Conditions That Affect Use...

  • Page 3: Juvent Device And Rfid Rail Stand Set Up Procedure

    Juvent Device and RFID Rail Stand Set Up Procedure Remove the rail stand from the box and assemble it using the following instructions and tools. Authorized Representative Manufactured For: Juvent Ltd. Juvent Inc. Juvent 46 Offington Park 300 Atrium Dr.
  • Page 4 Slide chrome tube up to Screw second hole location. Remove the screw, Slide handle bar onto chrome Chrome Tube tube, and slide tray assembly into chrome tube. Reassemble screw and tighten. SECOND HOLE Juvent 1000 Instruction Manual...
  • Page 5 Slide the hand rail adjust tubes onto the side rails. Snap into first hole. Removed base tube screws. Slide the hand rail assembly into the base tubes. Reassemble the rail mast fitting and reassemble base tube screws. Then tighten. Juvent 1000 Instruction Manual...
  • Page 6 Juvent RFID System Bill of Materials The RFID setup kit contains the following: J100014: Juvent 1000 production plate assembly modified for RFID-controlled use. J200118: Juvent RFID system power supply. J200117: Serial RS-232 male-to-male null-modem cable. J300159: Juvent 1000 RFID system full instruction manual.
  • Page 7 If using a screwdriver, be careful not to overtighten the screws. Figure 2 The Juvent system power supply has two output cords. With the power supply on the floor, only one cord will reach the RFID unit. Plug the longer cord into the RFID unit as shown in Figure 3.
  • Page 8 Affix power supply with two longer Velcro strips. (Figure 6 and 7) Route the power supply cable through the retaining clip as shown. (Figure 8) Figure 6 Figure 7 Figure 8 Juvent 1000 Instruction Manual...
  • Page 9 Connect the free end of the RS-232 cable to the Juvent 1000 device as shown in Figure 9. Tighten the two screws, but do not overtighten. Plug the free end of the power supply cord into the Juvent 1000 as shown in Figure 10.
  • Page 10 Test Operation Stand on the device and place your special Juvent test card over the “Start Treatment” area and verify the following: The red RFID standby indicator went off and the green treatment indicator turned on. The device’s blue LCD lights up.

  • Page 11: Symbols Used For The Juvent Dmt Platform

    Juvent 1000 DMT Platform Symbol Name Description Standby Power has been turned on. Juvent 1000 is in standby mode, and will begin treatment when user steps on the Platform. Calibration Juvent 1000 is calibrating system parameters to the user. Pause Juvent 1000 is in pause mode.

  • Page 12: Precautions

    Precautions There have been no reports of adverse effects with the use of the Juvent 1000 DMT Platform to date. This includes thousands of treatments in children, adolescents, and adult women and men. Juvent, Inc. feels a responsibility to provide as much information as possible to potential users.

  • Page 13: Medical Device Warnings And Precautions

    • There are no user serviceable parts in the Juvent 1000 Dynamic Motion Therapy Platform. If problems arise, see troubleshooting section. • If the Juvent 1000 fails to work, refer to the troubleshooting guide on pages 24 and 25. If the medical device still fails to work, contact your local Juvent distributor.

  • Page 14: Indications For Use

    Medical Device Warnings and Precautions (Cont.) • The Juvent 1000 is a medical device which may require special precautions regarding electromagnetic compatibility (EMC), and must be installed and put into service according to the EMC information provided. • The use of accessories, transducers or cables other than those specified,...

  • Page 15: Medical Device Description

    Medical Device Description The Juvent 1000 Dynamic Motion Therapy Platform Connection Panel RS232 Port Power Connector On/Off Switch – shown in “off” position Treatment Indicator Standby LED Information Display Therapeutic Platform Juvent 1000 Instruction Manual...

  • Page 16: Disposing Of The Medical Device

    (less than 7.5 watts, or less than the power of a nightlight). The Juvent 1000 Platform is made of a rigid aluminum plate for the vibration surface. This surface is covered by a biocompatible mat for comfort. The Platform is enclosed by a two-piece plastic housing module with a built-in handle for easy transport.

  • Page 17: System Specifications

    ~85 µm (0.085 mm) Treatment time 10 minutes daily System Load Normal operating load >35 lbs to 249 lbs (> 15.8 Kg to 113.5 Kg) Maximum operating load 250 lbs (113.6 Kg) Maximum limit, nonoperating 310 lbs (140 Kg) Juvent 1000 Instruction Manual...

  • Page 18: Environmental Conditions That Affect Use

    The Juvent 1000 Dynamic Motion Therapy Platform is a line operated electrical medical device. Do not use the Juvent 1000 in or near water. Doing so can cause injury and/or death. The Juvent 1000 is an electromagnetic medical device which could interfere with or be interfered with by other electromagnetic devices.

  • Page 19: Operating Instructions

    Now remove your card. (Figure 2) Stand up straight and relax without Figure 1 bending your knees. (Figure 3) 4. The Juvent 1000 Platform performs a four-second self-test to make sure that everything is working properly. Figure 2 5.
  • Page 20 Figure 4 Treatment Interruption If you step off the Juvent Platform at any time during the treatment the device will beep once and automatically go into pause mode for twenty seconds. If you stay off the platform for more than twenty seconds, it will automatically shut off.
  • Page 21 8. Treatment duration is continuously monitored and the remaining treatment time is displated on the LCD display. 9. At the end of the 10-minute treatment, the Juvent 1000 will automatically shut off. Step carefully off the device. Juvent 1000 Instruction Manual...
  • Page 22 “off” position. It is also recommended to unplug the Juvent 1000 if it is not going to be used over a long period of time. Juvent 1000 Instruction Manual...

  • Page 23: Care Of The Juvent 1000

    • When not in use, the device should be stored in a dry environment. Storage: 0º C to 45º C (32º F to 118º F). • Do not store the Juvent 1000 in a damp area. Dampness may affect the device.

  • Page 24: Troubleshooting

    2. If there is a device malfunction, there will be a series of three rapid beeps for eight seconds. 3. If the Juvent 1000 Platform fails to work, get off the Platform and turn the main on/off switch “off.” 4. Wait a few seconds and turn it “on” again.
  • Page 25 During the first 12 seconds, the green There is an internal error. Please call STANDBY LED is lit, but unit stops Juvent customer service for additional and displays an error code. help. Unit stops and beeps, timer display This is normal; unit enters PAUSE mode...
  • Page 26 1-2 second vibration. Error code. Floor may be too spongy. Move 5500 code lights up. to a hard, flat surface. If device still does not operate properly, please contact your local Juvent distributor. Juvent 1000 Instruction Manual...

  • Page 27: Fcc Information

    (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Modifications to this device not expressly approved by the manufacturer may void the user’s authority to operate the device. Juvent 1000 Instruction Manual...
  • Page 28 Juvent, Inc. 300 Atrium Drive Somerset, NJ 08854 Phone 1877 209 9600 732 748 0004 www.juvent.com J300159 Rev. C Juvent, Juvent 1000, Juvent Dynamic Motion Therapy, and the symbol are trademarks of Juvent, Inc. Copyright © 2006 Juvent, Inc.
