Framing Supplies PPFE Instructional Manual

12” miter disk sander
Hide thumbs
1
2
3
4
5
6
7
8
9
Table of Contents

Advertisement

Quick Links

Download this manual

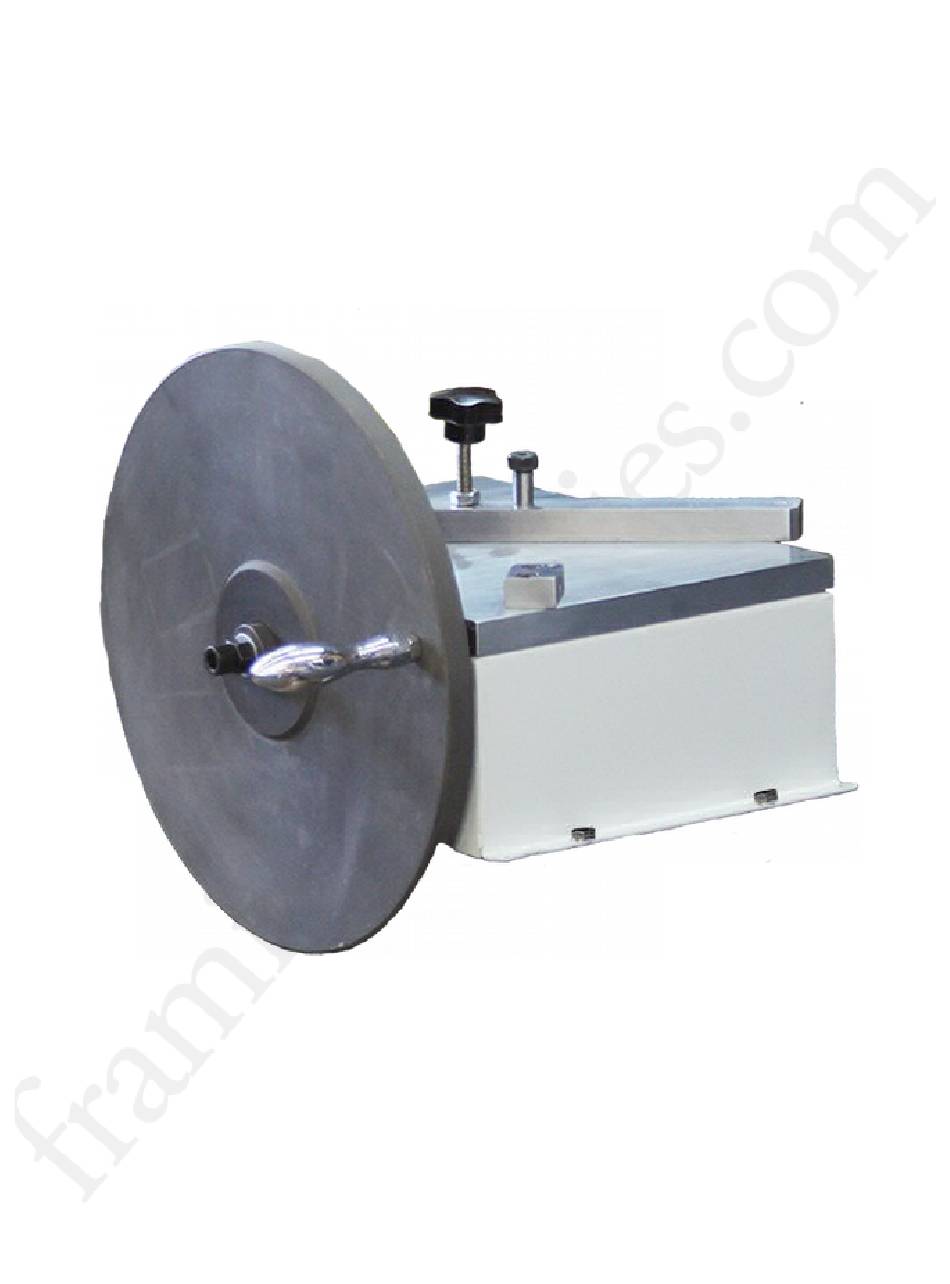

PPFE 12" Miter Disk Sander
Instructional Manual
1
© 2017 framingsupplies.com
All Rights Reserved

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PPFE and is the answer not in the manual?

Questions and answers

Summary of Contents for Framing Supplies PPFE

  • Page 1 PPFE 12” Miter Disk Sander Instructional Manual © 2017 framingsupplies.com All Rights Reserved...

  • Page 2: Set-Up Instructions

    Parts 1. Base 2. Sanding Wheel 3. Guide 4. Guide Axle 5. Guide Handle 6. Bearing Assembly 7. Triangle Set-Up Instructions 1. Bolt the machine to a table or work stand with 4 bolts. For your safety, do not attempt to work with this machine while it is not secured to a table surface.
  • Page 3 3. To place the paper on the disk, remove the paper backing just over half way from the disk. Then, fold the release paper over and hold the paper disk by that side. You can use the side with the paper still attached to align the edge to the disk. When your abrasive paper is aligned with the disk, press on the side of the abrasive paper that has no liner under it.
  • Page 4 © 2017 framingsupplies.com All Rights Reserved...

  • Page 5: Guide Attachment Instructions

    Guide Attachment Instructions 1. With base securely attached to a surface, align the hole closest to the square end with the attachment hole on top of the base. 2. Insert the guide axle and tighten so the guide is secure. 3.

  • Page 6: Adjusting The 45° Angle

    Adjusting the 45° Angle Set the guide on either side and place the 45° triangle so it is completely touching the guide. If there is no gap along the disk surface or along the fence, the angle is exactly 45°. If there is a gap or movement, then you will need to correct the angle.

  • Page 7: Using Your Miter Disk Sander

    Using Your Miter Disk Sander This disk sander is used to “true up” your mitered frame cuts. Now that you have set your angles precisely to 45°, you can perform the following steps to get a perfectly sanded corner. 1. Place the guide against the stop and slide the mitered end of the molding up to the sanding disk surface.
  • Page 8 After sanding that end of your molding, you want to ensure your molding pieces are the same length. Lay the molding side by side and compare the two. If one piece is longer than the other, simply sand a small amount at a time until the two pieces are the same length.

  • Page 9: Cleaning The Disk Surface

    Cleaning the Disk Surface After using the sander, the sandpaper surface can become filled up or “clogged” from sawdust. You should not replace the disk at this point. Use the included cleaning block to “clean” the surface. To do this, simply hold the cleaning block at an angle so just one edge is touching the sandpaper on the disk plate.
