Battery Simulator 1200 Installation Manual Bloomy Energy Systems 8700-00001 V1.1...
Page 2
508.281.8288 BES_info@bloomy.com www.bloomyenergysystems.com Bloomy Energy Systems provides energy storage test and data acquisition products that enable battery, grid storage, and automotive companies to improve quality and reduce time to market. FCC STATEMENT: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules.
Page 3
NOTICE alerts you to practices unrelated to personal injury, such as those that can cause property damage. Failure to follow these instructions can result in property damage. IMPORTANT IMPORTANT indicates additional information about making effective use of this product. Battery Simulator 1200 Installation Manual Bloomy Energy Systems...
1. Introducing the Battery Simulator 1200 The Battery Simulator 1200 provides a safe and efficient method for battery, grid storage, and automotive companies to accurately simulate a broad range of battery pack and cell conditions. The Battery Simulator 1200 provides 12 individually controlled simulated cells and several auxiliary analog and digital I/O channels.
Page 6

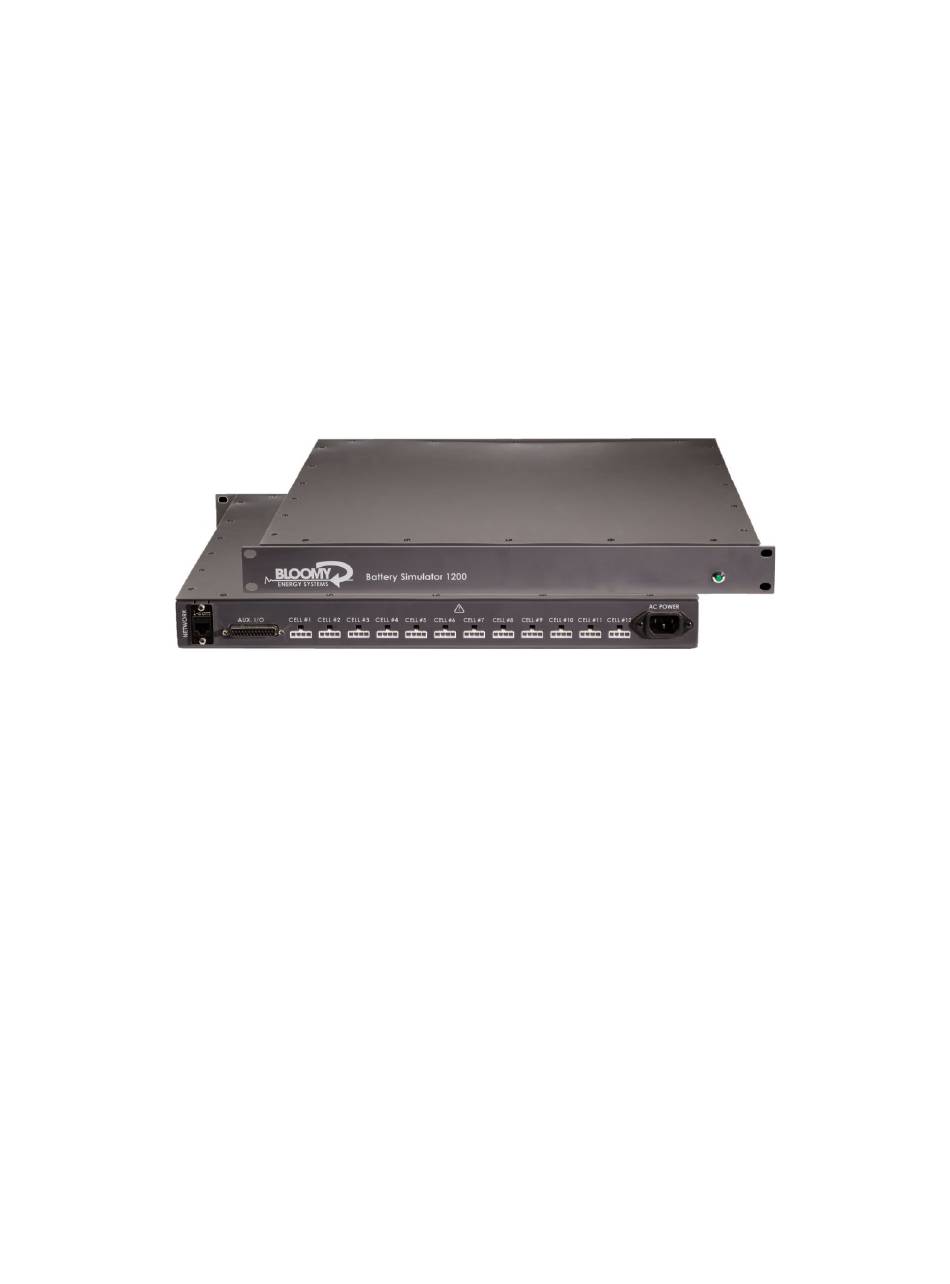

Figure 2: Rear View of Battery Simulator 1200 The outputs of the Battery Simulator 1200 may be connected in series to simulate a pack. This must be done with extreme caution as hazardous voltages can be generated due to the additive nature of the cell outputs.
1. Introducing the Battery Simulator 1200 1.2 Application Example Highly isolated cells provide the flexibility to integrate the Battery Simulator 1200 into many custom system architectures. In the example shown below, two units are stacked above a 680V external power supply to provide an overall pack voltage of 800V.
To install your Battery Simulator 1200, follow the instructions below. 1. Mount the Battery Simulator 1200 in a 19-in. rack. It uses 1U of space. The cooling air flows from left to right when viewed from the front of the unit. You can mount additional units above and below;...
Page 9
Pin 13 CAN+ IMPORTANT • Battery Simulator 1200 does not contain a CAN bus termination resistor. • If needed, add CAN bus termination between the CAN signals at the AUX I/O connector. • Provide a dedicated CAN network for your Battery Simulator 1200s to avoid addressing conflicts.
2.1 Wiring Remote Sense Use remote sensing to regulate the output voltage at the device under test. This feature lets you compensate for the voltage drop in the leads between the Battery Simulator 1200 and the device under test. To set up the remote sensing mode, refer to Figure 3: Wiring Remote Sense and follow these steps: 1.
Number of Channels 8 (single -ended) Resolution .1 mV Max Voltage 5.0 V Analog Output Number of Channels Resolution .1 mV Max Voltage 5.0 V Digital I/O Channels 8 (bidirectional) Logic Level 3.3 V Battery Simulator 1200 Installation Manual Bloomy Energy Systems...
(482.6 mm W x 44.5 mm H x 381.0mm D) Weight 7.5 lb (3.4 kg) Operating Temperature 0 to 35° C Input Power Single phase, 100 - 240 VAC/3A, 50/60 Hz Altitude 9842 ft (3000 m), maximum Pollution Degree PDX1 Bloomy Energy Systems Battery Simulator 1200 Installation Manual...
4. Maintenance 4.1 Cleaning Instructions To clean your Battery Simulator 1200, follow these steps: 1. Power down the unit. Clean with a damp cloth. Battery Simulator 1200 Installation Manual Bloomy Energy Systems...
Page 14
Battery Simulator 1200 Installation Manual Bloomy Energy Systems...
