Oval 4, Oval 6, Oval 10
passive speaker
user manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Oval 4 and is the answer not in the manual?

Questions and answers

Related Manuals for The box Oval 4

Summary of Contents for The box Oval 4

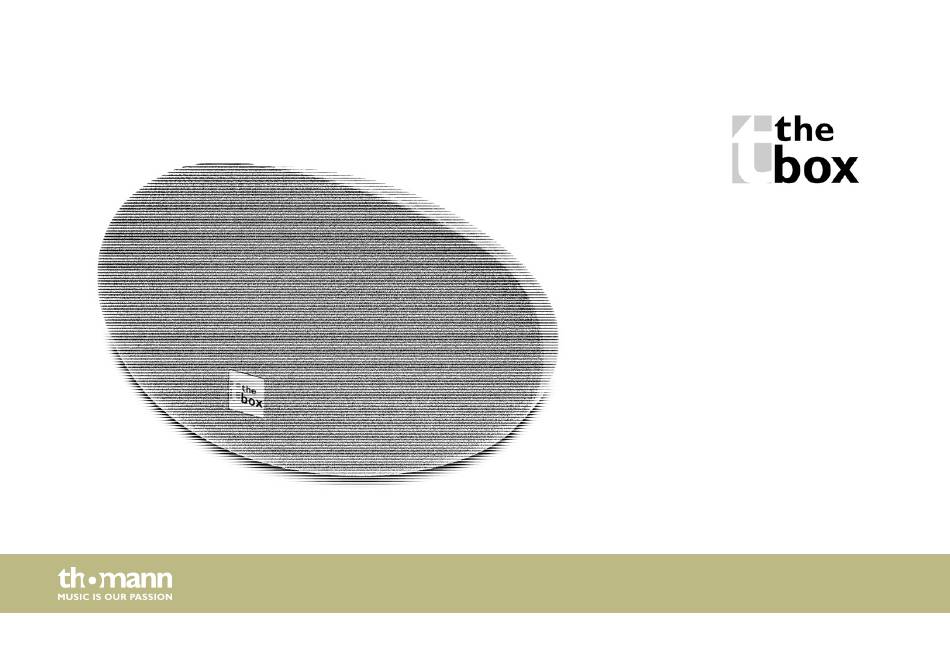

  • Page 1 Oval 4, Oval 6, Oval 10 passive speaker user manual...
  • Page 2 Musikhaus Thomann Thomann GmbH Hans-Thomann-Straße 1 96138 Burgebrach Germany Telephone: +49 (0) 9546 9223-0 E-mail: info@thomann.de Internet: www.thomann.de 11.06.2018, ID: 410109, 410113, 410117, ...

  • Page 3: Table Of Contents

    4.1 Wall mounting........................... 13 4.2 Tips on handling speakers......................14 Technical specifications........................15 5.1 Oval 4 (item no. 410109, 410111, 410112)................15 5.2 Oval 6 (item no. 410113, 410115, 410116)................18 5.3 Oval 10 (item no. 410117, 410118).................... 20 Protecting the environment......................22...

  • Page 4: General Notes

    General notes General notes This manual contains important instructions for the safe operation of the unit. Read and follow the safety instructions and all other instructions. Keep the manual for future reference. Make sure that it is available to all those using the device. If you sell the unit please make sure that the buyer also receives this manual.

  • Page 5: Further Information

    Our online guides provide detailed information on technical basics Online guides and terms. Personal consultation For personal consultation please contact our technical hotline. If you have any problems with the device the customer service will Service gladly assist you. Oval 4, Oval 6, Oval 10...

  • Page 6: Symbols And Signal Words

    General notes 1.2 Symbols and signal words In this section you will find an overview of the meaning of symbols and signal words that are used in this manual. Signal word Meaning DANGER! This combination of symbol and signal word indicates an immediate dangerous situation that will result in death or serious injury if it is not avoided.
  • Page 7 General notes Warning signs Type of danger Warning – danger zone. Oval 4, Oval 6, Oval 10...

  • Page 8: Safety Instructions

    Safety instructions Safety instructions Intended use This device is intended to be used in a sound reinforcement system. Use the device only as described in this user manual. Any other use or use under other operating conditions is consid- ered to be improper and may result in personal injury or property damage. No liability will be assumed for damages resulting from improper use.
  • Page 9 NOTICE! Operating conditions This device has been designed for indoor use only. To prevent damage, never expose the device to any liquid or moisture. Avoid direct sunlight, heavy dirt, and strong vibrations. Oval 4, Oval 6, Oval 10...

  • Page 10: Features

    Features Features Special features of this passive 2 way speaker: Oval 4 (item no. 410109, Speakers: 2 × 1" tweeter, 1 × 4" woofer 410111, 410112) Mounting points: 2 × threaded socket M5 Terminal connections Wall bracket included Housing colour: white Grille colours: black (item no.
  • Page 11 Speakers: 2 × 4" tweeter, 1 × 10" woofer 410117) Mounting points: 2 × threaded socket M8 Terminal connections Wall bracket included Housing colour: white Grille colours: black (item no. 410118), white (item no. 410117) Oval 4, Oval 6, Oval 10...

  • Page 12: Installation

    Installation Installation Unpack and carefully check that there is no transportation damage before using the unit. Keep the equipment packaging. To fully protect the device against vibration, dust and moisture during transportation or storage use the original packaging or your own packaging material suitable for transport or storage, respectively.

  • Page 13: Wall Mounting

    Installation 4.1 Wall mounting The following figure shows how the supplied wall bracket can be used. Oval 4, Oval 6, Oval 10...

  • Page 14: Tips On Handling Speakers

    Installation 4.2 Tips on handling speakers We recommend you to set up the speakers in a way, that the sound signals can reach the audi- ence unobstructedly. It will often be helpful to mount the speakers on tripods. Thus, the sound will be evenly spread with maximum range throughout the audience area.

  • Page 15: Technical Specifications

    Technical specifications Technical specifications 5.1 Oval 4 (item no. 410109, 410111, 410112) Speakers: 2 × 1" tweeter 1 × 4" woofer Power handling 25 W (RMS), 50 W (Music), 100 W (Peak) Impedance 8 Ω Sensitivity 88 dB (1 W @ 1 m)
  • Page 16 Technical specifications Dimensions (W × H × D) 238 mm × 135 mm × 142 mm Weight 2.02 kg passive speaker...
  • Page 17 Technical specifications Frequency response The following figure shows the sound pressure level (1) and impedance (2) as a function of the signal frequency. Oval 4, Oval 6, Oval 10...

  • Page 18: Oval 6 (Item No. 410113, 410115, 410116)

    Technical specifications 5.2 Oval 6 (item no. 410113, 410115, 410116) Speakers: 2 × 3" tweeter 1 × 6" woofer Power handling 80 W (RMS), 160 W (Music), 320 W (Peak) Impedance 8 Ω Sensitivity 88 dB (1 W @ 1 m) Maximum sound pressure 107 dB (1 m) 113 dB (peak)
  • Page 19 Technical specifications Frequency response The following figure shows the sound pressure level (1) and impedance (2) as a function of the signal frequency. Oval 4, Oval 6, Oval 10...

  • Page 20: Oval 10 (Item No. 410117, 410118)

    Technical specifications 5.3 Oval 10 (item no. 410117, 410118) Speakers: 2 × 4" tweeter 1 × 10" woofer Power handling 150 W (RMS), 300 W (Music), 600 W (Peak) Impedance 8 Ω Sensitivity 90 dB (1 W @ 1 m) Maximum sound pressure 111 dB (1 m) 118 dB (peak)
  • Page 21 Technical specifications Frequency response The following figure shows the sound pressure level (1) and impedance (2) as a function of the signal frequency. Oval 4, Oval 6, Oval 10...

  • Page 22: Protecting The Environment

    Protecting the environment Protecting the environment Disposal of the packaging mate- rial For the transport and protective packaging, environmentally friendly materials have been chosen that can be supplied to normal recycling. Ensure that plastic bags, packaging, etc. are properly disposed of. Do not just dispose of these materials with your normal household waste, but make sure that they are collected for recycling.
  • Page 24 Musikhaus Thomann · Hans-Thomann-Straße 1 · 96138 Burgebrach · Germany · www.thomann.de...
