Babies R' Us 3927006 User Manual

Perfect View

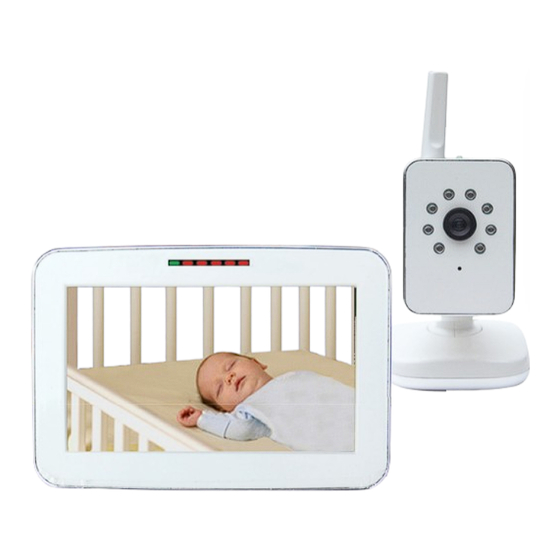

5" Color Video Monitor
User Guide 3927006
• Please read the following instructions and warnings carefully.
• Keep these instructions for future reference.
• Tool needed: Phillips Head Screwdriver (not included).
• Rechargeable battery pack & additional camera(s) (sold separately).
• For use with children from birth and up.
CAUTION!
KEEP SMALL PARTS OUT OF CHILD'S REACH.
Features & Components
Parent Unit (Monitor)
I
A
J
B
D
F
C
G
K
E H
A H
Sound Lights (5 LEDs) Zoom Control Button & Enter
B I
Power On Indicator Video On/Off Button
J
C
5 inch Video Screen Antenna
D K
Power On/Off & Menu Button Speaker
E L
AC Adapter Jack Footrest
F M
Volume +/- Buttons & Menu Up/Down Battery Compartment
(for rechargeable battery,
G
Brightness +/- Buttons
sold separately)
& Menu Left/Right
Security Clips (6)
Wall Anchor Screw AC Adapters (2)
Important Safety Warnings
WARNING!
Strangulation Hazard - Children have STRANGLED
in cords. Keep cords out of reach of children
(more than 3 feet (0.9 m) away).
WARNING!
• Adult assembly is required. Keep small parts away from children.
• This product is not a toy. Do not allow children to play with it.
• This baby monitor is not a substitute for responsible adult supervision.
• Do not place the baby monitor or cord in the crib.
• Keep cords out of reach of children.
• ALWAYS use enclosed Security Clips to help secure cord away from baby's reach.
• Never use extension cords with power adapters.
Only use the power adapters provided.
• Do not cover the baby monitor with a blanket or towel.
• Test the baby monitor and all its functions so that you are familiar
with it prior to actual use.
• Do not use baby monitor near water.
• Do not install the baby monitor near a heat source.
• Only use the chargers and power adapters provided. Do not use other chargers
or power adapters as this may damage the device and battery pack.
• Only insert a battery pack of the same type.
• When the power adapter is plugged into an electrical outlet,
do not touch the exposed end.
• Make sure there is proper ventilation around all baby monitor components.
Do not place on soft surfaces.
Baby Unit (Camera)
Baby Unit (Camera)
N
N
Antenna
O
Nighttime Viewing Lights
O
P
Camera Lens
P
Q
Microphone
L M
R Q
Power On Indicator
S
Pair Button
T
Power On/Off Switch
U
AC Adapter Jack
V
Wall Mount Notch
W
Room Darkening V
Automatic Sensor
Set-up and Use of Parent Unit (Monitor)
DO NOT PLACE UNITS IN CRIB OR MOUNT ON CRIB. KEEP OUT OF REACH OF CHILDREN.
Set-up:
1 Remove protective cling from Parent Unit.
Discard after you remove.
2 Connect AC adapter to the side of Parent Unit.
3 Plug Parent Unit into wall outlet to operate AC power.
4 To turn On, hold down Power On/Off button 3 seconds
until Hello screen disappears. To turn Off, hold down
Power On/Off Button 3 seconds until the Goodbye
screen disappears.
Using your Parent Unit (Monitor):
VOLUME CONTROL BUTTONS
To adjust volume, press up (+)
or down (-). Volume bar will
display on screen. No bars
means Parent Unit is on mute.
BRIGHTNESS CONTROL BUTTONS
To adjust the brightness, press
up (+) or down (-). Brightness
bar will display on screen.
ZOOM CONTROL BUTTON
To zoom in, press the Zoom Control Button. Zoom icon will
display on screen. Press button again to return to normal
viewing. Zoom icon will disappear from screen.
VIDEO ON/OFF BUTTON
Press the Video On/Off Button to shut-off the video screen. Press again to
bring back full video. Please note that video will time out after approximately
2 minutes if on battery power. This function helps to conserve battery life*.
LINK INDICATOR - OUT OF RANGE
If the unit is working and goes out of range, the no-link
icon appears on screen. Move units closer together to
increase signal strength. Low signal is one bar and rises
incrementally as the signal strength increases.
DAY/NIGHT AUTO VIEWING
R
Day/Night Auto Viewing lets you see your baby in a darkened room. For best view
of your baby in a dark room, increase brightness control until desired brightness
is achieved. For best visibility, Camera should be 3 feet away from your baby.
BATTERY INDICATOR*
S
When battery is fully charged, the green battery icon
appears on screen with full bars. As the battery
power lowers, the green bars start to go away. Low
battery power is indicated when no bars appear,
T
which the unit will power off.
U
ANTENNA
To increase signal strength, pull the antenna up.
PLUG INDICATOR
The plug icon indicates that the Parent Unit
is connected to the AC adapter.
W
* Rechargeable battery sold separately.
To order a new rechargeable battery pack, visit WWW.BABIESRUS.COM.
Set-up and Use of Baby Unit (Camera)
Set-up:
1 Connect AC adapter to the back of Baby Unit (Camera).
2 Plug Baby Unit into wall outlet to operate AC power.
Plug in
here
3 To turn On, slide Power On/Off switch to On and Power On
Indicator will illuminate green. To turn Off, slide Power
On/Off switch to Off.
Power
Using your Baby Unit (Camera):
On/Off
IMPORTANT: When choosing locations to set up the Baby Unit
(Camera) follow these guidelines:
Table top Set Up:
• Determine a location for the Baby Unit (Camera)
that will provide the best view of your baby. Place
the Baby Unit (Camera) on a flat surface, such as
a dresser, bureau, or shelf (see diagram).
NEVER place Baby Unit (Camera) or cords
within 3 feet (0.9 m) of the baby's reach.
ALWAYS secure the cord to the wall using the
six (6) security clips included to keep cord
away from baby's reach (see diagram).
WARNING: Strangulation Hazard -
Children have STRANGLED in cords.
Keep cords out of reach of children
(more than 3 feet (0.9 m) away).
Wall Mounting:
Mounting the Baby Unit (Camera) on a wall is similar to mounting a picture
frame. Be sure to test reception and camera positioning before mounting to a wall.
1 Pre-drill a hole in the wall (3/16", 4.8mm, drill bit).
2 Insert the wall anchor into the hole and with a hammer, tap gently
on the end until the wall anchor is flush with the wall.
3 Insert the screw into the wall anchor and tighten screw until only 1/4" (6.2mm)
of the screw is exposed.
4 Insert AC Adapter into the Baby Unit's AC Adapter Jack.
Slide the bottom of the Baby Unit down onto the screw
until the Baby Unit (Camera) is secure to the wall.
5 Plug the AC Adapter into a standard electrical outlet.
6 Secure the cord to the wall using the 6 Security Clips
to keep cord away from baby's reach.
7 To turn On, slide Power On/Off switch to On and
Power On Indicator will illuminate green. To turn Off,
slide Power On/Off switch to Off.
IMPORTANT - CHECK RECEPTION:
The first time you use the monitory system, two adults
should test it in the following way:
• Place Parent Unit at least 20 feet (6 m) away from Baby
Unit (Camera).
• Have an adult speak into Baby Unit at various levels
(soft to loud) while another adult checks Parent Unit for
proper sound and picture reception. Try Parent Unit in
every location that it will be used.
• To adjust the Baby Unit (Camera), hold the base, and with
the other hand, tilt up or down. Baby Unit (Camera) can
rotate left to right, up to 180˚ angle.
Instructions continued on reverse side.
Plug in
here
Power
On/Off
3 feet
Security
Clips
Use for Wall Mount
