Mega Catch Pro 900 PREMIER Replacement Instructions

REPLACEMENT INSTRUCTIONS

ON/OFF SWITCH
Pro 900 PREMIER
Mega-Catch™ Mosquito Traps have a modular design that enables the user to
easily perform maintenance/repairs on the Trap without the costly charges
required to send the Trap to a service centre.
Please refer to the instructions below on how to correctly open the mosquito trap.
ENSURE POWER IS DISCONNECTED
To Open Your Mosquito Trap
Place the Trap on a table or other suitable flat surface ensuring the ON/OFF switch
is facing downwards (Fig 1) remove 6 bolts. Turn Trap over (Fig 2) so that the
ON/OFF switch is now face up and remove 6 bolts.

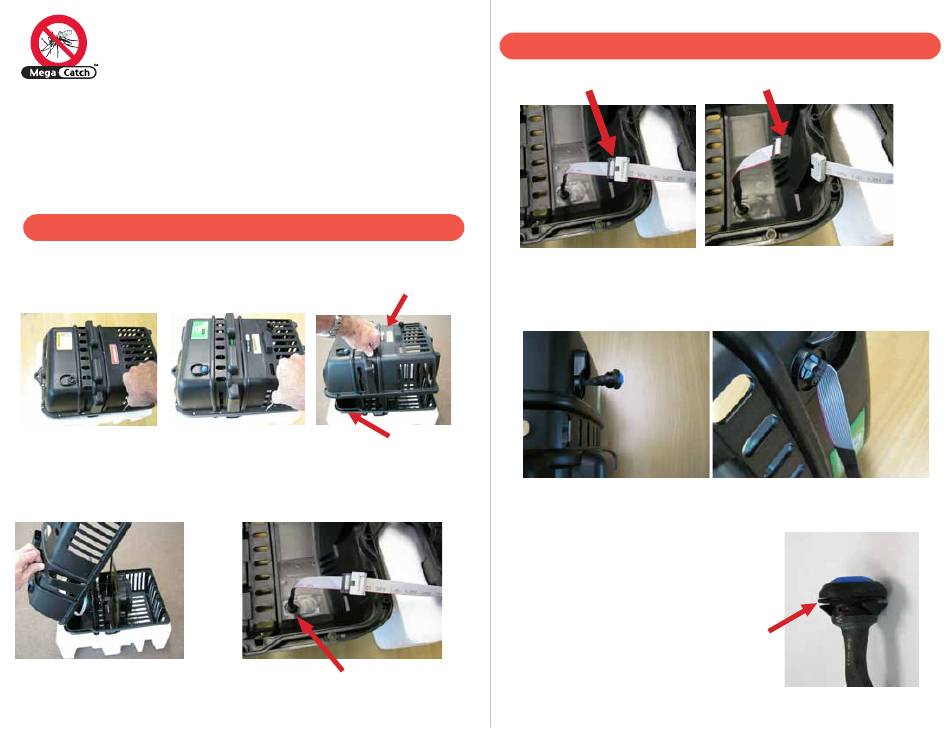

Fig 1
Fig 2
Raise 'Front Half' of Trap (Fig 3) a couple of inches. Then 'flip' the 'Front Half' over
(Fig 4) as if it were hinged at the top. The ON/OFF switch is located in the 'Front
Half' of the Trap as shown (Fig 5).
Fig 4
'Front Half'
Fig 3
'Rear Half'
Fig 5
ON/OFF switch
To Replace the On/Off Switch
Step 1). Disconnect the black/grey ON/OFF switch ribbon connector (Fig 6 &
Fig 7)
Fig 6
Step 2). Remove the On/Off switch through the front of the unit by
exerting pressure on the switch from the inside of trap (Fig 8 & Fig 9).
Fig 8
Step 3). Replacement is the reverse of removal.
Take care when inserting connector and ribbon
cable through front of unit.
Ensure rubber backing washer in place (Fig 10).
Fig 7
Fig 9
Fig 10
