Summary of Contents for Jetson DRIFTER

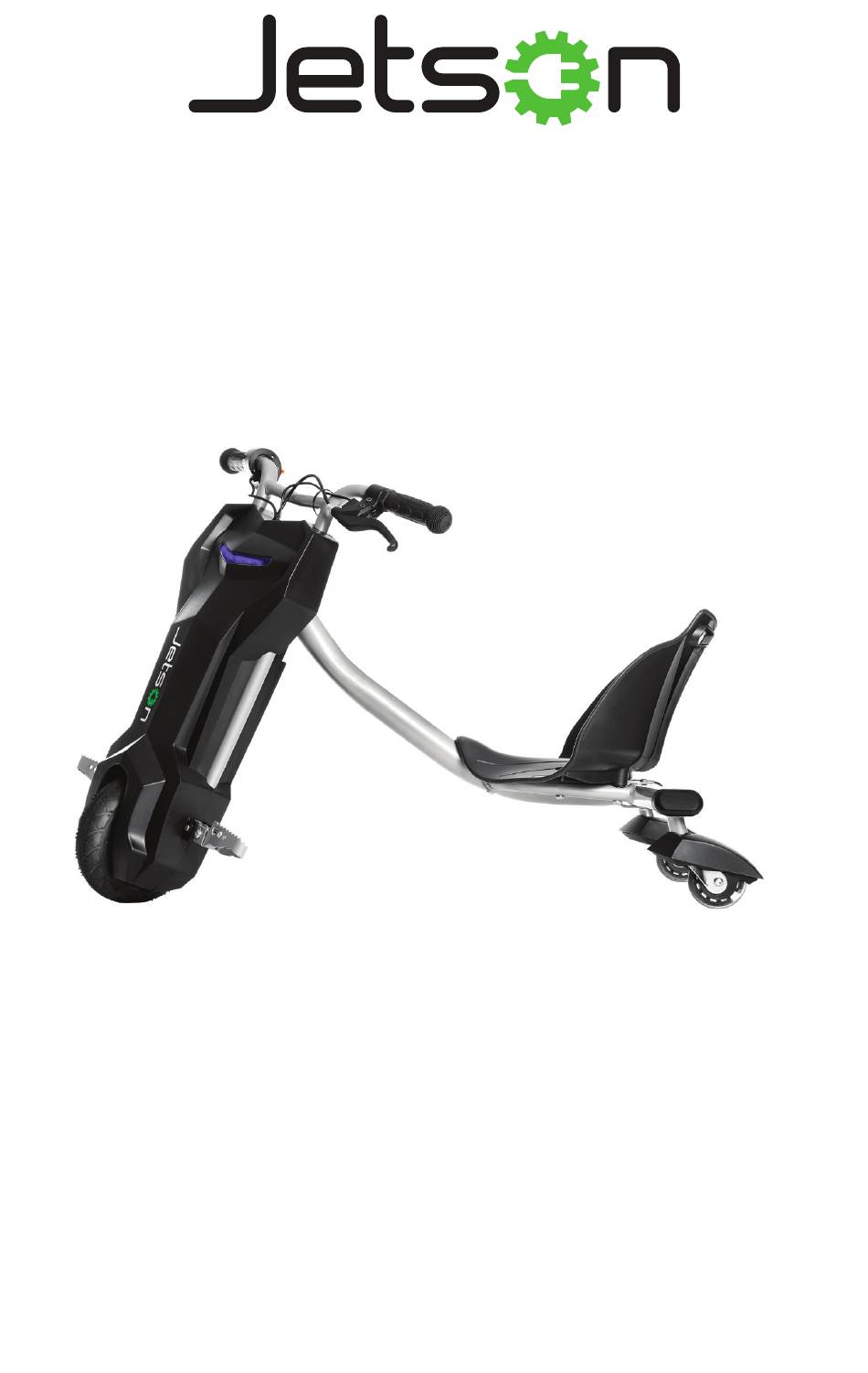

- Page 1 DRIFTER ELECTRIC POWERED 360° RACER -MANUAL-...
-
Page 3: Table Of Contents
TABLE OF CONTENTS Introduction In The Box Features And Specs Assembly Charging the Battery Operating the Drifter Care and Maintenance Safety Warnings Warranty Product Registration... -
Page 4: Introduction
INTRODUCTION Congratulations on your new Jetson Drifter Electric Powered 360° Racer! The Drifter is an innovative and fun electric racer, ready to take on everyday use. Before your first ride, check whether the wheels are damaged, or parts are loose. If there are any abnormalities, please contact Jetson Customer Support at 1-(888) 976-9904 or email us at customerservice@jetsonbike.com. -
Page 5: In The Box
IN THE BOX Included in the box: • Drifter (some assembly required) • 1x Large Screw • Manual • 2x Medium Screws • Charger • 4x Small Screws • Charging Cable • Allen Wrench 1. Front Wheel 7. Seat 2. Foot Rests 8. -
Page 6: Features And Specs
1. Brake 2. Brake Lever Adjuster 3. Speed Mode Switch 4. Throttle Button 5. Stem Tube FEATURES AND SPECS MODEL: DRIFTER MOTOR: 120W WHEEL SIZE: FRONT: 8” CHARGER: UL AC110-240V REAR: 3” CHARGE TIME: 2-3 HOURS MAX SPEED: 6 MPH PRODUCT WEIGHT: 24.6 LBS... -
Page 7: Assembly
ASSEMBLY Step One: Attach the Back Wheels to the bottom of the Fork and tighten into place using the provided Allen Wrench. Then, insert the Stem into the Fork and attach using the two Medium Screws. Make sure the bolts and the screws are tight and secure. - Page 8 Step Two: Insert the Stem Tube into the back of the Base. Properly align the holes in the Stem Tube with the holes in the back of the Base. Secure the two pieces together using the Large Screw. Attach the Stem Tube Step Three: Align the holes in the Seat with the holes in the Frame and attach using the four Small Screws.
-
Page 9: Charging The Battery
Drifter. Before your first ride you must fully charge the Drifter - charge for 4 hours for the first 3 times you use it. For every ride after, charge your Drifter until it is fully charged, and NOT LONGER. -
Page 10: Operating The Drifter
TURNING THE DRIFTER ON AND OFF To turn the Drifter on, flip the Power Switch located on the left side of the Drifter below the Stem Tube to “I” or on. To turn the Drifter off, first make sure the Drifter is not in motion. Then, flip the Power Switch to “O”... - Page 11 UNFOLDING THE FOOT RESTS Push the Foot Rests down. When riding, the Foot Rests should always be down with both feet on the Foot Rests. START RIDING Place both hands on the Handlebar, choose the Speed Mode (Speed 1 is slower than Speed 2), and press the Throttle Button. Speed Mode Switch Throttle...
- Page 12 STOPPING THE DRIFTER To stop, release the Throttle Button and apply the Brake until the Drifter comes to a complete stop. Apply Brake ADJUSTING THE BRAKE To adjust the brake cable tension, turn the Brake Lever Adjuster in or out a quarter to half turn, until the desired brake adjustment is attained.
-
Page 13: Care And Maintenance
CARE AND MAINTENANCE DRIVING RANGE The average range of the Drifter is 8 miles. However, a lot of factors will affect how far you can go per charge: • Driving surface: A smooth, flat surface will increase driving distance. • Weight: More weight means less distance. -
Page 14: Safety Warnings
• Do not ride after drinking or taking prescription medication. • Do not carry items when riding. • Prior to each ride, inspect each part of the Drifter to ensure it has been maintained correctly and is functioning properly. • Always give way to pedestrians. - Page 15 ADDITIONAL OPERATION CAUTIONS Do not lift the Drifter off the ground while it is on and the wheels are in motion. This can result in freely spinning wheels, which may cause injury to yourself or others nearby. Do not jump on or off the Drifter, and do not jump while using it.
-
Page 16: Warranty
• Jetson® makes no warranty with respect to products or trade accessories not made by Jetson®, including, but not limited to, motors, tires, wheels, and batteries, such products or trade accessories, such items being subject to the original manufacturer’s warranty, if any. -
Page 17: Product Registration
For myself For my child For my grandchild Gift for someone else (adult) Gift for someone else (child) How did you hear about the Drifter? ______________________________________________ _____________________________________________________________________________________ Complete this form and mail it to: Attention: Product Registration Jetson Electric Bikes... - Page 20 DRIFTER ELECTRIC POWERED 360° RACER...
