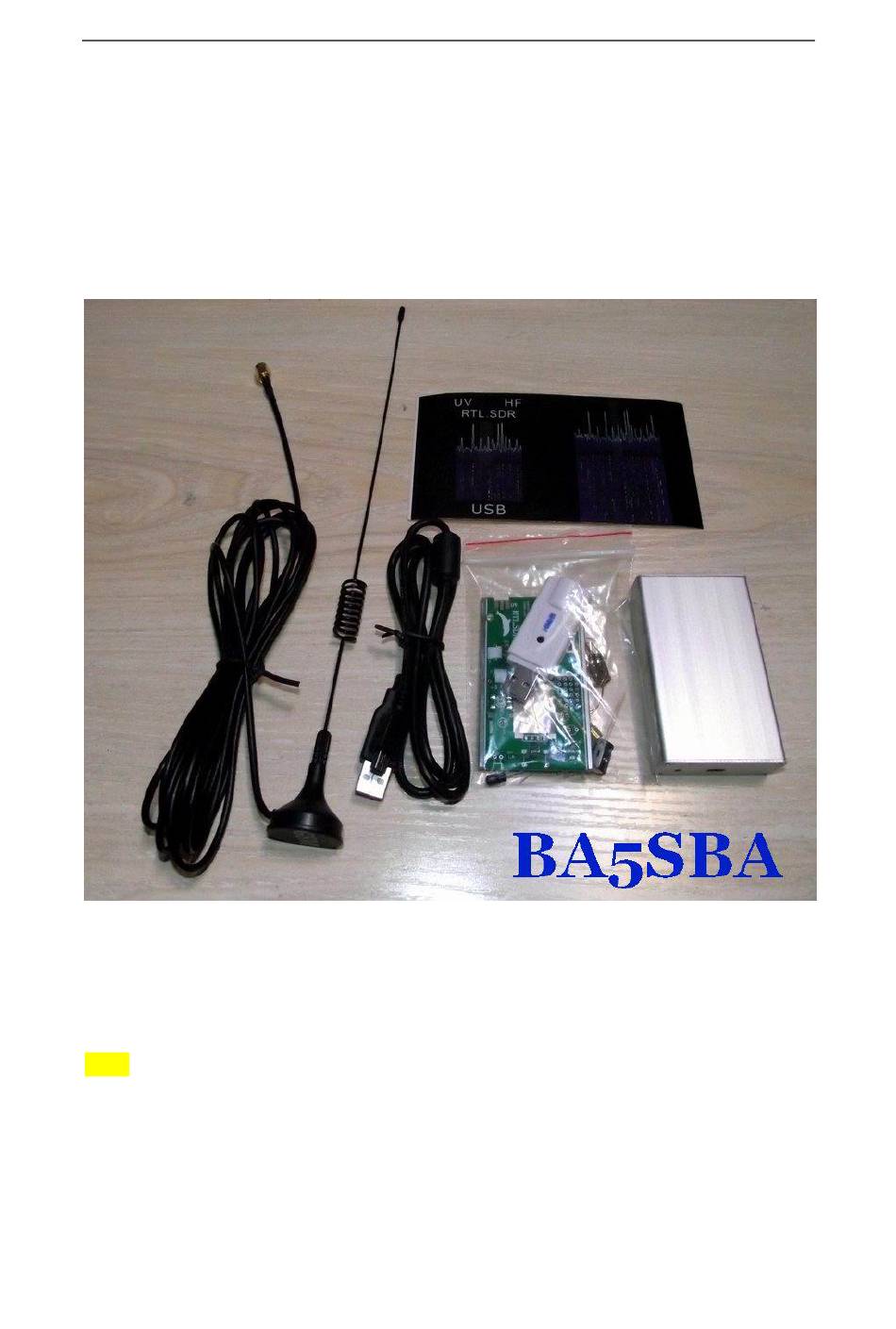

- Page 1 RTL.SDR DIY KITs Installation instructions V2.01 Note the installation instructions apply only provided by the shop KITs. The note is not applicable to pirated KITs. BA5SBA ba5sba@163.com...
- Page 2 SMD components all 0805 package have welding is PCB, please check whether there is leakage solder and cold solder joint.
- Page 3 SMA interface and miniUSB interface. Note that, on the back of the SMA interface also to welding, fixed pin USB interface to welding firm...
- Page 4 LED. Note, the long foot is LED positive. P jumper circuit board inside is arranged to the active antenna for the power supply, connected to the position, the red LED light, through the power output of the 5V to the antenna interface, power supply in active antenna amplifier.
- Page 5 Do not reverse the welding. Note that the polarity of the capacitor refer to the above picture check. After welding, cut off the excess part, take good care of cut pins, later...
- Page 6 Note that the polarity of the capacitor refer to the above picture check. inductance coil winding and installation. Pictured above is provided KITs enameled wire, please open it tidy.
- Page 7 Finishing a good。 Please find a diameter of 3 mm of objects, such as the drill, screwdriver, here are using a 3mm drill bit.。...
- Page 8 Envelope with paint in the 3mm drill bit, around 11 turns. Cut off excess.
- Page 9 Installation position of the coil, provides the enameled wire can be directly welded enameled wire. production of RF impedance of transformer. Please find the ferrite bead and three color enameled wire.
- Page 10 On the magnetic ring to wear around 9 turns with tricolor enameled wire. Cut off the excess, take good care of the excess part, will also use. The color of enameled wire to separate, pay attention to the head and tail...
- Page 11 The tail section of the yellow line head and red lines are connected together.
- Page 12 In the PCB board welding position reference above. 8； decomposition of DVB-T Dongle Stick。...
- Page 13 Note that you must protect the middle PCB,...
- Page 14 The circuit board is removed to the circuit board is embedded into the kits of the. Reliable welding solder red circles part.
- Page 15 Reliable welding solder red circles part. Note do not leak welding red arrow part with capacitor pin retention of various welding wire jumper。...
- Page 16 ba5sba@163.com...
- Page 17 1 inch with the rest of the three color enameled wire, and then in the end of tin. Welded to the RTL2832 pins 4 and 5.
- Page 18 You may need a magnifying glass observation and operation.
- Page 19 ba5sba@163.com...
- Page 20 ba5sba@163.com...
- Page 21 QUICK START GUIDE This page is a guide aimed at helping anyone set up a cheap radio scanner based on the RTL-SDR software defined radio as fast as possible on a Windows system. http://www.rtl-sdr.com/rtl-sdr-quick-start-guide/ SDRSharp Guide A good guide to learning how to use SDRSharp and what all the options do can be found here.
- Page 22 HF band needs to meet the HF Antennas such as Long Wire, Random Wire, Dipole etc.. To have a good effect need matching antenna. How to set the Gain The gain can be adjusted in SDR# by clicking on the Configure button which looks like a cog.
