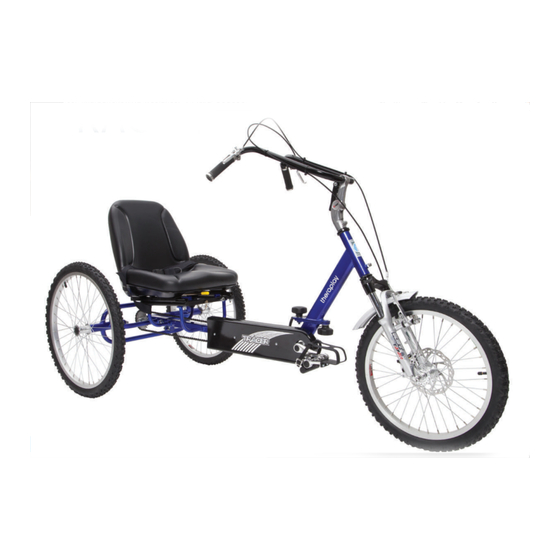

Theraplay Tracer User Manual

Maintenance
Our products are designed to require the minimum of
maintenance. However the following maintenance procedures will
help to ensure the safe and e icient operation of
the tricycle.
1) HAND BRAKES
Squirt a few drops of oil on pivot and hand lever. Do not wax or oil
rim. Always ensure that your brake blocks are free from oil or
grease and regularly check them for wear. If brake blocks are worn
they should be replaced. When fitting new brake blocks, ensure
that they are the right way up (narrow edge to the top of the rim
nearest to the tyre). Apply the brakes and position the blocks so
that they hit the rim squarely and tighten.
2) CONTROL CABLES
Remove cable from the casing and grease inner cable. Replace
worn or damaged cables. Do not kink cables. Cables stretch with
use, so regular adjustment is necessary.
3) BEARING ADJUSTMENTS
Head bearings – keep tight and well greased. The
steering/handlebars must turn freely without any side to side play.
Bottom
Bracket bearings are a sealed unit.
4) PEDALS
Each pedal had a di erent thread. Forcing the wrong pedal into the
wrong crank will destroy the threads in the crank arm. To
prevent this error, insert the "L" marked pedal into the le crank
arm and the "R" into the right. Then tighten securely with a
wrench/spanner.
NOTE: Le and Right are determined from the riding position on
the tricycle. Pedal sandals, if fitted, should be tightened against
pedals using the brackets and nuts. The brackets fit to the
underside of the pedals and they should be securely tightened
in place.
5) CHAIN
It is recommended that a 3 in 1 or similar oil is used to lubricate
the chain. Ensure that the chain is properly tensioned. If there is
more than ¼" slack in the middle of the chain then it needs
tensioned. Please refer to assembly instructions point 6.
6) HANDLEBARS
Ensure that the handlebars and handlebar stem are secured
tightly. It is dangerous to ride a tricycle if either is not
properly secured.
Guarantee
Theraplay Ltd guarantees this frame to be free of defects in material and workmanship from the date of original
purchase for a period of 2 years. Our obligation under this guarantee is limited to repair or replacement of any part
or entire unit at our option, provided that it has been properly maintained and has not been tampered with or
repaired by unauthorised individuals. The guarantee does not cover normal wear and tear, cost of inconvenience,
property damage, abuse, accident or similar incidents.
Under these terms, Theraplay Ltd will bear the cost of replacement parts and labour charges, provided reasonable
evidence is supplied that the product was purchased within 24 months prior to the claim. The return of nay
equipment must have prior authorisation and a return shipping and re-delivery charge of £60.00 will be made. Call
or write for instructions.
By o ering this guarantee, Theraplay Ltd in no way seeks to diminish a consumer's statutory rights.
7) TYRES
Check tyres for proper inflation pressure as indicated on the
sidewall. If the tyre is worn or the inner tube is punctured, repairs
can
be made to the rear wheels without removing the wheel from the
axle. The front wheel will need to be removed from the front fork to
access tyre and tube replacement.
8) ADJUSTABLE STEERING STOP
Ensure that this adjusted to suit the riders ability.
MAINTENANCE INTERVALS
Keep all painted parts cleaned and waxed for a long lasting lustre.
BI_WEEKLY
• Spray all chrome parts with a protective spray
• Lubricate the following: Pivot bolt on brake lever
Top of bolt on caliper brake
Inside bearing on both pedals
Chain – turn pedal crank and spray freely
Axle drive cog
• Check tyre pressure
• Check for loose bolts
• Crank Arms
3-6 MONTHS
• Check tyres for wear
• Check wheel alignment for loose spokes
• Check brakes for adjustment, worn cables and worn
brake blocks
• Clean and adjust all bearings and cones
• Check chain for adjustment and grime
• Check for loose bolts and nuts
• Check Freewheel axle for excessive side-to-side movement
WARNING! Like any mechanical device, a tricycle and its
components are subject to wear and stress. Di erent materials and
mechanisms wear or fatigue at di erent rates and have di erent
life cycles. If a component's life cycle is exceeded, the components
can suddenly fail, causing potential injury. Scratches, cracks and
discolouration are signs of stress-caused fatigue and indicate that
a part is at the end of its useful life and needs to be replaced.
TRACER
User Manual
Congratulations
You have made an excellent investment in your child's health and happiness. Our tricycles o er valuable exercise
and therapy by providing cardiovascular fitness and increased muscle strength.
The following instruction will give you advice on the adjustments and maintenance procedures to enable you to
keep your tricycle in the best possible condition. We do, however, recommend that a regular service is carried out
by your appointed dealer or a reputable local bicycle shop. The small cost will help to ensure rider safety and long
life of the tricycle.
Please keep this manual in a safe place for future reference.
