Blue Ox BX8833 Installation Instructions

1. If the tow bar has existing mounting brackets
installed, remove them and save the bolts for the
adapter installation. If a replacement bolt is needed
use a 1/2" x 3-1/4" grade 5 bolt with a lock nut.

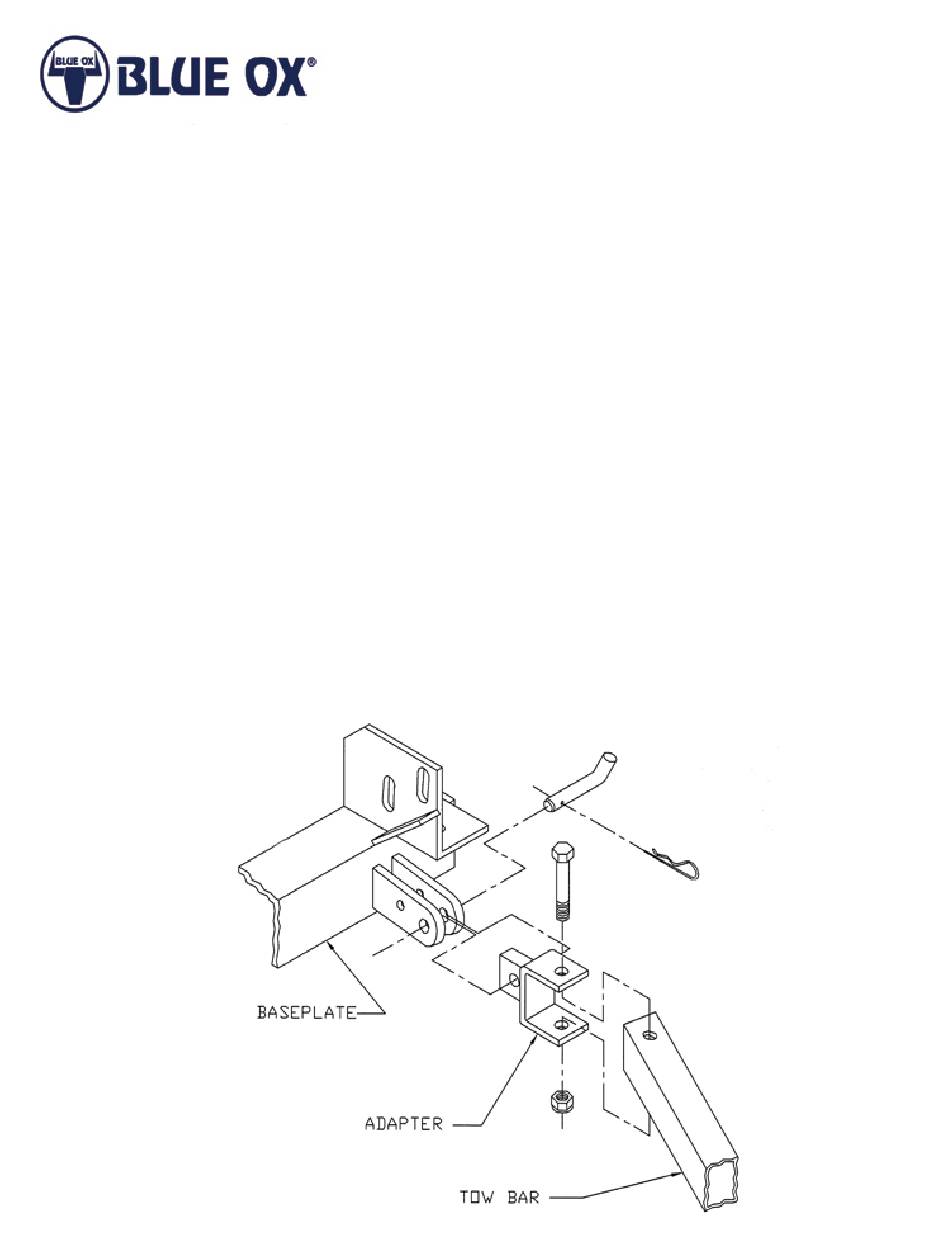

2. Refer to the drawing below when installing adapter
kit.
3. Attach the adapter to the tow bar using two bolts
and lock nuts provided with the tow bar.
DO NOT TIGHTEN AT THIS TIME.
4. Attach the tow bar adapters to the baseplate
attachment tabs using the pins with clips included
in the baseplate kit.
5. Align the tow bar so that it is straight, then tighten
all bolts snugly on the adapters.
6. Do not over tighten to the point that the bolts
become weak, strip or break.
292-0993
Tow Bar Adapter
BX8833

Installation Instructions

Part #

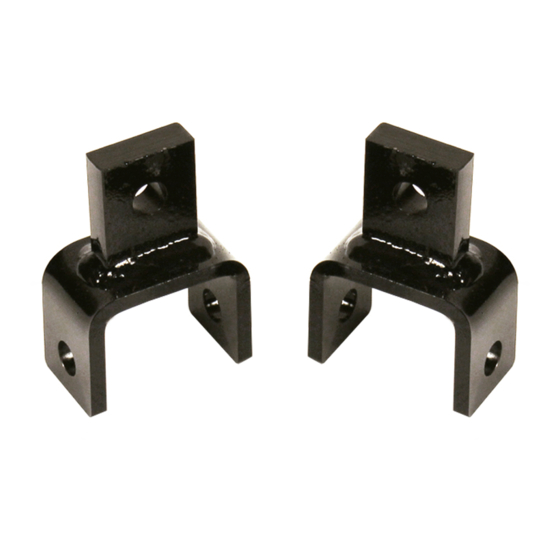

61-3426 ...........2 ................. Weldment, Tow Bar Adapter
USE ONLY GENUINE FACTORY REPLACEMENT PARTS.
Do NOT substitute homemade or non-typical parts. This may
cause your triple lug to fail and result in injury or death. If repairs
of parts or components of your triple lug are needed, you may
order them through your nearest Blue Ox
call our 24/7 Customer Care Team at (402) 385-3051 or toll free at
Page 1 of 2

Parts List

Qty.

WARNING:

®
dealer or distributor, or
®
(800)228-9289.
Description
6/21/12
