LAMILUX CI-System Lichtkuppel F100
Montageanleitung

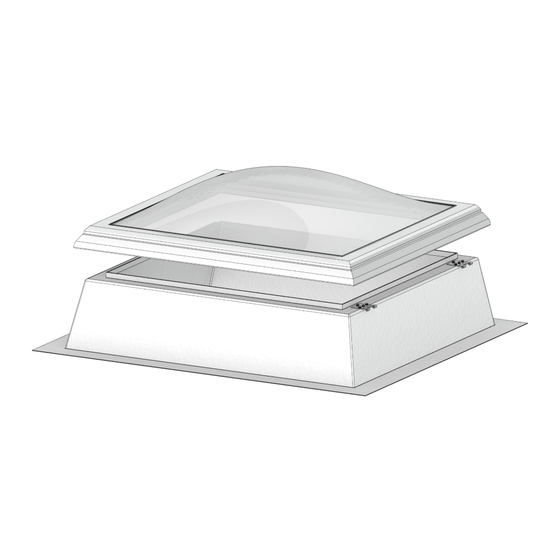

CI System Rooflight Dome F100
Assembly instruction
Stand: April 2018
Customized
Intelligence
Dem Kunden dienen als Programm

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the F100 and is the answer not in the manual?

Questions and answers

Summary of Contents for LAMILUX F100

  • Page 1 LAMILUX CI-System Lichtkuppel F100 Montageanleitung CI System Rooflight Dome F100 Assembly instruction Stand: April 2018 Customized Intelligence Dem Kunden dienen als Programm...
  • Page 2: Customized

    Erfahrungen. Rechtliche Ansprüche können daraus nicht abgeleitet werden. LAMILUX behält sich Änderungen der technischen Angaben vor. Alle Arbeiten sind nach den anerkannten Regeln der Technik, den Vorschriften und Richtlinien von Be- hörden, Berufsgenossenschaften, Unfallverhütungsvorschriften und Fachverbänden der Bundesrepublik Deutschland, der Europäischen Union und des Bestimmungslandes auszuführen.
  • Page 3 Im Allgemeinen gelten die Baukörpertoleranzen welche auf unserer Homepage zum Downloaden zur Verfü- gung stehen. (www.lamilux.de/downloads) Check and prepare for mounting and installation In general, the building tolerances apply which can be found on our homepage. (www.lamilux.de/downloads) Lichtkuppel F100 Montageanleitung...
  • Page 4: Table Of Contents

    Inhaltsverzeichnis Table of Contents Diese Montageanleitung ist nach der Reihenfolge der Montageschritte aufgebaut. This installation manual is structured according to the sequence of assembly steps. Transport | Montage 6 - 7 transport | assembly Bauanschluss 8 - 9 structural attachment Lüftbar verriegelt (Blattfederverschluss) 10 - 11 ventilated locked (laminated spring lock)
  • Page 5 04/2018 Kettenschubmotor "Typ KSA" 24 - 25 chain drive "type KSA" Kettenschubmotor "Typ Ne-Ka" 26 - 27 chain drive "type Ne-Ka" Anschlusspläne Elektromotoren 28 - 29 wiring diagrams of electric drives Notizen notes Kontakte contacts Lichtkuppel F100 Montageanleitung...
  • Page 6: Transport | Montage

    Transport | Montage transport | assembly Lichtkuppelelemente werden in der Regel komplett vormontiert auf ihrem Auf- satzkranz angeliefert. Das Gesamtelement ist auf einer Holzpalette befestigt. Rooflight domes are usually delivered completely pre-assembled on its upstand. The overall element is mounted on a wooden pallet. Bei getrenntem Transport von Oberteil und Aufsatzkranz müssen die Lichtkuppeloberteile nach Montage des Aufsatzkranzes eingesetzt werden.
  • Page 7 !! ACHTUNG !! Lichtkuppeloberteil nicht mit der Kunststoffverglasung auf der Dachbahn ablegen. Verformungsgefahr !! ATTENTION !! Do not place the upper part of the rooflight dome with its plastic glazing on the roof membrane. Risk of deformation Lichtkuppel F100 Montageanleitung...
  • Page 8: Bauanschluss Structural Attachment

    Bauanschluss structural attachment #202079 #304578 #210750 Holzschraube Schraubdübel Schraubdübel JA3-6,5x50-E16/2 SDF-KB-10Vx50-V SDP-KB-10Gx80-V Short wooden screw Screw-in wall plug Screw-in wall plug JA3-6,5x50-E16/2 SDF-KB-10Vx50-V SDP-KB-10Gx80-V #302613 #208240 Dichtschraube Bohrschraube JA3-6,5x32-E16/2 JT3-6-5,5x30 E16/2 Sealing screw Drilling screw JA3-6,5x32-E16/2 JT3-6-5,5x30 E16/2 Unterkonstruktion Positionsnummer Bohrung im Kranz Substracture Item number...
  • Page 9 Dachabdichtungsarbeiten durch das Dachdeckungsunternehmen einzuhalten! The drawn connection only serves as a schematic for orientation! The roofing specialist must comply with technical standards for waterproofed roofs, such as flat roof guidelines, when planning and carrying out roof sealing work! Lichtkuppel F100 Montageanleitung...
  • Page 10: Lüftbar Verriegelt (Blattfederverschluss)

    Lüftbar verriegelt (Blattfederverschluss) ventilated locked (laminated spring lock) Einzelteile: Für den nachträglichen Anbau eines Antriebes | for a later installation of the drive Components: #214081 #210006 Einschiebling F100 Beschlagsblech Verschlussteil blank Blattfeder Insert-sleeve F100 metal fitting blank closing part leaf...
  • Page 11 If a possibility to open from the outside is not allowed and no opener unit is installed, the Von außen öffenbar NICHT von außen öffenbar leaf spring must be moved to Openable from outside NOT openable from outside the left side. Lichtkuppel F100 Montageanleitung...
  • Page 12: Starr Verschraubt (Z-Blech)

    Starr verschraubt (Z-Blech ohne Antrieb) rigidly bolted (Z sheet without drive) Einzelteile: Components: #214081 #302610 Einschiebling F100 Beschlagsblech Verriegelungsblech blank Z-Blech Insert-sleeve F100 metal fitting blank Locking plate Z-sheet #206177 #209940 Unterlegscheibe Innensechskant- dick Ø=6,4 schraube M6x12 washer thick Ø=6,4...
  • Page 13 04/2018 Montage: Assembly: Lichtkuppel F100 Montageanleitung...
  • Page 14: Zahnstangen-Antrieb "Typ Za

    Zahnstangen-Antrieb "Typ ZA" rack and pinion drive "type ZA" Einzelteile: Components: #214081 #207571 Einschiebling F100 Beschlagsblech Spindelkonsole Elektromotor ZA blank Insert-sleeve F100 spindle bracket drive ZA metal fitting blank #215613 #209940 #216948 Flügelbock Innensechskant- Linsenkopf RAL 9016 schraube M6x12 AW25 5,5x45...
  • Page 15 Align hinge bracket and connecting Assembly: sleeve centred to the eyebolt of the drive. Remove position 7 for alignment. Der Öffnerantrieb soll noch leichtgängig in der Konsole schwenkbar sein. The opener drive should be smoothly slewable in the bracket. Lichtkuppel F100 Montageanleitung...
  • Page 16: Teleskop-Spindelantrieb (Handspindel)

    Teleskop-Spindelantrieb (Handspindel) telescope spindle drive (hand spindle) Einzelteile: Components: #214081 #207571 #200053 Einschiebling F100 Beschlagsblech Spindelkonsole Teleskop-Spindel blank Insert-sleeve F100 spindle bracket telescope spindle metal fitting blank #215613 #209940 #216948 Flügelbock Innensechskant- Linsenkopf RAL 9016 schraube M6x12 AW25 5,5x45 wing bent RAL 9016...
  • Page 17 Align hinge bracket and connecting Assembly: sleeve centred to the eyebolt of the drive. Remove position 7 for alignment. Der Öffnerantrieb soll noch leichtgängig in der Konsole schwenkbar sein. The opener drive should be smoothly slewable in the bracket. Lichtkuppel F100 Montageanleitung...
  • Page 18: Pneumatikzylinder Pneumatic Cylinder

    Pneumatikzylinder pneumatic cylinder Einzelteile: Components: #214081 #217639 Einschiebling F100 Beschlagsblech Motorkonsole Pneumatikzylinder blank Insert-sleeve F100 motor console pneumatic cylinder metal fitting blank #215613 #209940 #206177 #216948 Unterlegscheibe Flügelbock Innensechskant- Linsenkopf RAL 9016 schraube M6x12 dick, Ø=6,4 AW25 5,5x45 wing bent RAL 9016...
  • Page 19 Align hinge bracket and connecting Assembly: sleeve centred to the eyebolt of the drive. Remove position 8 for alignment. 11/12 Der Öffnerantrieb soll noch leichtgängig in der Konsole schwenkbar sein. The opener drive should be smoothly slewable in the bracket. Lichtkuppel F100 Montageanleitung...
  • Page 20 230V Motor tandem „Typ JMBB“ 230V drive tandem „Type JMBB“ Einzelteile: Components: #214081 #215798 Einschiebling F100 Beschlagsblech Motorkonsole Elektromotor 230V blank Insert-sleeve F100 motor console driver 230V metal fitting blank #215613 #209940 #216948 Flügelbock Innensechskant- Linsenkopf RAL 9016 schraube M6x12...
  • Page 21 Align hinge bracket and connecting Assembly: sleeve centred to the eyebolt of the drive. Remove position 7 for alignment. Der Öffnerantrieb soll noch leichtgängig in der Konsole schwenkbar sein. The opener drive should be smoothly slewable in the bracket. Lichtkuppel F100 Montageanleitung...
  • Page 22 24V Motor tandem „Typ JM-DC“ 24V drive tandem „Type JM-DC“ Einzelteile: Components: #214081 #210704 Einschiebling F100 Beschlagsblech Motorkonsole Elektromotor 24V blank Insert-sleeve F100 motor console driver 24V metal fitting blank #215613 #206177 #216948 #209940 Flügelbock Innensechskant- Unterlegscheibe Linsenkopf RAL 9016 schraube M6x12 dick, Ø=6,4...
  • Page 23 Remove position 8 for alignment. Der Öffnerantrieb soll noch leichtgängig in der Konsole schwenkbar sein. The opener drive should be smoothly slewable in the bracket. ODER Montage Motorkonsole an Unterkonstruktion Installation of the motor bracket on the substructure Lichtkuppel F100 Montageanleitung...
  • Page 24: Kettenschubmotor "Typ Ksa

    Kettenschubmotor "Typ KSA" chain drive "type KSA" Einzelteile: Components: #214081 #307039 Einschiebling F100 Konsole KSA Motor Elektromotor KSA Flügelbockkonsole Insert-sleeve F100 console KSA driver driver KSA wing bent console #216948 #201678 #217294 #209940 Linsenkopf Unterlegscheibe Innensechskant- Mutter M5 AW25 5,5x45 dünn, Ø=6,4...
  • Page 25 X Attention: The measure applies from the contact surface of the seal. Der Öffnerantrieb soll noch leichtgängig in der Konsole schwenkbar sein. K40-5° The opener drive should be smoothly slewable in the bracket. Fit-6 Senkrecht Vertical Lichtkuppel F100 Montageanleitung...
  • Page 26: Kettenschubmotor "Typ Ne-Ka

    Kettenschubmotor "Typ Ne-Ka" chain drive "type Ne-Ka" Einzelteile: Components: #214081 #303888 Einschiebling F100 Konsole KSA Motor Elektromotor Flügelbockkonsole Neka Insert-sleeve F100 console KSA driver wing bent console driver Neka #216948 #201678 #209940 Linsenkopf Unterlegscheibe Innensechskant- AW25 5,5x45 dünn, Ø=6,4 schraube M6x12...
  • Page 27 Das Maß gilt ab Auflagefläche der Dichtung. K40-5° Attention: The measure applies from the contact surface of the seal. Fit-6 Senkrecht Der Öffnerantrieb soll noch leichtgängig in der Konsole schwenkbar sein. Vertical The opener drive should be smoothly slewable in the bracket. Fit-5 Lichtkuppel F100 Montageanleitung...
  • Page 28: 230V Motor "Typ Jmbb

    Anschlusspläne Elektromotoren Wiring diagrams of electric drives Solo/Tandem 230V Zahnstangenantrieb "Typ ZA" gn/ge rack and pinion drive "type ZA" Ansteuerung gegen- sw auf Technische Daten | 230V technical details seitig verriegelt | br zu locked control Zahnstangenantrieb | rack and tandem ->...
  • Page 29: Kettenschubmotor "Typ Ksa

    Kabellänge | cable length Achtung bei Tandemschaltung: Zur Synchronisation müssen die "Kommunikationsadern" der Motoren miteinander verbunden werden. Attention with tandem circuit: To synchronise, the communication wires of the drives need to be connected with each other. Lichtkuppel F100 Montageanleitung...
  • Page 30: Notizen

    Notizen Notes Customized Intelligence Dem Kunden dienen als Programm...
  • Page 31: Kontakte

    : +49 9283 595-1677 E-Mail: Heiko.Sachs@lamilux.de Ingo Michel Telefon | Phone : +49 9283 595-222 E-Mail: Ingo.Michel@lamilux.de Abteilung Steuerungstechnik | Gebäudesteuerung Department Control Technology | Building Automation Fabian Sachs Telefon | Phone: +49 9283 595-1648 E-Mail: Fabian.Sachs@lamilux.de Lichtkuppel F100 Montageanleitung...
