Holley 4160 Installation Instructions

Holley 4160 Installation Instructions

Conversion kit, less metering jets

Advertisement

WARNING! These instructions must be read and fully understood before beginning installation. Failure to follow these instructions may
result in poor performance, vehicle damage, personal injury, or death. If these instructions are not fully understood, installation
should not be attempted.
INTRODUCTION:
Holley Performance Products cannot and will not be responsible for any alleged or actual engine or other damage, or other conditions
resulting from misapplication of the carburetor described herein. However, it is our intent to provide the best possible products for our
customer; products that perform properly and satisfy your expectations. Should you need information or parts assistance, please
contact our Technical Service Department at 1-270-781-9741, Monday through Friday, 7 a.m. to 5 p.m. CST; please have the part
number of the product you purchased when you call.
APPLICATIONS:
For use in converting Holley Model 4160 to a Model 4150 - A set of two main metering jets must be purchased separately to complete
the conversion.
GENERAL:
This kit is designed to fit a range of applications. Extra parts are provided to facilitate the general conversion. All parts may not be
required for each conversion.
Due to emission requirements, the number of vacuum lines and tubes is increasing. It is advisable when disconnecting tubes a nd
lines, to identify them in some manner so as to avoid confusion later. Trace the lines back from the carburetor to the individual
components, and identify that line. In the event that any components are unfamiliar, use a numbering system which corresponds to
each line and its original component.

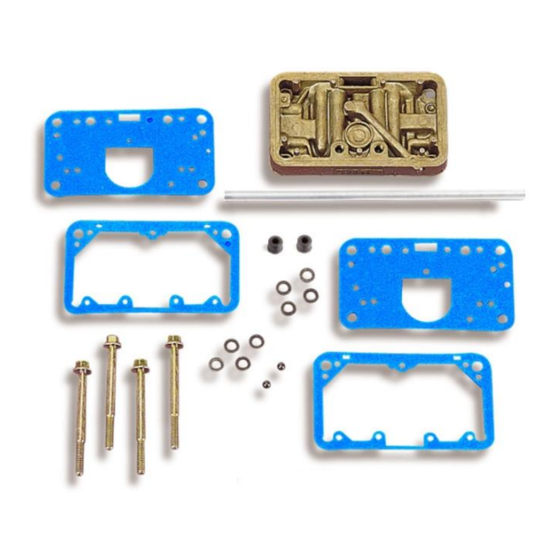

MODEL 4160 to MODEL 4150 CONVERSION KIT
34-6 & 34-6S (less metering jets)
Installation Instructions 199R8110
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 4160 and is the answer not in the manual?

Questions and answers

Summary of Contents for Holley 4160

  • Page 1 Technical Service Department at 1-270-781-9741, Monday through Friday, 7 a.m. to 5 p.m. CST; please have the part number of the product you purchased when you call. APPLICATIONS: For use in converting Holley Model 4160 to a Model 4150 - A set of two main metering jets must be purchased separately to complete the conversion. GENERAL: This kit is designed to fit a range of applications.
  • Page 2 MAINTENANCE: WARNING! Fuel system components, including fuel lines and the carburetor, should be regularly inspected to assure that no fuel is leaking and that all hoses are sound. Today’s controlled emissions engines create high under hood temperatures and can contribute to fast aging of the fuel line and vacuum hoses. Any hoses which exhibit surface cracks when bent to a 180º...
  • Page 3 Do not attempt to use a regular screwdriver. NOTE: Some older Holley Model 4160 carburetors use a balance tube. If your carburetor is so equipped, please contact Holley Technical Service. The kit comes with lead balls and extra gaskets should you have this model.
  • Page 4 1801 Russellville Road Bowling Green, KY 42101 Phone: 1-270-781-9741 or 1-866-464-6553 Fax: 1-270-781-9772 For online help, please refer to the Tech Service section of our website: www.holley.com © 1989 Holley Performance Products, Inc. All rights reserved. 199R8110 Revision Date: 1-21-14...

This manual is also suitable for:

415034-634-6s
