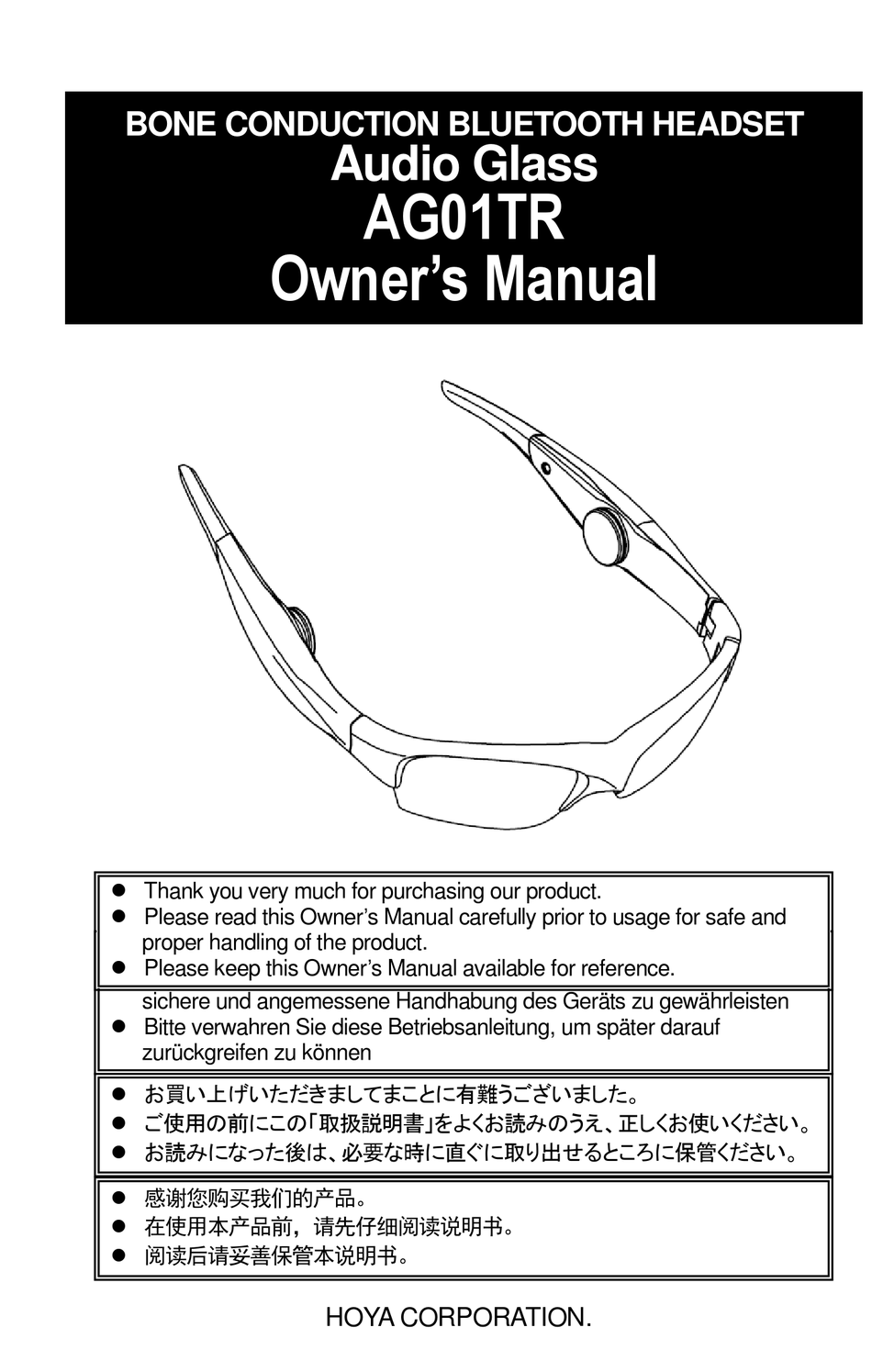

BONE CONDUCTION BLUETOOTH HEADSET
Owner's Manual
 Thank you very much for purchasing our product.
 Please read this Owner's Manual carefully prior to usage for safe and
proper handling of the product.
 Danke, dass Sie sich fü r unser Gerä t entschieden haben.
 Please keep this Owner's Manual available for reference.
 Bitte lesen Sie die Betriebsanleitung vorher sorgfä ltig durch, um eine
sichere und angemessene Handhabung des Gerä ts zu gewä hrleisten
 Bitte verwahren Sie diese Betriebsanleitung, um spä ter darauf
zurü ckgreifen zu kö nnen
 お買い上げいただきましてまことに有難うございました。
 ご使用の前にこの「取扱説明書」をよくお読みのうえ、正しくお使いください。
 お読みになった後は、必要な時に直ぐに取り出せるところに保管ください。
 感谢您购买我们的产品。
 在使用本产品前,请先仔细阅读说明书。
 阅读后请妥善保管本说明书。
Audio Glass
AG01TR
HOYA CORPORATION.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AG01TR and is the answer not in the manual?

Questions and answers

Summary of Contents for Hoya AG01TR

  • Page 1 BONE CONDUCTION BLUETOOTH HEADSET Audio Glass AG01TR Owner’s Manual  Thank you very much for purchasing our product.  Please read this Owner’s Manual carefully prior to usage for safe and proper handling of the product.  Danke, dass Sie sich fü r unser Gerä t entschieden haben.
  • Page 2 NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
  • Page 3: How To Use The Head Set

    The Headset is used in combination with any Bluetooth decive. It can also be used with a mobile phones sold in the market with built-in Bluetooth technology. Kit Checklist The package contains all of the following. TBD * AG01TR * USB Cable * Owner’s Manual Parts...
  • Page 4: Pairing Instructions

    Instructions on [Pairing] are as follows: Pairing with Mobile Phones 1) Turn ON the Bluetooth on the mobile phone. 2) Turn On AG01TR. 3) Find and select [Audio Glass 01]. 4) After select it, to be shown Connected on screen.
  • Page 5: Buttons Configuration

    Press once right button when phone is ringing, to receive the incoming call. To reject the incoming call, press and hold the right button for 1 sec. when ringing. To redial previous call, press and hold the button for 1 sec. *In case of playing music, music will be paused and hear the ring tone.
  • Page 6 temples. Plug the USB connector on another side of cable to PC or USB wall charger. Red Indicator light indicates the battery is being charged. 2) Indicator lights will automatically shut off once charging is complete. <Safety Precautions>  Do not charge battery under following conditions. In all cases, liquid leakage, explosion, heat generation, or even a fire may result.
  • Page 7: Specifications

    Specifications Microphone Electret Condenser 200Hz ~ 8000Hz Frequency Response Microphone Sensitivity TBD(-42dB ± 4dB at 1KHz (0dB=1V/Pa) Receiver Magnetic 300Hz ~ 3000Hz Frequency Response Level TBD(96dB± 5dB at 1kHz (0dB=3μN/1mW) Size TBD(approx. 115x180mm) Weight TBD(approx. 55g (1.94 OZ) Built-in Battery Lithium Polymer 3.7V 120mAh Operation Time Approximately 2.5 hours...
