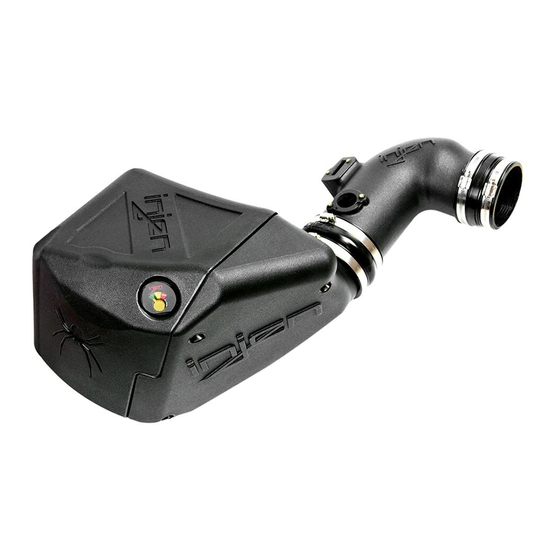

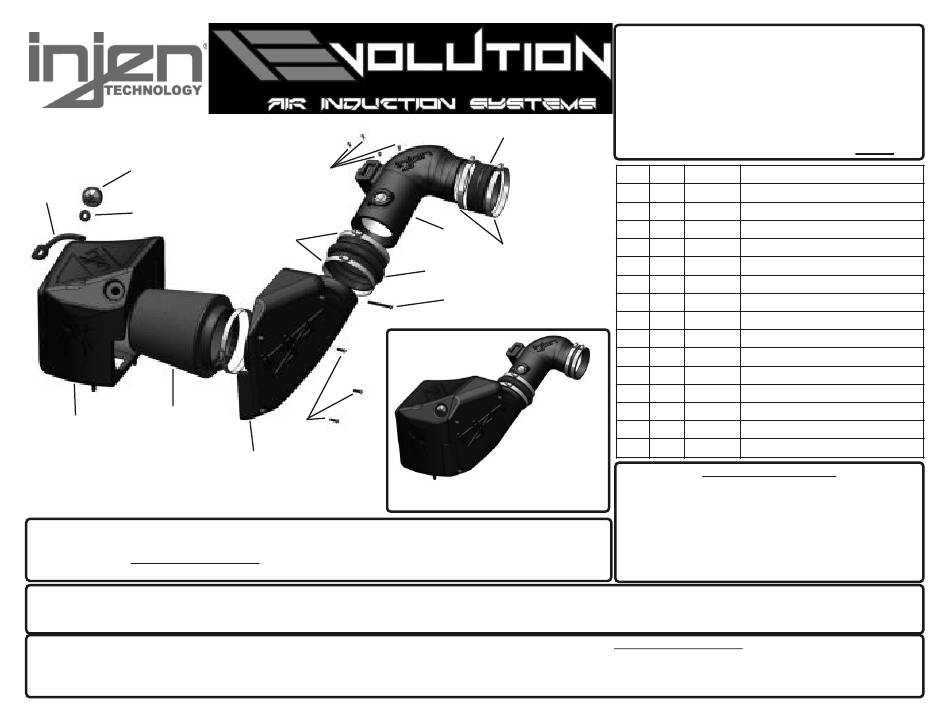

EXPLODED VIEW
M
N
O
D
C
WARNING: FAILURE TO FOLLOW INSTALLATION INSTRUCTIONS AND NOT USING THE PRO-
VIDED HARDWARE MAY DAMAGE THE INTAKE SYSTEM, ENGINE AND COMPONENTS!!!
*Do not attempt to install the intake system while the engine is hot.
Severe burn could result from touching hot engine components!
Report any defective or missing parts to the authorized Injen dealer you purchased this product from. Before installing any parts of this system,
please read the instructions thoroughly. If you have any questions regarding installation, please contact your Injen Technology dealer. Installation
DOES require some mechanical skills. A qualified mechanic is always recommended.
A Limited Lifetime Warranty to the original purchaser against defects in material and workmanship on all Injen intake systems excluding the filter element.
Any and all warranty coverage is limited to the repair or replacement of the defective part only, at Injen Technology's discretion. The warranty does not
cover incidental or consequential damages, nor does it cover the cost of installation or removal of the defective part or its replacement. Proof of purchase
is required.
Page 1 EVO7006
Instruction Manual
I
H
K L
B
P/N:EVO7006
F
A
G
E
J
Vehicle Application:
Make: Chevrolet /GMC
Model: Silverado / Sierra
2500/3500
Year: 2015
Engine: 6.6L (TD) Duramax LML
Item QTY.
P/N
A
1
#15054 Rotomold Tube
B
1
#15055 Rotomold Plenum
C
1
#15056 Rotomold Box
D
1
#1068 6.00" Filter
E
1
#3201 5.00" Hump Hose
F
1
#3163 4.25"- 4.50"Straight Hose
G
2
#4014 #72 Clamps
H
2
#4019 #80 Clamps
I
4
#6047 M4X10mm Button Head Bolts
J
1
#6095 M6X80mm Bolt
K
3
#6096 M6x30mm bolt
L
4
#8047 Rubberized washer
M
1
#15040 Filter Monitor
N
1
#3198 3mm-16" Vacuum Hose
O
1
#8026 Grommet
TOOLS REQUIRED
• 10mm Ratchet & Socket
• 8mm nut drive
• Allen key
• Flat Blade Screwdriver
• Phillips Screwdriver
Discription
