Euromold 400A-24B Installation Instructions

IS90122-ENG - 400A-24B
8 October 2013 - Revision 3 - Supersedes edition of January 2003
CAUTION : Read instructions thoroughly and completely prior to beginning installation.

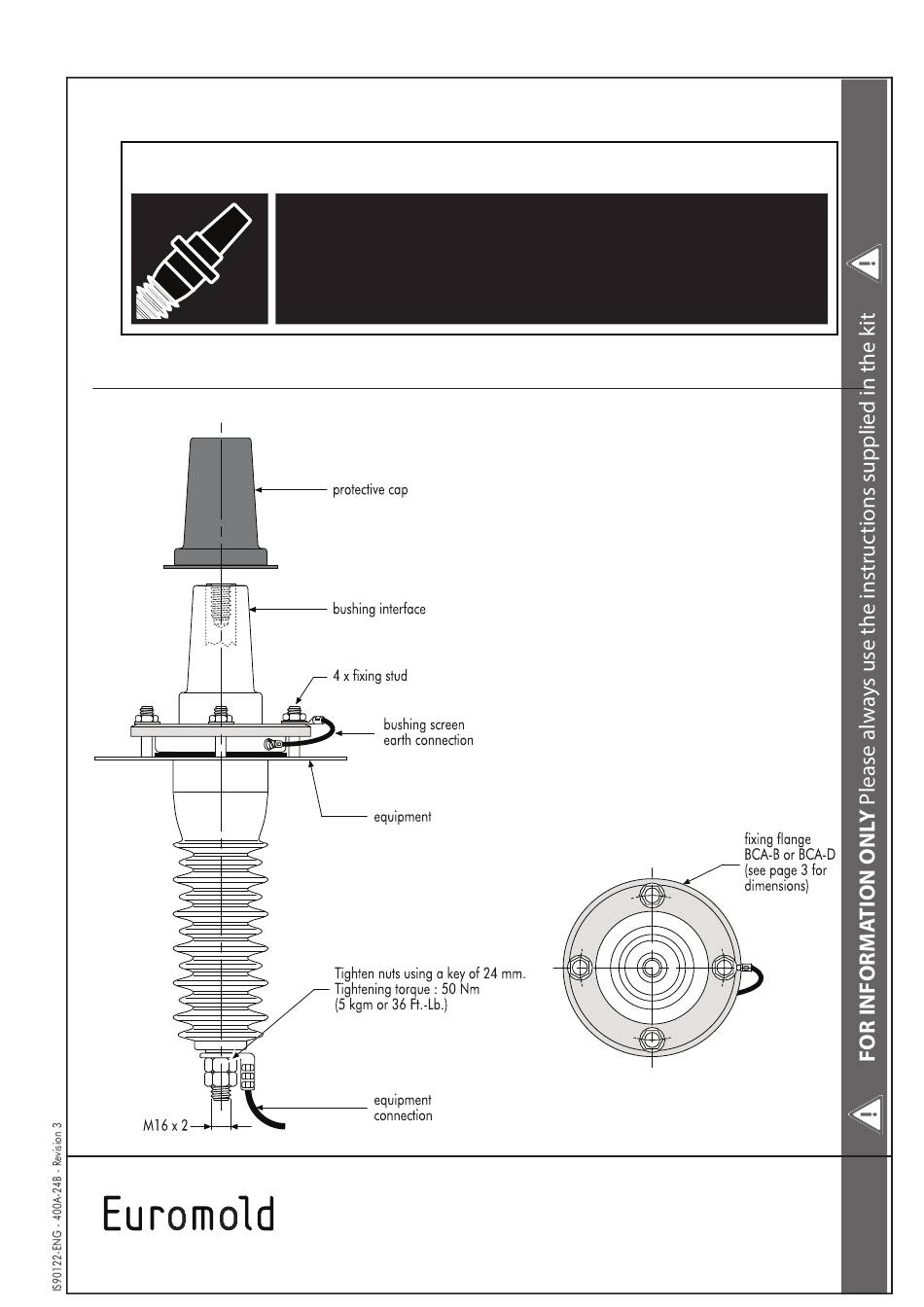

Installation instructions for in air bushing - Type C interface
a Nexans company
400A-24B
630 A - Up to 24 kV
For indoor applications
This product should be installed only by competent personnel trained in good safety practices involving
high voltage electrical equipment. These instructions are not intended as a substitute for adequate
training or experience in such safety practices. These instructions do not attempt to provide for every
possible contingency. Failure to follow these instructions could result in damage to the product and
serious or fatal injury. IMPORTANT : Cable and associated apparatus must be de-energised, locked
out, and tagged prior to product installation.

IMPORTANT NOTES :

- EUROMOLD bushings are supplied with protective
caps over the mating interface offering protection
against mechanical damage and the ingress of any
contaminant. Under no circumstances should
this shipping cap be considered as an electrical
dead-ending device.
- EUROMOLD bushings should never be energised in
isolation neither should they be disconnected whilst
energised. They should always be connected to one
of the recommended mating parts or the electrical
dead-ending device : K400DR-B or K400DR-B/G.
- Do not paint the interface.
Page 1 of 3
