- Page 1 Thermo-Electric Bending Beam Rheometer Instruction & Operation Manual TE-BBR 44.0991...
- Page 3 Copyright Copyright © 2018 CANNON Instrument Company®. All rights reserved. Trademarks CANNON® and the CANNON® logo are registered trademarks of Cannon Instrument Company®. Contact Address: CANNON Instrument Company® 2139 High Tech Road State College PA 16803, USA Phone: 1-814-353-8000; 1-800-676-6232...
-
Page 4: Table Of Contents
Safety Precautions ......................5 Notes/Cautions/Warnings ......................5 Safety Precautions ........................5 Specifications ........................7 Ordering Information ......................9 Unpack and Install the TE-BBR ..................11 System Components Arrangement ..................12 Control Unit ..........................12 Stirring Bar Protection Sheet ...................... 12 Stirring Bar ..........................12 Load Frame .......................... - Page 5 Dry Air/Nitrogen Connections ....................16 Air/Water Heat Exchanger Connections ...................17 Software Installation ....................... 18 Installation Procedure ......................... 18 TE-BBR System Preparation & Maintenance ..............19 Fill the Air/Water Heat Exchanger ....................19 Prepare the Temperature Bath ....................20 Select a Bath Liquid ........................ 20 Fill the Bath with Liquid ......................
- Page 6 Level the BBR ......................... 52 Incorrect Load Values ........................53 Fluctuation in Deflection/Load During a Test ................54 Check the TE-BBR Voltage Values for Force and Deflection ........... 54 Download Button ........................54 Clean the Instrument Housing ....................55 Adjusting Bending Beam Rheometer Force and Deflection Voltages.......... 56 Adjust Force Voltages ......................
- Page 7 Conclude the Evaluation ......................61 Clean Air Bearing Shaft and Load Cylinder in TE-BBR ..............62 Remove Asphalt from the Shaft ....................62 Remove Load Cylinder Contaminants ..................62 TE-BBR Force Reading Error ....................... 65 Procedure ..........................65 For a 64 bit Windows Computer ....................65 For a 32 bit Windows Computer ....................
- Page 8 Figure 29: Load Cylinder Air Line Connections ................63 Figure 30: Report View ........................73 Figure 31: Graph View ........................74 Figure 32: TE-BBR Motor Stirrer/Plate and AC Power Connector ............. 75 Figure 33: Motor Stirrer Wiring Diagram ..................76 Figure 34: Supported Load Frame ....................78 Figure 35: Load Frame Supports ......................78...
- Page 9 Table 3: TE-BBR Accessories and Consumables ................9 Table 4: Test Menu Options ......................30 Table 5: View Menu Options ......................30 Table 6: Calibrate Menu Options ....................31 Table 7: TE-BBR Replacement Parts ....................66 Table 8: ASCII File Format ........................71...
-
Page 12: Contents

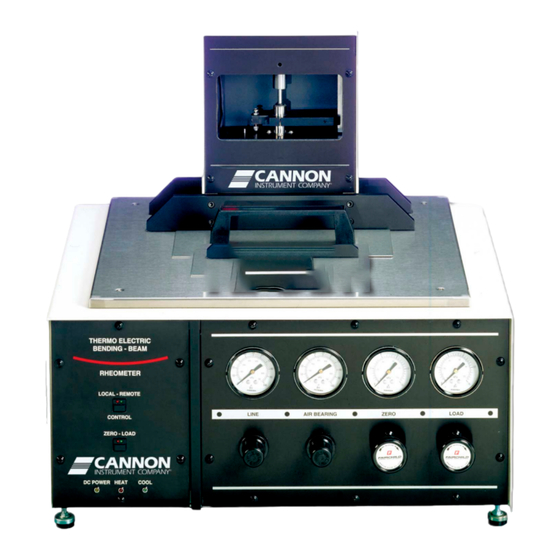

Introduction This manual describes the CANNON Thermoelectric Bending Beam Rheometer and the procedures for obtaining test data. The Bending Beam Rheometer is used to make rapid determinations of the flexural-creep stiffness of asphalt binders over a temperature range of 0 °C to -36 °C. -
Page 13: Control Unit
The pressure in the air chamber, or cylinder, can be adjusted - any desired load can be applied to the specimen, up to the maximum or the full weight of the shaft. Refer to Figure 3. TE-BBR Instruction and Operation Manual... -
Page 14: Manual Operation
The Air/Water Heat Exchanger consists of a radiator, fan(s), and a water pump to circulate and cool a mixture of water and ethylene glycol flowing through the hot side heat sinks surrounding the bath in the Control Unit. Circulation of the mixture removes heat from the Control Unit bath. CANNON Instrument Company | Introduction... -
Page 15: Specimen Molds
Windows®. An RS-232C cable is provided to connect the TE-BBR to a computer. The TE-BBR has its own microprocessor and communicates with the host computer via the RS-232C serial connection to the computer COM port, or through USB with a connector. -
Page 16: Safety Precautions
Manufacturer is not liable for any loss or damage directly or indirectly caused by use of the instrument or its consequences. This manual pertains directly to the TE-BBR. For details relating to other accessories or equipment please refer to the appropriate manufacturers supplied documentation. - Page 17 Cannon Instrument Company. • Do not deviate from the installation, operation, or maintenance procedures described in this manual. Improper use of the TE-BBR may result in a hazardous situation and may void the manufacturer’s warranty. •...
-
Page 18: Specifications
Specifications Table 1: CANNON TE-BBR Specifications Specifications Details Model CANNON TE-BBR Thermoelectric Bending Beam Rheometer Methodology ASTM D6648, AASHTO T313, SHRP Binder Provisions Applications Low temperature flexural creep testing of asphalt binders Control Unit: 73.7 cm × 70.1 cm × 55.9 cm Dimensions (W ×... - Page 19 Table 1: CANNON TE-BBR Specifications Specifications Details Operating Conditions 15 °C to 30 °C, 10% to 75% relative humidity (non- condensing), Installation Category II, Pollution Degree 2 Electrical Specifications 120 VAC, 50/60 Hz; 240 VAC, 50/60 Hz; 1800 watt power consumption Compliance CE Mark: EMC Directive (2004/108/EC);...
-
Page 20: Ordering Information
Ordering Information The CANNON TE-BBR Thermoelectric Bending Beam Rheometer consists of the bending beam rheometer with load frame, air/water heat exchanger, a complete precision calibration kit, a set of six aluminum molds with Mylar separators and data storage/management software. Computer sold separately. - Page 21 Table 3: TE-BBR Accessories and Consumables Description Part Number Crack seal kit: includes a set of 5 modified beam supports, thin and P44.0675 thick beam (for calibration), installation hardware and documentation Crack seal mold for BBR 44.6262 Crack seal molds (6) for BBR 44.6263...
-
Page 22: Unpack And Install The Te-Bbr
CANNON advises users to retain the packing material and original shipping container for the Load Frame in the event that it is necessary to return the Load Unit to Cannon Instrument Company for service. Ensure that all of the contents of each container are retained. All auxiliary items shipped with the TE- BBR are labeled. -
Page 23: System Components Arrangement
When the bath is functioning, the speed of the stirring bar is controlled magnetically using the speed control dial on the left rear panel (as viewed from the rear) of the Control Unit. Refer to Figure 6. TE-BBR Instruction and Operation Manual... -
Page 24: Load Frame
Control Unit until the bubble level indicates that the unit is level. Refer to Figure 7. Figure 7: Bubble Level for Load Frame Computer Locate the computer adjacent to the control unit to expedite convenient serial connections. CANNON Instrument Company | System Components Arrangement... -
Page 25: Exchanger/Refrigeration
Exchanger/Refrigeration Place the Refrigeration Unit (BBR model) or Air/Water Heat Exchanger (TE-BBR model) on the floor below the Control Unit. Do not place the unit on the same table as the Control Unit as the fan/motor vibration can interfere with the sensitive measuring system of the Load Unit. Also, it is necessary to provide 15 cm (6") of clearance on all sides of the unit for sufficient air circulation. -
Page 26: Electrical Connections
Control Unit – Heat Exchanger Connections Make certain the power switch on the TE-BBR is in the OFF (O) position. Then connect the two large power cables between the air/water heat exchanger and the rear panel of the Control Unit. Refer to Figure 10. -
Page 27: Serial Connections
Tubing Connections Dry Air/Nitrogen Connections CANNON recommends the use of dry air as the most effective compressed gas supply. An air dryer should be installed on your line as close to the instrument as possible to prevent condensation and corrosion. -
Page 28: Air/Water Heat Exchanger Connections
Connect the tube from the IN fitting of the Control Unit to the COOLANT OUT connection on the Air/Water Heat Exchanger. Connect the tube from the OUT fitting on the Control Unit to the COOLANT IN connection on the Air/Water Heat Exchanger. CANNON Instrument Company | Electrical Connections... -
Page 29: Software Installation
Installation Procedure 1. Turn on your computer and place the installation disk in your CD disc drive. 2. Follow the Windows prompts to complete the installation. Contact Service at CANNON with any VISCPRO installation issues. TE-BBR Instruction and Operation Manual... -
Page 30: Te-Bbr System Preparation & Maintenance
(M)SDS procedures. Do not use "environmentally friendly” alternatives to ethylene glycol (such as polyethylene glycol) in the heat exchanger. Such products can coagulate under colder conditions and damage the TE-BBR circulation system. CANNON Instrument Company | TE-BBR System Preparation & Maintenance... -
Page 31: Prepare The Temperature Bath
Caution: Methyl alcohol is a flammable and toxic liquid. Use care when handling and keep away from open flame or sparks. Do not add bath liquid while TE-BBR power is ON. Fill the Bath with Liquid After selecting a suitable bath liquid, fill the bath to the fill line (approximately 5 liters). -
Page 32: Check Bath Components
2. Turn the Control Unit power switch ON. The TE-BBR power switch is located on the right rear corner of the Control Unit. 3. Slowly turn the motor stirrer speed adjustment knob (next to the power switch) clockwise to increase the speed of the stirring bar to the desired level. -
Page 33: Check The Control Unit
6. Turn the LOAD pressure regulator until the shaft is again in free-float condition. Note: Because each unit may differ in bearing characteristics, there is a sticker attached to the gauge with the pressure settings. TE-BBR Instruction and Operation Manual... -
Page 34: Initial Software Settings
Initial Software Settings Before running TE-BBR tests, setup information must be entered. 1. Turn on computer and load the BBRw software. 2. Select from the BBRw menu options. Refer to Figure 16. Instrument Setup Figure 14: Instrument Setup 3. Set the COM port: a. - Page 35 Input the values for deflection per graph division (the default is 1 mm) and force per graph division (the default is 1000 mN). c. If desired, click on the Autoscaling option. When checked, the BBRw software will automatically select graph scale values for effective display of test data. TE-BBR Instruction and Operation Manual...
-
Page 36: Enable Temperature Control
Instrument Setup menu. b. Enter the desired temperature (between +25 °C and -40 °C). Enable Temperature Control The TE-BBR will not control temperature unless the option is turned Enable Temperature Control on. When temperature control is enabled, the Enable option on the Setup menu will have a check mark in front of it. -
Page 37: Calibration
6.35 mm (¼") thick stainless steel beam and four 100 gram weights are supplied for the calibration. At the end of the calibration run, remove the weights from the load platform, and the 6.35 mm (¼") steel beam from the bath. TE-BBR Instruction and Operation Manual... -
Page 38: Compliance
A thin (approximately 1.20 mm) steel beam is needed, as well as two to four 100-gram weights, depending on the laboratory calibration protocol. If the test fails repeatedly, recalibrate the instrument and rerun the confidence test. CANNON Instrument Company | Calibration... -
Page 39: Verify Calibration
10. Add one 2-gram weight (± 0.2 g) to the load platform. 11. Verify that the force increases by 20 mN ± TOL. 12. Add a second 2-gram weight (± 0.2 g) to the load platform. TE-BBR Instruction and Operation Manual... -
Page 40: Erratic Readings Error Message
2. If setup is correct, click the ignore button and continue. Calibration results must be within .14 mN/bit to .16 mN/bit for force, and .14 um/bit to .16 um/bit for the deflection with .15 mN being optimal. If results exceed these ranges, contact CANNON service department for help with further diagnosis. -
Page 41: Software Menu Options
Lists the most recently opened files. Double-click the file name to …,2…,3…,4 open the file Exit Exits the BBR software program *option available only when test file is open. Table 5: View Menu Options Name Description Toolbar Displays or hides the BBRw toolbar. TE-BBR Instruction and Operation Manual... -
Page 42: Setup Menu Options
Instrument Setup property sheet. 2. Enter the desired temperature (between +25 °C and -40 °C). 3. Click to save the settings, or Cancel to discard the changes. CANNON Instrument Company | Software Menu Options... -
Page 43: Help Menu Options
Note: When the TE-BBR is turned off, Temperature Control is disabled. If the software application is exited but the instrument remains on, the Enable Temperature Control option will retain its previous setting when the TE-BBR software is restarted. -
Page 44: Figure 19: Toolbar Options
Figure 17: Toolbar Options CANNON Instrument Company | Software Menu Options... -
Page 45: Beam Preparation
• Specimen demolding When preparing the specimen, make sure to allow time for the TE-BBR bath to reach the test temperature and stabilize. The bath should be equilibrated at the test temperature for at least 30 minutes before running the asphalt beam test. - Page 46 To prevent asphalt from sticking to these surfaces, cover them with a thin layer of debonding agent (CANNON recommends using a mixture of talcum powder and glycerol) and a narrow spatula, wire or rod. Avoid spreading the mixture on the plastic surfaces.
-
Page 47: Figure 20: Mold Specimen Diagram
Figure 18: Mold Specimen Diagram TE-BBR Instruction and Operation Manual... -
Page 48: Specimen Pouring
12.7 mm (¼”) it will not fit correctly on the device supports. If the upper side of the mold is not cleaned carefully the specimen will adhere to the side bars, making removal difficult. CANNON Instrument Company | Beam Preparation... -
Page 49: Specimen Demolding
Caution: Use caution when cooling the specimen as asphalt may be brittle at lower temperatures. Do not use the TE-BBR test bath to cool the sample. Immersing the warm mold in the bath could disturb the temperature equilibration and force a delay in testing. - Page 50 Note: The demolding operation should be done as quickly as possible to prevent deformation of the specimen. CANNON Instrument Company | Beam Preparation...
-
Page 51: Initial Startup
Remove any beams from the beam supports. Turn the computer and the TE-BBR instrument ON and check the push button switches on the BBR left panel to make sure that the red indicator LEDs are lit. These default settings for BBR front panel switches are LOCAL and ZERO. - Page 52 Switch back to the ZERO mode and check to see if the shaft has drifted up off the beam. If so, repeat the load procedure. Manually raise the shaft enough to remove the stainless steel beam. Manually raise the haft enough to remove the stainless steel beam. CANNON Instrument Company | Initial Startup...
-
Page 53: Test Asphalt Binder Samples
Test Asphalt Binder Samples After preparing the TE-BBR instrument for testing and completing the confidence test, follow the procedure below to test asphalt binder samples: 1. Check the bath temperature to ensure it is at the desired test temperature. If not, follow the procedure in section Prepare the Temperature Bath;... -
Page 54: Test Description
Figure 19: Graph of Test Results Results also appear in Report form. Figure 22 is an example of test results in Report view. See Appendix 1 – Test Reports for more information about test results. CANNON Instrument Company | Test Asphalt Binder Samples... -
Page 55: Shut Down The Instrument
Figure 20: Report View of Test Results Shut Down the Instrument At the conclusion of testing, follow the shutdown procedure below to prevent damage to TE-BBR components. 1. Remove any beams from the supports and heat the bath to +5 °C. -
Page 56: Troubleshooting
If values differ significantly, recalibrate and check for "play" in the Delrin load shaft or asphalt residue on the shaft nose, beam or beam supports. If the problem is still unresolved, call CANNON for technical assistance. Troubleshoot Confidence Test... -
Page 57: Flush And Drain The Air/Water Heat Exchanger
Flush Procedure 1. Turn off the TE-BBR power switch to remove power from the instrument and Exchanger. 2. Detach the quick-connect fitting securing the tubing from the BBR to the IN connection on the Exchanger by pushing down on the release button while pulling the hose connection out. Refer to Figure 14. -
Page 58: Drain Fluid Procedure
After the antifreeze mixture has been flushed from the Air/Water Heat Exchanger per the preceding procedure, drain the system as follows: 1. Make certain that the TE-BBR power is OFF. Remove the external housing from the Air/Water Heat Exchanger by removing the six screws securing the housing to the sides of the frame (three screws on each side of the unit) and the six screws on the top and sides of the rear panel. -
Page 59: Failed Communications
Failed Communications Problem: Failed communications between the computer and the instrument (no force, deflection or temperature readings appear in the instrument status window, or the software indicates an invalid serial port in the Setup dialog) TE-BBR Instruction and Operation Manual... - Page 60 8. Scroll through the tab options until you locate the Configure option. 9. Click on and change the port settings to the following: Configure a. 9600 Baud b. No parity c. 1 stop bit d. No flow control CANNON Instrument Company | Troubleshooting...
-
Page 61: Restore The Com Setting
Perform the following procedure and contact Cannon Instrument Company with the results. 1. Locate the TE-BBR test cable (shipped with the instrument) with the phono plug on one end and two alligator clips at the other end. -
Page 62: Temperature Reading Error
Record the voltage as NO LOAD voltage. Add a 100-gram weight to the Load Platform. k. Record the voltage as the 100-GRAM voltage. Call the Service department at Cannon Instrument Company and report the voltage levels obtained with this diagnostic. Temperature Reading Error Problem: The temperature reading displayed on the computer appears incorrectly. -
Page 63: Internal Wiring
5. Rerun the confidence test. Level the BBR If the TE-BBR is not level, the weight platform may rub against the steel bar used to prevent rotation of the platform. The resulting friction produces an erroneous measure of the steel beam modulus. -
Page 64: Incorrect Load Values
Test the TE-BBR for correct voltage readings for Force: 1. Locate the TE-BBR test cable with the phono plug on one end and two alligator clips at the other end (cable is shipped with the instrument). -
Page 65: Fluctuation In Deflection/Load During A Test
Several tests can be performed to isolate an electrical problem. Check the TE-BBR Voltage Values for Force and Deflection 1. Locate the TE-BBR test cable with the phono plug on one end and two alligator clips at the other end (cable is shipped with the instrument). -
Page 66: Clean The Instrument Housing
Turn off all power and unplug the power cord before cleaning the BBR. Periodically clean the outside of the TE-BBR units with a damp cloth moistened with water and/or a mild detergent solution. Do not wipe or otherwise apply pressure to the base of the load shaft in order to avoid damaging the load cell. -
Page 67: Adjusting Bending Beam Rheometer Force And Deflection Voltages
Adjusting Bending Beam Rheometer Force and Deflection Voltages This section provides notes on adjusting the force and deflection voltages for the TE-BBR Bending Beam Rheometer. To complete the force adjustment procedure, the VR5 POT (VR2 POT on the old version) and the VR3 POT must be changed to match the desired voltage. -
Page 68: Adjust Deflection Voltages
Old Version Rear Panel (Refer to Figure 26, Diagram B) Lift the air bearing shaft and place the calibrated 0.15" beam on the beam supports. Gently lower the shaft until it contacts the calibrated beam. CANNON Instrument Company | Troubleshooting... - Page 69 7. Readjust the screw height until the voltmeter reading for the deflection voltage is -5.0 volts; then lock it in place with the hex nut. If necessary, make final adjustments to the screw height until the voltmeter reads -5.0 volts. TE-BBR Instruction and Operation Manual...
-
Page 70: Figure 25: Diagram A (New) Figure 26: Diagram B (Old)
Figure 25: Diagram A (new) Figure 26: Diagram B (old) CANNON Instrument Company | Troubleshooting... -
Page 71: Check Function Of Te-Bbr Cooling Modules
This technical note provides a preliminary procedure for checking function of the thermoelectric cooling modules mounted internally to the TE-BBR bath. The procedure will check the integrity of the electrical circuit defined by input and output leads from the modules. -
Page 72: Check The Thermostat
7. Set the multimeter to indicate resistance (ohms). 8. Check the multimeter reading. It should indicate a completed circuit (zero to very low ohm value). If it does not, then the function of the modules has been compromised, and the TE-BBR unit needs to be repaired. -
Page 73: Clean Air Bearing Shaft And Load Cylinder In Te-Bbr
Follow the procedure outlined in this section to remove contaminants that were introduced through the twin air lines to the load cylinder. 1. Turn off instrument power at the rear of the TE-BBR Control Unit. Remove the Load Frame from the bath and place it on top of the Control Unit. -
Page 74: Figure 29: Load Cylinder Air Line Connections
5. Using a wrench, disconnect the upper and lower air line at the load cylinder. 6. Restore power to the TE-BBR and permit air to blow through the unattached air lines for two or three minutes to clear the lines of any contaminants. - Page 75 15. If travel is restored, use the previously removed screws to replace the Load Frame front cover, replace the Load Frame in the bath, and continue with normal TE-BBR operations. If the cleaning procedures have failed, contact CANNON Instrument Company for further assistance.
-
Page 76: Te-Bbr Force Reading Error
2. Remove the Cannon TE-BBR program from the computer being used to run the instrument. 3. Go to RUN type in REGEDIT and find the registry keys associated with the TE-BBR. The path is H_KEY LOCAL MACHINE/SOFTWARE/CANNONINSTRUMENT/BBRw/1.0 4. Delete the BBRw key. -
Page 77: Replacement Parts
Replacement Parts Table 7 is a list of TE-BBR replacement parts available from Cannon Instrument Company. Table 7: TE-BBR Replacement Parts Description Part Number Description Part Number Silicone Rubber Mold for BBR 9728-V40 Stirrer Motor Replacement Kit 44.0610 Tubing Polyflo Grn 02.1740... - Page 78 44.6535 Weight Gram 100 44.6540 Lamp Cable Assembly (RED) 44.6610 LVDT Cable Assembly (BLUE) 44.6620 Load Cell Cable Assembly, Thermistor Cable Assembly, 44.6630 44.6640 YELLOW GREY Thermistor Probe 5K 44.6700 Cable Assembly (RCA) 44.6810 CANNON Instrument Company | Replacement Parts...
-
Page 79: Warranty
Company to conform to the weight, specifications and standards stated on the package. Returning a product to CANNON Before returning a CANNON product for repair or service, make every attempt to identify the problem. If, after careful checking, the problem remains unidentified or unsolved, telephone Cannon Instrument Company (or the local service agent) to consult with a product specialist. -
Page 80: Required Information
Please contact CANNON before returning a product that could possibly contain hazardous material. Shipping notification Products returned without CANNON’s prior authorization will not be accepted. The customer may be billed a testing fee if a product is returned to CANNON and found to be working properly. CANNON Instrument Company | Warranty... -
Page 81: Appendix 1 - Test Reports
Appendix 1 – Test Reports ASCII File Format for TE-BBR Report Files (.csv) (quotes indicate constant strings) “Project”, Project ID “Operator”, Operator ID “Specimen”, Specimen ID “Timestamp”, Test Date and Time “Target Temperature (C)”, Test Temperature “Soak Time (minutes)”, Time in Bath “Beam Span (mm)”,... -
Page 82: Ascii File Format For Te-Bbr Data Files (.Dat)
ASCII File Format for TE-BBR Data Files (.dat) Table 8: ASCII File Format Decimal Field Width Format Places Version V X.X Specimen ID Project ID Operator ID Test Date MM/DD/YY Test Time HH:MM:SS Calibration Date MM/DD/YY Confidence Test Date MM/DD/YY Value of r 0.123456... - Page 83 Deflection (mm) @ 8 s Deflection (mm) @ 15 s Deflection (mm) @ 30 s Deflection (mm) @ 60 s Deflection (mm) @ 120 s Deflection (mm) @ 240 s Regression coefficient A Regression coefficient B Regression coefficient C TE-BBR Instruction and Operation Manual...
-
Page 84: Te-Bbr Sample Data
TE-BBR Sample Data Select Report Graph from View menu options. Refer to Figure 30 and Figure 31. Figure 30: Report View CANNON Instrument Company | Appendix 1 – Test Reports... -
Page 85: Figure 31: Graph View
Figure 31: Graph View TE-BBR Instruction and Operation Manual... -
Page 86: Appendix 2 - Technical Note 0306131
Figure 32: TE-BBR Motor Stirrer/Plate and AC Power Connector Install Procedure 1. Drain the TE-BBR bath and remove the Load Frame, bath cover, stirrer and stirrer grid from the instrument. 2. Carefully turn the TE-BBR unit upside down to access the bottom panel. -
Page 87: Figure 33: Motor Stirrer Wiring Diagram
Avoid contact with internal electrical components during the procedure. 3. Remove the four Phillips screws securing the bottom motor mounting plate to the TE-BBR frame. 4. Cut the two wires to the motor stirrer and remove the motor and plate. Refer to Figure 32 5. -
Page 88: Appendix 3 - Technical Note 0611091
Replacement Procedure Caution: Turn off TE-BBR and remove MAINS power from the instrument heat exchanger power supply before beginning procedure. Instrument is heavy, use two or more people for this procedure. 1. Disconnect the Load Frame from the Control Unit. Remove the four bayonet signal connectors and the two air line connections at the rear of the Load Frame. -
Page 89: Figure 34: Supported Load Frame
2. On a lab table or bench, place two 16" high boxes or two 16" high stacks of books approximately 8" apart. 3. Carefully lift the Load Frame out of the TE-BBR bath. While maintaining the Load Frame in its vertical position, transfer it to the table and orient so that the Load Frame is suspended in its vertical position on the 16"... -
Page 90: Figure 36: Crack Seal Option Installation (Note Probe Location And Cut-Out Area For Beam Placement)
Refer to Figure 37. Figure 37: Crack Seal Option Installation with Adaptor for Normal Asphalt Beam BBR Operation CANNON Instrument Company | Appendix 3 – Technical Note 0611091... - Page 91 Crack Seal test. These new components are designed to rest on the Crack Seal Support (lower member). To calibrate the TE-BBR for the normal asphalt test, use the thick and thin beams provided with the instrument. TE-BBR Instruction and Operation Manual...
- Page 92 CANNON INSTRUMENT COMPANY® 2139 High Tech Road | State College, PA 16803 | USA 800-676-6232 | 814-353-8000 | Fax: 814-353-8007 sales@cannoninstrument.com | cannoninstrument.com...
