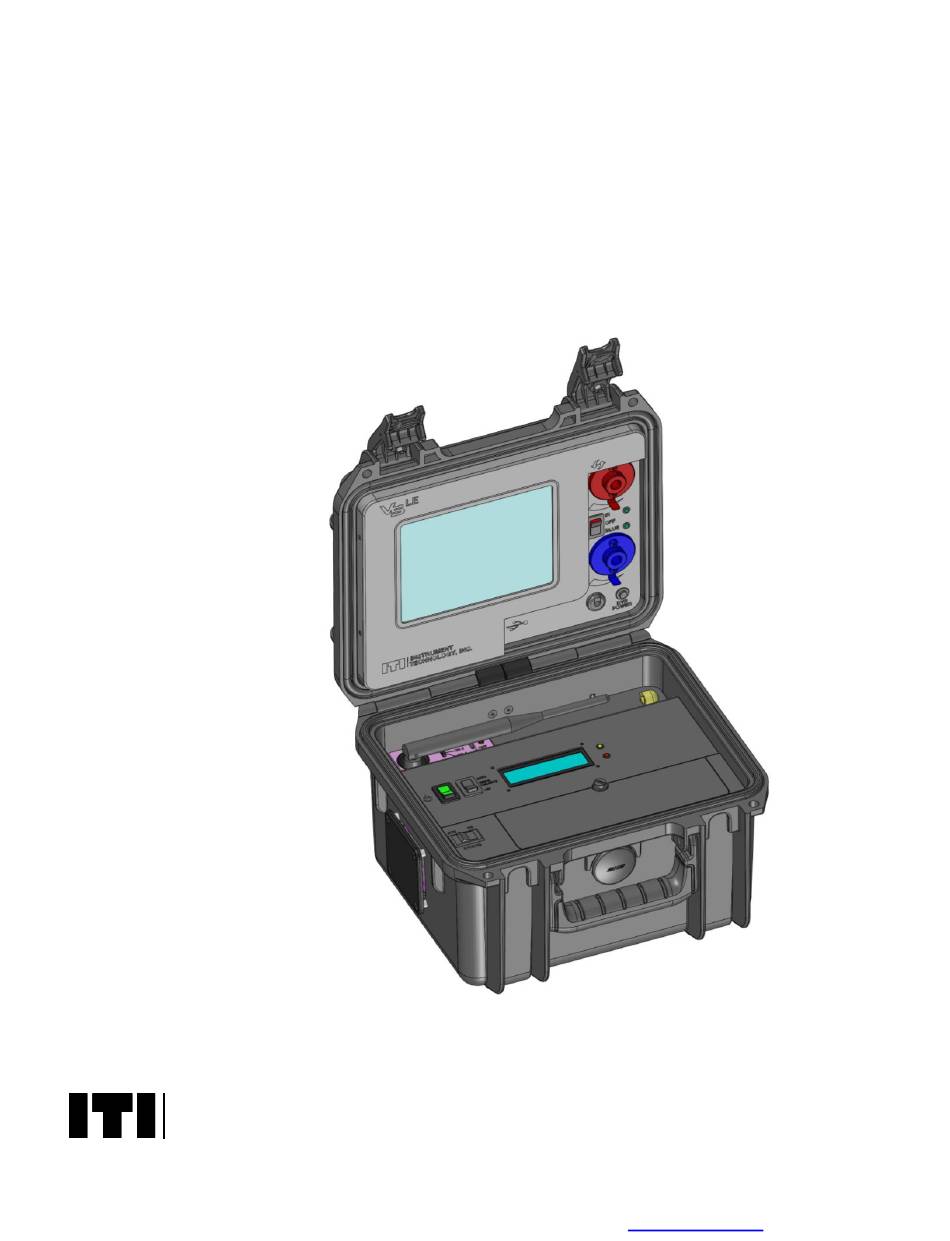

- Page 1 OPERATION MANUAL V5 LE NON-CONDUCTIVE VIDEOSCOPE SYSTEM INSTRUMENT TECHNOLOGY, INC. POB 381, Westfield, MA 01086 33 Airport Road, Westfield, MA 01085 Tel: (413) 562-3606 Fax: (413) 568-9809 Email: iti@scopes.com www.scopes.com v. 180907...
-
Page 2: Table Of Contents
TABLE OF CONTENTS Introduction……………………………………………………………………………………………….. 1.0 Important Safeguard and Operating Recommendations…………………………………… 2.0 Product Overview …………………………………………………………………………………. 3.0 System Setup ……...………………………………………………………………………………. 4.0 Videoscope ……...…………………………………………………………………………………. 4.1 Focus …………………………………………………………………………………………. 4.2 Articulation……………………………………………………………………………………. 4.3 Articulation Locks …………………………………………………………………………… 5.0 Basic Operating Instructions ……………………………………………………………...……. 5.1 Turning the Power ON ……………………………………………………………………..5.2 Turning the Power OFF……………………………………………………………………... - Page 3 8.0 System Settings and Information………………………………………………………………… 8.1 System Settings……………………………………………………………………....8.2 System Information………………………………………………………………………….. 9.0 Battery and Battery Charger…………………………………………………………………….. 9.1 Battery Pack Specifications………………………………………………………………… 9.2 Battery Charger Specifications……………………………………………………………... 10.0 Light Sources …………………………………………………………………………………….. 10.1 White LED Light Source…………………………………………………………………… 10.2 Blue Light Source…………………………………………………………………………... 10.3 Infrared Light Source ……………………………………………………………………… 11.0 Wireless Link (Option)......................
-
Page 4: Introduction
There are no other express or implied warranties. ITI's sole obligation and purchaser's exclusive remedy for breach of any warranty shall be limited to repair or replacement of the product at the option of ITI. This warranty does not cover, and ITI will not be liable for any resulting direct, proximate, incidental or consequential damages. -
Page 5: Important Safeguard And Operating Recommendations
Microwave emitting source decreases exposure. Always turn device off when possible to avoid unnecessary exposure to Microwave energy radiation. Always consult this manual and ITI representatives before employing this product in high electrical powered application to prevent injury or death. -
Page 6: Product Overview
The articulation control enables the operator to move the tip around for general observation and/or inspection. The Videoscope is connected to the V5 LE Videoscope System. The V5 LE Videoscope System contains the controls to operate the Videoscope’s camera (see Figure 1). -
Page 7: System Setup
ETUP CAUTION: Never attach or remove the Videoscope portion of the V5 LE System from the Video Case control portion when powered (ON) as the camera system will be damaged. The system must always be shut off and preferably removed from Mains power connection, prior to setup or disassembly. - Page 8 1. Connect the Videoscope control cable video connector into the Main Videoscope Input connector located on side of V5 LE Videoscope System shown in Fig. 2 above. Connect the second connector, Videoscope control cable Light Input, into Light Source to be used.
-
Page 9: Videoscope
4.0 V IDEOSCOPE 4.1 F OCUS The objective lens in the Videoscope is fixed and cannot be adjusted. An object will be in focus if it is between 1.0 inch and infinity. 4.2 A RTICULATION CAUTION: Do not attempt to articulate Videoscope in the coiled state, catastrophic failure to the articulation system will occur from added stresses placed on the system. -
Page 10: Basic Operating Instructions
DVR, hold down the “DVR POWER” switch for 3 seconds, until you hear a “beep”, then release. Almost immediately the ITI splash screen will appear. This will stay on screen for about 30 seconds during the boot sequence after which the video image will display. -
Page 11: Turning The Power Off
URNING OWER To power OFF the V5 LE Videoscope System, the same two steps need to be taken, as for powering ON, but in reverse order. 1. Turn the monitor OFF. This is simply done by touching the POWER icon twice on the touch screen monitor (for a complete description of the touch screen controls, see TOUCH SCREEN MENU OPERATION section of this manual). -
Page 12: Main Control Panel
ONTROL ANEL The video camera controls and the main power switch are found on the MAIN CONTROL PANEL. . 6: C AMERA ONTROL ANEL 6.1 M OWER WITCH This switch turns ON and OFF both external AC and internal 12VDC circuits. 6.2 W (Videoscope input only) HITE... -
Page 13: Touch Screen Menu Operation
OUCH CREEN PERATION After turning ON the MAIN POWER SWITCH and the DVR (see 5.1 Turning the Power ON), with a video camera connected (either the Videoscope or an auxiliary camera) the only on screen display (OSD) is the Date and Time. -
Page 14: Photo Gallery
7.1.2 P HOTO ALLERY This icon takes you to the photo gallery screen. Here, the thumbnail images of the stills and video clips stored on the USB flash drive are displayed six (6) at a time. The border surrounding the thumbnail indicates red for JPEG and blue for m4v files. -
Page 15: Delete Files
7.1.2.1 D ELETE HILE IN HOTO ALLERY While in Photo Gallery, touching the DELETE icon will delete the selected file. Touch once to invoke delete option and a second time to delete the file from the USB flash drive. Touch BACK icon to return to live video. -
Page 16: Still Image Capture
7.1.3 S TILL MAGE APTURE Touch this icon to capture a still image. As mentioned in section 5.3, touching this icon once freezes the video image on screen leaving just the PHOTO and BACK icons visible. Also, a STILL message appears at the top right side of the screen. -
Page 17: Image Setup
7.1.5 I MAGE ETUP On the image setup screen the following image controls can be found: Contrast, Brightness, Saturation and Hue. Use the navigation controls up and down arrows to select the parameter you want to adjust, and then use the left and right arrows to make the adjustments. -
Page 18: Back
By touching the OSD icon the shown input screen will appear. On entry, the cursor appears at the start of the text line. The text line is 19 characters long. The first 3 positions are reserved for the file count number (which cannot be edited). -
Page 19: System Settings And Information
. 7: R ESET UTTON The system can then be power ON again the normal way outlined in section 4.0. This procedure can be carried out at any point during the use of the system. 8.0 S YSTEM ETTINGS AND NFORMATION 8.1 S YSTEM... -
Page 20: System Information
To set the Language or Date/Time, select Language, Clock Set option. Selects English language Language, Clock Set > English Selects German language On Screen Caption > German Selects Spanish language LCD Settings > Spanish Selects Italian language Composite Video Output Italian ... -
Page 21: Battery And Battery Charger
ATTERY AND ATTERY HARGER The V5 LE Videoscope System contains two 16VDC Li-Ion Battery packs. One battery pack located in the Battery Compartment and powers the system, and a spare battery pack located in the travel case. . 8: B... -
Page 22: Battery Pack Specifications
The V5 LE Videoscope System is designed to operate using external AC power supply or internal 12VDC supply. The V5 LE will automatically switch to internal 12 VDC if the AC power supply is disconnected. If the AC power supply is reconnected while running on internal 12VDC then the system will automatically switch to the 115VAC power supply. -
Page 23: Light Sources
OURCES The side panel of the V5 LE Videoscope System (see fig. 2) contains the white LED light source. The IR / Blue light sources are located on the IR/Blue Control Panel (see fig. 3). The top light source is the IR Light Source while the bottom is the Blue Light Source. -
Page 24: Blue Light Source
4. Turn the Light Source Power Switch / Light HOWN Intensity knob to OFF position when not in use. NOTICE: The White LED light source has no user replaceable parts. Contact ITI if repair is required. 10.2 B IGHT OURCE The Blue Light Source is used to supply a narrow frequency, high intensity, blue light, when a white light source is not appropriate for video and optical illumination. -
Page 25: Infrared Light Source
11.1 T RANSMITTER IDEO A wireless link is available to connect the V5 LE Videoscope System to a remote monitor. The transmitter is located inside the V5 LE Videoscope System case and is controlled with the Transmitter Control Panel. Operating Instructions:... -
Page 26: Receiver Pack
Using the V5 LE Videoscope System’s transmitter with a remote monitor requires a wireless receiver. The ITI Receiver Pack is compatible with the V5 LE system and requires only a power/video cable configured to mate it to a 12VDC power supply and a monitor. The receiver is frequently used with ITI’s Monitor Pack and Head Up Display, both have a viewing display monitor. -
Page 27: Head Up Display (Option)
ISPLAY PTION 12.1 S PECIFICATIONS ITI Model 126395 Heads Up Display includes: (1) Monocular Head-Up Display with Inline Interface Control Box and connector (1) Pair of Eye Glasses (1) Eye Glasses Protective Case This kit is intended to provide maximum resolution, portability and quick setup. -
Page 28: Troubleshooting Guide
Object distance too far or Use higher intensity LS object is extremely dark Dirt on external optical Clean optics surfaces Damaged Light Guide - Return to ITI for repair noticeable damage to LG jacket Image Not Clear Dirt on external optical Clean optics surfaces... -
Page 29: Product Specifications
14.0 P RODUCT PECIFICATION IDEOSCOPE Physical Specfications Diameter 8.0mm nominal Lengths, Available 2, 3, 4, 5, 6, 7, and 7.5 meters Articulation Angulation 120° minimum (Up, Down, Left, and Right) ¼” - 20 UN - 2B thread Mounting attachment Optical Specifications Field of View 80 degrees fixed Line of Sight... - Page 30 Average LED Lifetime 50,000 hours (based on LED manufacturer rated wattage and thermal operation). Video and Accessory I/O Video Input 10 pin connector Video Output Scope mounted ITI Monitor Misc. Features Text Overlay 1 line x 19 characters ENERAL PECIFICATIONS Power Requirements Direct Current 12 VDC, 6.3A...
-
Page 31: Instrument Care And Repair Policy
To proceed with the repair, ITI will require a purchase order for the full quoted repair price. 2) Decline Repair - Upgrade to a New Instrument Choosing this option requires a purchase order for the new equipment at its quoted price. ITI will ship out the next available unit.
