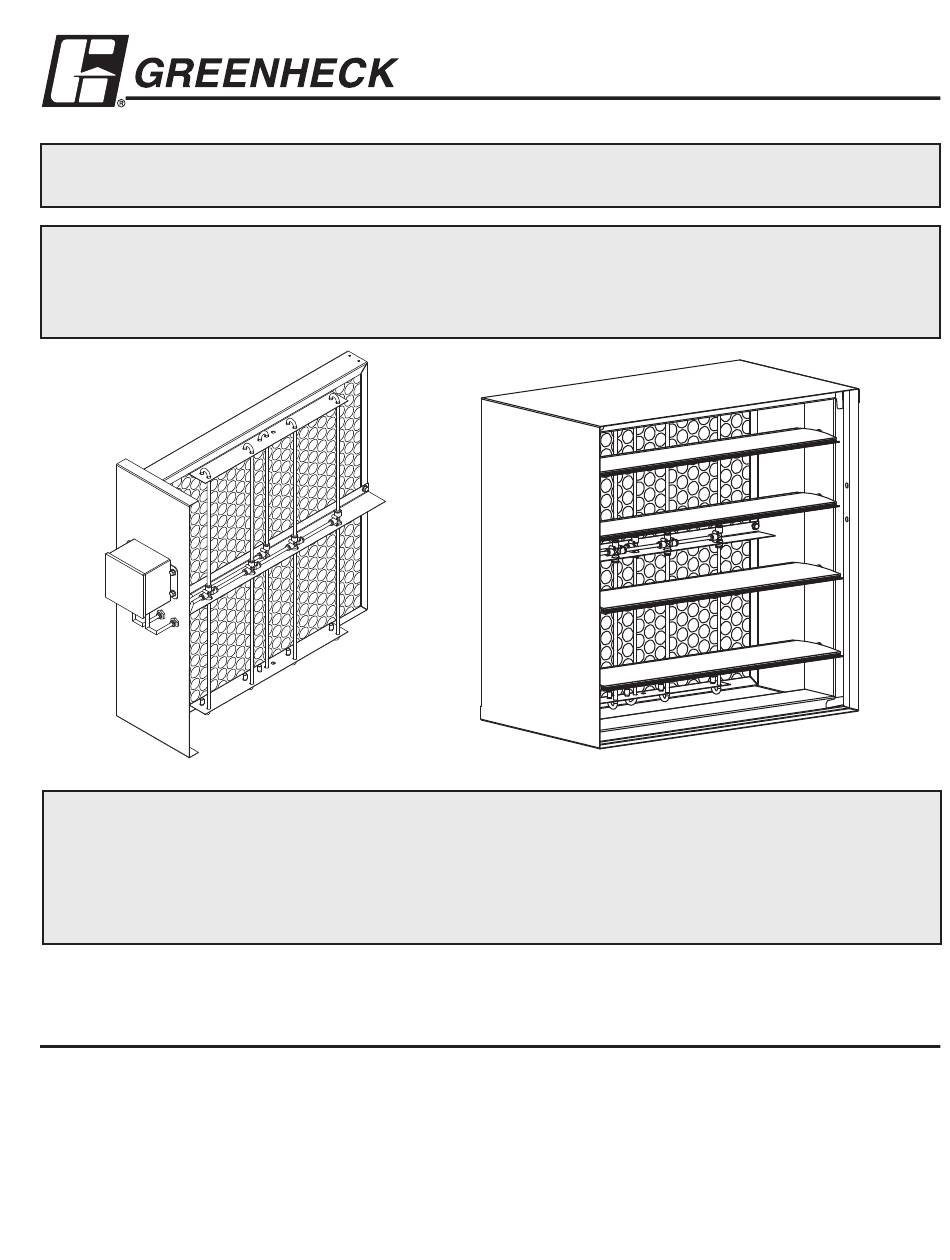

Installation, Operation, and Maintenance Instructions
This manual is the property of the owner, and is required for future maintenance. Please leave it with the
owner when the job is complete.
Improper installation, adjustment, alteration, service or maintenance can cause property damage,
injury or death. Read the installation, operating, and maintenance instructions thoroughly before
Upon receiving dampers, check for both obvious and hidden damage. If damage is found, record all
necessary information on the bill of lading and file a claim with the final carrier. Check to be sure that all parts
of the shipment, including accessories, are accounted for.
Dampers must be kept dry and clean. Indoor storage and protection from dirt, dust and the weather is highly
recommended. Do not store at temperatures in excess of 100°F (37ºC).
Due to continuing research, Greenheck reserves the right to change specifications without notice.
Pre-Installation Guidelines
The basic intent of a proper installation is to secure the AMS & AMD series damper into the opening in such a
manner as to prevent distortion and disruption of damper operation. The following items will aid in completing
the damper installation in a timely and effective manner.
1) Check the schedules for proper damper locations within the building. Visually inspect the damper for
damage.
2) Lift or handle damper using sleeve or frame. Do not lift damper using blades, linkage, actuators, pick-ups,
or jackshafting. When handling multiple sections assemblies, use sufficient support to evenly lift at each
section mullion (see drawing). Do not drag, step on, apply excessive bending, twisting, or racking.
SAFETY WARNING:
installing or servicing this equipment.
AMS
RECEIVING AND HANDLING
AMS & AMD Damper Series
Part number 474014
AMD-42
Advertisement
Table of Contents
Related Manuals for Greenheck AMD-42
Summary of Contents for Greenheck AMD-42
- Page 1 Dampers must be kept dry and clean. Indoor storage and protection from dirt, dust and the weather is highly recommended. Do not store at temperatures in excess of 100°F (37ºC). Due to continuing research, Greenheck reserves the right to change specifications without notice. Pre-Installation Guidelines The basic intent of a proper installation is to secure the AMS &...
- Page 2 Dampers in high velocity (2000 fpm [610m per second]) may require more bracing. Note: Greenheck dampers are specifically designed and engineered for structural integrity based on model and conditions. Attachment, framing, mating flanges, and anchoring of damper assemblies into openings, ductwork, or walls is the responsibility of the installer.
- Page 3 SAFETY DANGER ! Verify power requirements before wiring Electrical input may be needed for actuator. Greenheck is not responsible for this equipment. This work should be any damage to, or failure of the unit caused performed by a qualified electrician.
- Page 4 Q = Desired Airflow (cfm) C = Flow Set-point (Vdc) A = Face Area of the damper (ft 2 ) Example: the building desires 6,000 cfm through a 24”x 24” AMD-42 A= (24*24)/144 = 4 ft 2 C=6,000 / (200 * 4) =7.5 Vdc...
- Page 5 Optimal Placement for AMS & AMD Damper Series Fans 1.5D Centrifugal Fan Discharge Centrifugal Fan Inlet Vane Axial Fan Discharge Vane Axial Fan Inlet Elbows 90°Elbow Without Vanes 90° Vaned Elbow Sweep Elbow Round Sweep Elbow...
- Page 6 Optimal Placement for AMS & AMD Damper Series Dampers Transitions α α α α Transition 2 Transition 1 α α α α Transition 4 Transition 3 α α Transition 6 Transition 5 α α Transition 8 Transition 7...
- Page 7 Optimal Placement for AMS & AMD Damper Series Takeoffs Branch Takeoff B2A Branch Takeoff 3 Branch Takeoff 1 Branch Takeoff B2B Branch Takeoff 4 Air Handling Units Louver Air Handler with Louver Return Air Hood...
- Page 8 Tighten the linkage where required. WARRANTY Greenheck warrants this equipment to be free from defects in material and workmanship for a period of one year from the shipment date. Any units or parts which prove to be defective during the warranty period will be repaired or replaced at our option.
