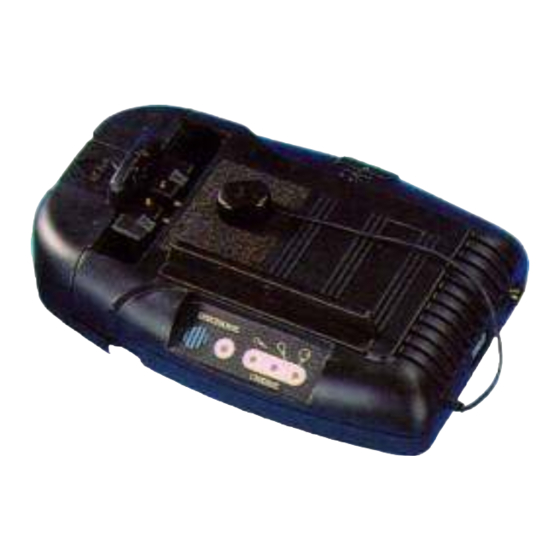

Desktop rapid universal charger and conditioner

Advertisement

Quick Links

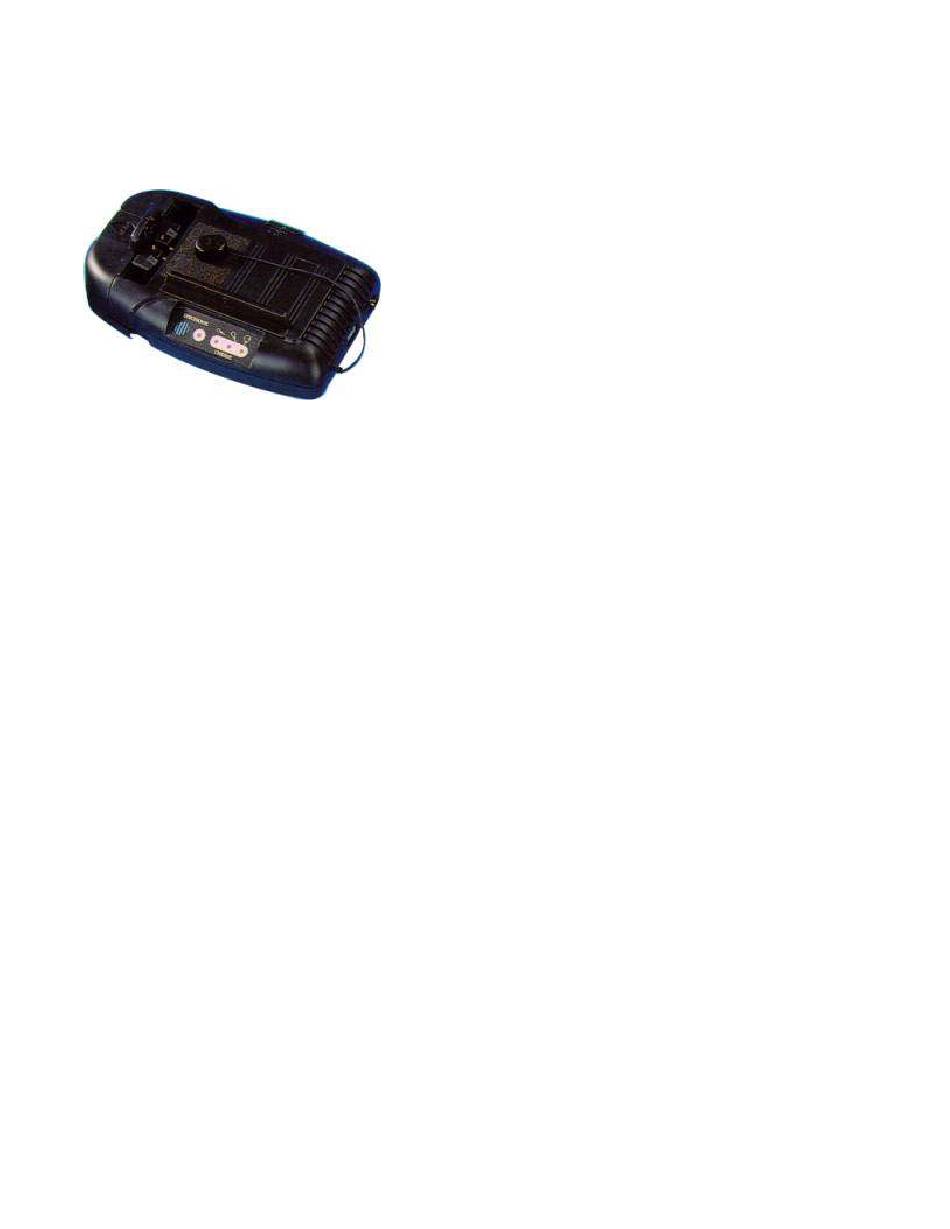

MH-C777 Universal Charger Conditioner Instruction Manual
MH-C777 Universal Charger
Conditioner Instruction Manual
Introduction
Thank you and congratulations for your purchase of the Maha MH-C777 Desktop Rapid Charger and
Conditioner! This innovative product simplifies charging of most rechargeable batteries either at home
or in the car. After reading the manual if you have any difficulties using your charger or understanding
this manual, please feel free to call tech support during business hours (8:00a.m.-5:00p.m.) pacific time
at 1-800-376-9992.

Safety Precautions

Use of this device is intended for charging and conditioning NiCD (Nickel Cadmium) and NiMH
(Nickel Metal Hydride) rechargeable batteries only.
Do not attempt to use product on non-rechargeable battery packs.
Check with the manufacturer of your rechargeable battery to see if the rapid charger rate is appropriate
(650mAh). Please follow the guidelines for your individual battery. Do not use device if not appropriate
for your battery!
Use only power adapters (wall and auto) supplied by Maha for your rapid charger.
Do not attempt to use rapid charger when starting your car. Unplug unit from cigarette lighter when
starting the vehicle.
Unit not intended for outdoor use. Use only in car or indoors.
Please familiarize yourself with the instructions and unit parts before first attempting to use. Also
familiarize yourself with your batteries' requirements.

Features and Benefits

http://www.bills2way.com/equip/c777manual.html
Page 1 of 7
10/25/2009

Advertisement

loading
Need help?

Need help?

Do you have a question about the MH-C777 and is the answer not in the manual?

Questions and answers

Summary of Contents for MAHA MH-C777

  • Page 1: Safety Precautions

    Conditioner Instruction Manual Introduction Thank you and congratulations for your purchase of the Maha MH-C777 Desktop Rapid Charger and Conditioner! This innovative product simplifies charging of most rechargeable batteries either at home or in the car. After reading the manual if you have any difficulties using your charger or understanding this manual, please feel free to call tech support during business hours (8:00a.m.-5:00p.m.) pacific time...
  • Page 2 Can be used as a desktop charger at home and work, or as a mobile charger for vehicle use (12v negative ground systems only). Both power connections (wall and auto) supplied by Maha. Within adjustment chamber, pin connectors can be moved left, right, up and down for exact connection with your battery pack.
  • Page 3 MH-C777 Universal Charger Conditioner Instruction Manual Page 3 of 7 (2): Guide Displacement Hole (10): Discharge button (3): Position Aid Stopper (11): Discharge indicator (4): Adjustment Bar (12): Charge status indicator (5): Contact Adjustment Arm (13): Magnet (Position aid) (6): Polarity switch...
  • Page 4 MH-C777 Universal Charger Conditioner Instruction Manual Page 4 of 7 Trial and error method Open adjustment chamber of the charger to allow for easy movement of the connector pins. The adjustment arms that the pins are connected to freely move left, right, up and down. Randomly align the charger contacts with two of the battery pack pins;...
  • Page 5 · To simplify the alignment process, Maha has designed a scale system beneath the adjustment arms which are marked with measurements. These markings can be used in conjunctions with a chart provided in this manual.
  • Page 6: Specifications

    MH-C777 Universal Charger Conditioner Instruction Manual Page 6 of 7 Model Charge Contacts Radio Contacts Flashes MH-FNB-12 A= 1 8/16 B= 2 3/16 A= 2 B= 2 5/16 MH-FNB-17 A=2 B=2 4/16 A= 2 B=2 5/16 MH-FNB-27 A=1 8/16 B= 2 4/16...
  • Page 7 MH-C777 Universal Charger Conditioner Instruction Manual Page 7 of 7 Input Power: 12V~18V DC 800mAh Rapid Charge Current: 650mA Trickle Charge Current: 40mA Discharge Current: 400-450mA Primary Detection Sensor: Negative Delta V Secondary Detection Sensor: Delta T Acceptable Battery Voltage: 4.8V~12V (wall); 4.8V~9.6V (car) Dimension: 180mm X 120mm X 45mm Maha Communications, Inc.
