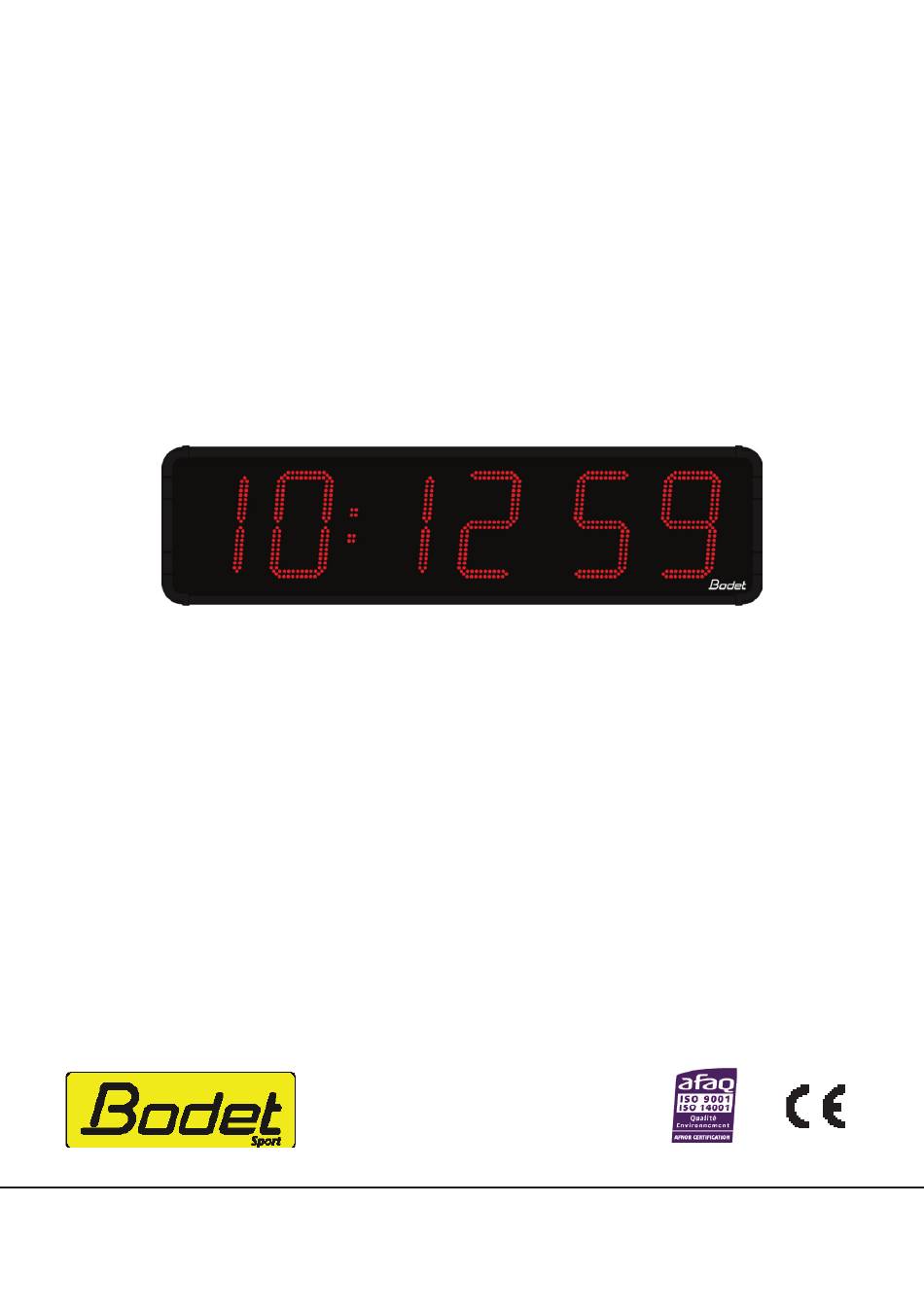

CHRONOLED
Timer/Stopwatch Display
Installation and operating manual
BODET SA
1 rue du Général de Gaulle
49340 TRÉMENTINES FRANCE
Tel. 02 41 71 72 99
Fax 02 41 71 72 02
www.bodet-sport.com
Ref. 606985G
1
Upon receipt, always check the product for damage during shipment. If any is found, you may file a damage claim with the carrier.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CHRONOLED and is the answer not in the manual?

Questions and answers

Summary of Contents for Bodet CHRONOLED

  • Page 1 CHRONOLED Timer/Stopwatch Display Installation and operating manual BODET SA 1 rue du Général de Gaulle 49340 TRÉMENTINES FRANCE Tel. 02 41 71 72 99 Fax 02 41 71 72 02 www.bodet-sport.com Ref. 606985G Upon receipt, always check the product for damage during shipment. If any is found, you may file a damage claim with the carrier.

  • Page 2: Table Of Contents

    II.1 Opening the Chronoled ................ 4 II.2 Wall mounting ..................4 II.3 Mounting on car roof rack holder (Chronoled 15 and 25 only) ..... 5 II.4 Mounting on tripod stand (Chronoled 15 and 25 only) ......6 III - Electrical installation ..............7 III.1 Power supply ..................

  • Page 3: I - Overview

    I - Overview The Chronoled is an outdoor count up/countdown timer. - Very high luminosity SMD LED with 6 digits and 3 dots. - Display: time of day with second, timer (count up, countdown, day), score. - Supply voltage: 110/230 v AC.

  • Page 4: Mechanical Installation

    Chronoled. II.2 Wall mounting Fasten the unit to the wall using 4 (Ø6) screws for the Chronoled 15 and 25 or 4 (Ø8) screws for Chronoled 45 (the screws are not supplied) and the appropriate wall anchors (wall plugs).

  • Page 5: Ii.3 Mounting On Car Roof Rack Holder (Chronoled 15 And 25 Only)

    A. 3/ Install the Chonoled-brackets assembly on the roof rack bars using the the hand-screws as in C Caution : when the Chronoled is mounted on the roof, drive the vehicle slowly (60 km/h maximum). Nut HU M6 Zn Screw H M6x16 Flat washer Ø6 Zi...

  • Page 6: Ii.4 Mounting On Tripod Stand (Chronoled 15 And 25 Only)

    II.4 Mounting on tripod stand (Chronoled 15 and 25 only) 1/ Fasten the Chronoled bracket onto the base plate of the stand with the 4 screws as in B. 2/ Fasten the Chronoled (or both Chronoleds if double side) on the bracket with 4 screws as in A.

  • Page 7: Electrical Installation

    115v, first remove the digit card in front of the power supply and then the Z shape bracket to have access to the switch. Connect the Chronoled power cord to 115/230v AC mains or the 12v DC power inverter (cigarette lighter) if it is used.

  • Page 8: Iii.4 Chronoleds In Series

    Up to 8 Chronoleds can be connected in series (1 master and up to 7 slaves). - Set one Chronoled as master via the dips, then all the other Chronoled as slave (each slave Chronoled must have a unique number). See table above.

  • Page 9: Paramater Setting

    Chronoled or the HF remote control. The push-buttons are accessible by removing the right side of the Chronoled. Caution: to prevent short circuits, do not insert any metallic objects in the Chronoled. S : ‘S’ key + : ‘R’ key...

  • Page 10: Iv.1 Main Menu

    A parameter is validated only after pressing [S]. IV.1 Main menu The main menu provides access to all setting functions of the Chronoled display. It contains 5 menus : CHRO : sets timing functions (count up/count down).

  • Page 11: Iv.2 Chro Menu: Timer/Stopwatch Settings

    IV.2 CHRO menu: count and countdown setting Enter the CHRO menu (see page 10). A message flashes (up, down or day). Choose the count mode with the [R] key. «Up» starts timing, «down» starts countdown timing, «dayd» starts a day countdown and «dayU»...
  • Page 12 Minutes. On the last hour the countdown Changes to Minutes/ Seconds countdown. 7. The display returns to the normal mode with the timer mode being selected (see ‘[Sel] push button (inside Chronoled only)’, page 9 for the operation of the timer).

  • Page 13: Iv.3 Score Menu: Score Entry

    V.3 SCORE menu: entering scores Enter the SCORE menu (see page 10). The S or + key (top left) increments home scores by one point. The M or – key (bottom left) decrements home scores by one point. The R or + key (top right) increments visitor score by one point.
  • Page 14 The day flashes. Modify with [R]. Press [S] to validate the day. 10. The month flashes.Modify with [R]. 11. APress [S] to validate the month. 12. The display goes back to the normal mode after the time and date setting has been validated.

  • Page 15: Iv.5 Prog Menu: Luminosity, Relays And Time Base Adjusments

    The ‘ru’ mode (run) allows to restart automatically and permanently the same count/countdown (at the end of a count/ countdown, the Chronoled returns automatically to its initial value and restarts the same count/countdown). The ‘St’ mode (stop) stops at the end of count/countdown.

  • Page 16: Iv.6 Tech Menu

    IV.6 Menu TECH : Enter TECH menu: press «SEL» or «S» or «M» for 1 sec. Select the menu by pressing [+]. Validate with [S] and proceed to the selection of the synchronisation mode. The synchronisation mode flashes (Independent «Ind», Radio «rAd», GPS «GPS»...
  • Page 17 On a non Fixed date: - Modify the le 3 digit corresponding to the week number within the month (1 to 5) with [R]. Validate with [S]. - Modify the 4 digit corresponding to the number of the day within the week (1 to 7: 1 Monday and 7 Sunday) with [R].
  • Page 18 Central Europe zone “Eur” (France, Germany, etc.) (GMT +01 hour). Winter > Summer = last Sunday of March at 2h00. Summer > Winter = last Sunday of October at 3h00. Wertern Europe zone “Eu_1” (England, Portugal, Irlande) (GMT +00 hour). Winter >...

  • Page 19: Iv.7 Test Menu: Panel Test And Version Display

    For HMS, the display is 1 2 3 4 5 6. The Chronoled software version number is displayed. Press the [S] or [T] key to return to the normal mode. V - Types of time synchronisation Independent Mode «Ind»...

  • Page 20: Technical Features

    Repeater or mains: M20 – sheath Ø 7 to 10 mm Settings saved in case of mains power off Permanent Operating temperature -20°C to +50°C Protection rating IP 54 / IK 07 CHRONOLED 45 2000 2400 CHRONOLED 25 1500 90,5 CHRONOLED 15...
