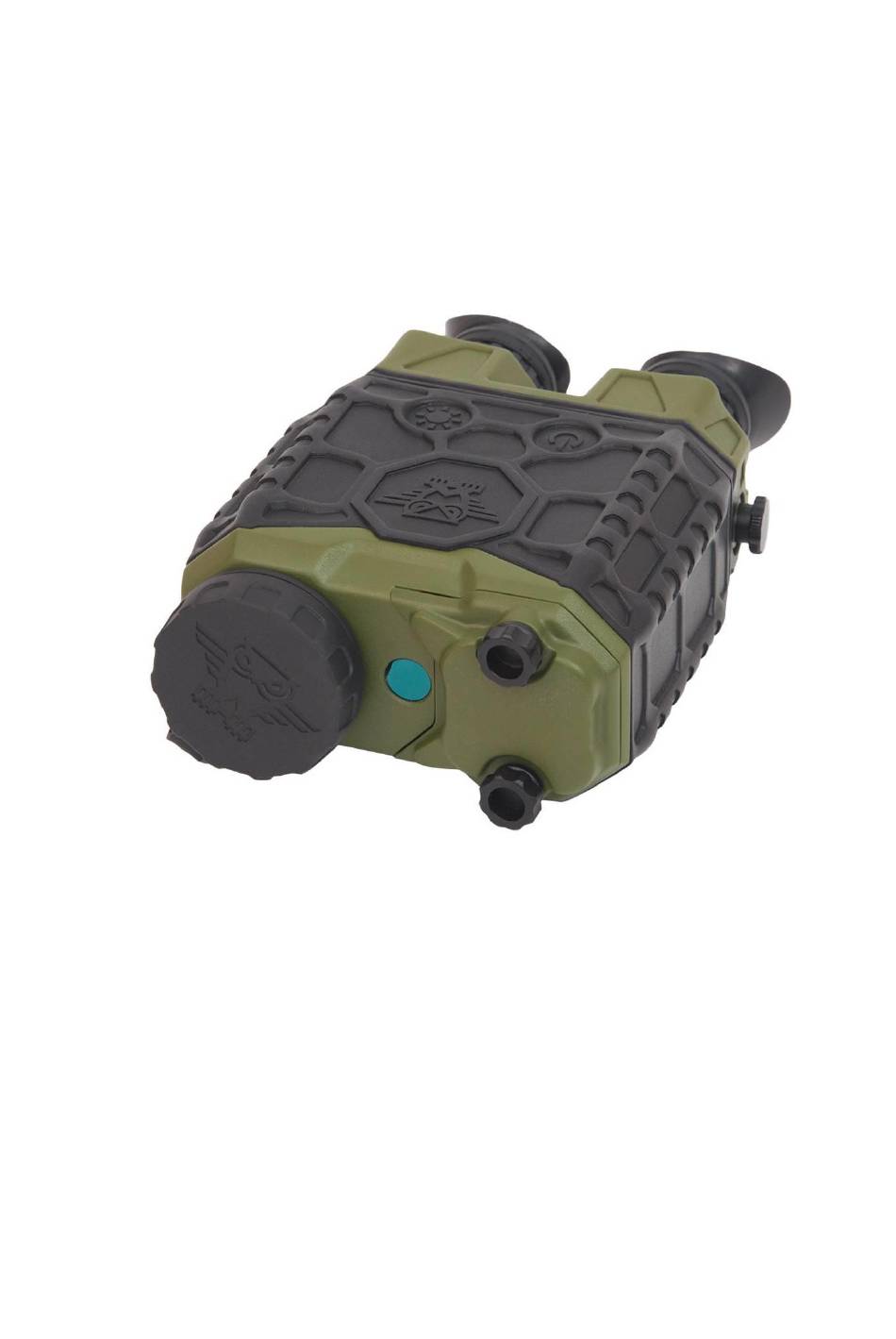

- Page 1 INSTRUMENT FOR COVERT ELECTROOPTICAL SURVILLENCE SYSTEMS DETECTION «GCU-OSD10» OPERATING MANUAL 2018...
- Page 2 The present Operating manual is intended for correct and safe operation of the instrument «GCU-OSD10» (further in the text referred to as «Instrument») designed for detection of covert electrooptical surveillance systems and for eval- uation of the Instrument technical condition with the goal to make decision whether it should be sent for repair.
- Page 3 1.3. Delivery set 1.3.1. The delivery set is in accordance with the table 1. Table 1 Description Q-ty Note Instrument «GCU-OSD10» Battery Li-Ion type 18650, 3.7 V Charging unit Mains adapter for charging unit Video cable Cleaning tissue Package-case Operating manual Buttery delivered uncharged.
- Page 4 Delivery set: 1. GCU-OSD10 device; 2. Video cable; 3. Optionally LCD-monitor (with attachment bracket); 4. Charging unit; 5. AC/DC converter; 6. Rechargeable battery; 7. Protective packing. Plastic case with foam-rubber pad. 1.4. Principal of operation. 1.4.1. The principal of operation is based on the cat’s eye (retroreflection) phenomena, i.e. on ability of optical objects to reflect the transmitted radiation in the opposite direction at an angle close to angle of sight.
- Page 5 Switch On/off button Laser power adjustment Battery compartment Fig. 3. «GCU-OSD10» controls 1.4.4. Example of image obtained with the help of «GCU-OSD10», Fig. 4. Battery level indicator Keyline of laser scanning field Detected object Laser power indicator (%) Laser scanning field...
- Page 6 Unique factory number; 1.6. Packaging. 1.6.1. The instrument «GCU-OSD10», battery, charging unit, mains adapter for charging unit, video cable and operating manual are put in standard packing (robust, shock- and moisture proof plastic package-case). 1.6.2. Optionally standard plastic package-case can be packed in the transportation packing (plywood box).
- Page 7 2.3. Running the Instrument 2.3.1. It is required to fulfill the following steps to run the Instrument: • Switch on the instrument by pressing and keep pressed for approx. 2 seconds button “ON\OFF”; • Orient the instrument lens in the direction of examined area; •...
- Page 8 Battery graphical symbol displayed on The battery is wrongly inserted in To insert battery in the charging unit in a right the charging unit screen start blinking the charging unit. There is no reli- manner to provide reliable contact. and it dimly glow. able contact with the charging unit.
