Summary of Contents for wtw MIQ/JBR

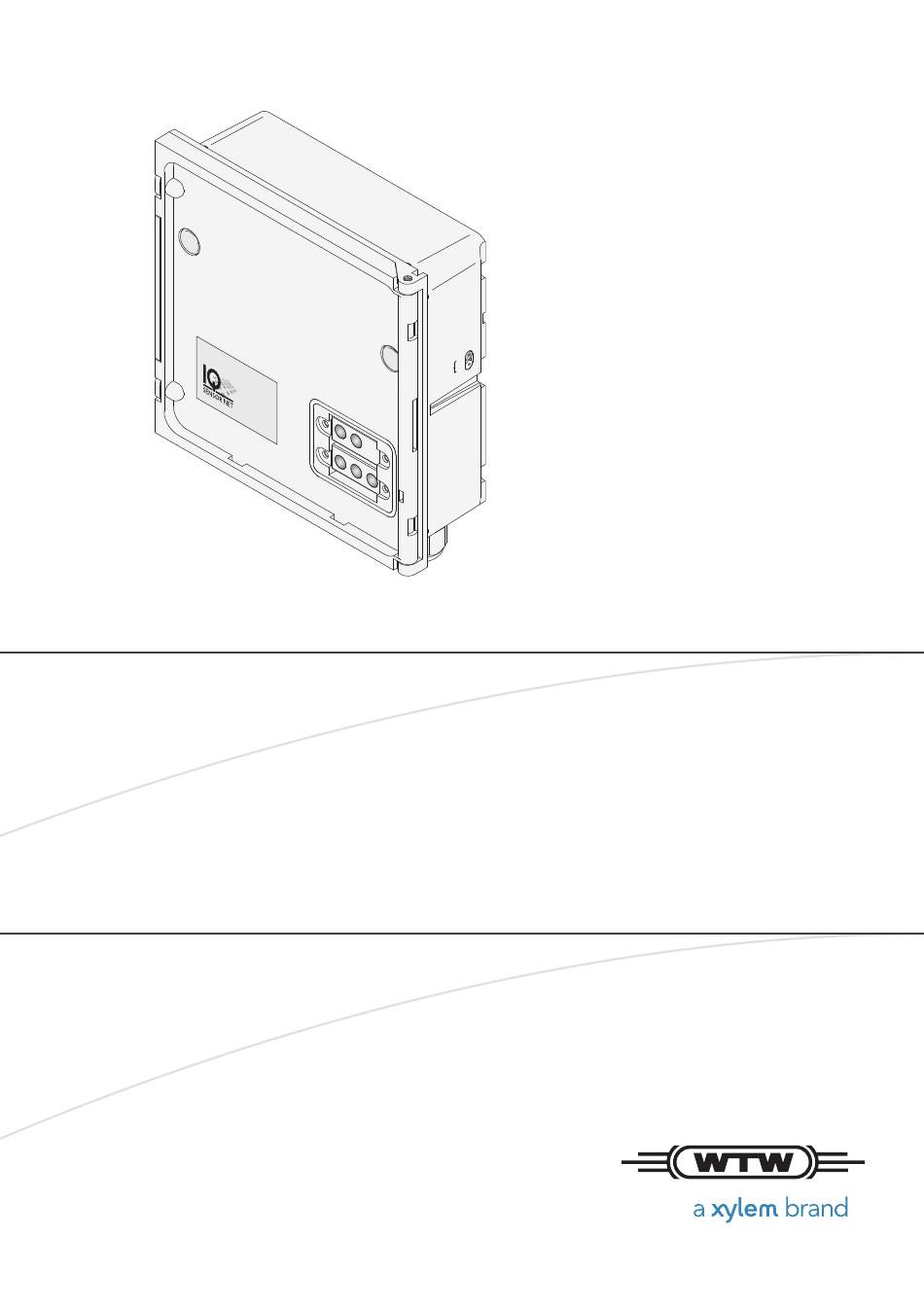

- Page 1 OPERATING MANUAL ba64106e03 03/2018 P o w MIQ/JBR IQ S SIGNAL AMPLIFIER MODULE ENSOR...
- Page 2 MIQ/JBR © 2017 Xylem Analytics Germany GmbH Copyright Printed in Germany. ba64106d03 03/2018...
-
Page 3: Table Of Contents
General data of MIQ modules ....14 MIQ/JBR ........16... -
Page 4: Overview
Overview MIQ/JBR Overview How to use this component operating manual Structure of the IQ Sensor Net Operating Manual IQ S ENSOR operating manual System Operating Manual (Ring Binder) Operating Operating Operating Manual Manual Manual IQ Sensor MIQ Module Option (e.g. Fieldbus) Components and Options Fig. -
Page 5: Features Of The Miq/Jbr
MIQ/JBR (Junction Box Repeater). If the sum of all cable lengths (including the SACIQ sensor connection cable) is more than 1000 m, a MIQ/JBR signal amplifier module must be installed in the system. To amplify the signal, the MIQ/JBR signal amplifier module divides the IQ S into two signal ranges (section A, section B). -
Page 6: Safety Instructions
Safety instructions MIQ/JBR Safety instructions Safety information 2.1.1 Safety information in the operating manual This operating manual provides important information on the safe operation of the product. Read this operating manual thoroughly and make yourself familiar with the product before putting it into operation or working with it. The operating manual must be kept in the vicinity of the product so you can always find the information you need. -
Page 7: Safe Operation
MIQ/JBR Safety instructions Safe operation 2.2.1 Authorized use The authorized use of the MIQ/JBR consists of its use as a signal amplifier module in the IQ S . Only the operation according to the instructions ENSOR and technical specifications given in this operating manual is authorized (see chapter 5 T ). -
Page 8: Installation
All electric cables are fed from below via prepared openings in the enclosure of the MIQ/JBR. Cable glands with different clamping ranges are included with the MIQ/JBR to provide sealing between the cable and enclosure as well as for strain relief. Select the matching cable gland for the respective cable diameter: ... - Page 9 MIQ/JBR Installation Large, clamping range 7 to 13 mm. This cable gland is required for cable sheaths with an outside diameter of more than 10 mm and is screwed into the enclosure via an extension piece. sealing ring 20 x 15 x 1 mm...
- Page 10 Outside contacts The outside contacts on the back and front side of the module enclosure are connected with section A. Thus, all modules connected to the MIQ/JBR by stack mounting are connected to section A. A module can only be connected to section B via the 2 SENSORNET connections for section B on the terminal strip.
- Page 11 Bi-directional signal amplifier Outside contacts on the module enclosure Terminator switch For the setting of the terminator switches within a signal range, the same rules apply as for systems without MIQ/JBR (see chapter I of the NSTALLATION IQ S system operating manual).
- Page 12 = longest cable section of a signal range Fig. 3-3 Settings of the SN terminator switch for an IQ S system with 2 MIQ/JBR modules ENSOR The proceeding to determine the longest cable section can be found in chapter I...
-
Page 13: Maintenance And Cleaning
MIQ/JBR Maintenance and cleaning Maintenance and cleaning Maintenance The MIQ/JBR requires no special maintenance. The general maintenance of IQ S components is described in the IQ S system ENSOR ENSOR operating manual. Cleaning The cleaning of IQ S components is described in the IQ S... -
Page 14: Technical Data
Technical data MIQ/JBR Technical data General data of MIQ modules Dimensions 144.0 52.2 Front view: Side view: 115.0 11.0 70.0 16.5 Rear view: Stack mounting: Fig. 5-1 Dimension drawing of MIQ module (dimensions in mm) Mechanical Maximum number of structure... - Page 15 MIQ/JBR Technical data Weight Approx. 0.5 kg Type of protection IP 66 (not suitable for conduit connection). Cable glands Suitable for cable 4.5 - 10 mm or sheath diameter 9.0 - 13 mm Ambient Temperature conditions Mounting/installation/ + 5 °C ... + 40 °C (+ 41 ... +104 °F)
-
Page 16: Miq/Jbr
Technical data MIQ/JBR MIQ/JBR Electrical data Nominal voltage Max. 24 VDC via the IQ S (for details, see ENSOR chapter T of the ECHNICAL DATA IQ S system operating manual). ENSOR Power consumption approx. 0.2 W Protective class Terminal IQ S... - Page 18 For more information on how Xylem can help you, go to xyleminc.com. ® Service address: Xylem Analytics Germany Sales GmbH & Co. KG Dr.-Karl-Slevogt-Str. 1 82362 Weilheim Germany Tel.: +49 881 183-325 Fax: +49 881 183-414 E-Mail wtw.rma@xyleminc.com Internet: www.WTW.com Xylem Analytics Germany GmbH Dr.-Karl-Slevogt-Str. 1 82362 Weilheim Germany...
