Power Supply:
Motor Power Consumption:
Electric Lock Output:
Accessory Power Output:
Input Power Fuse:
Motor Power Fuses:
307.334.2865
Fax: 307.334.2028
P.O. Box 1384
|

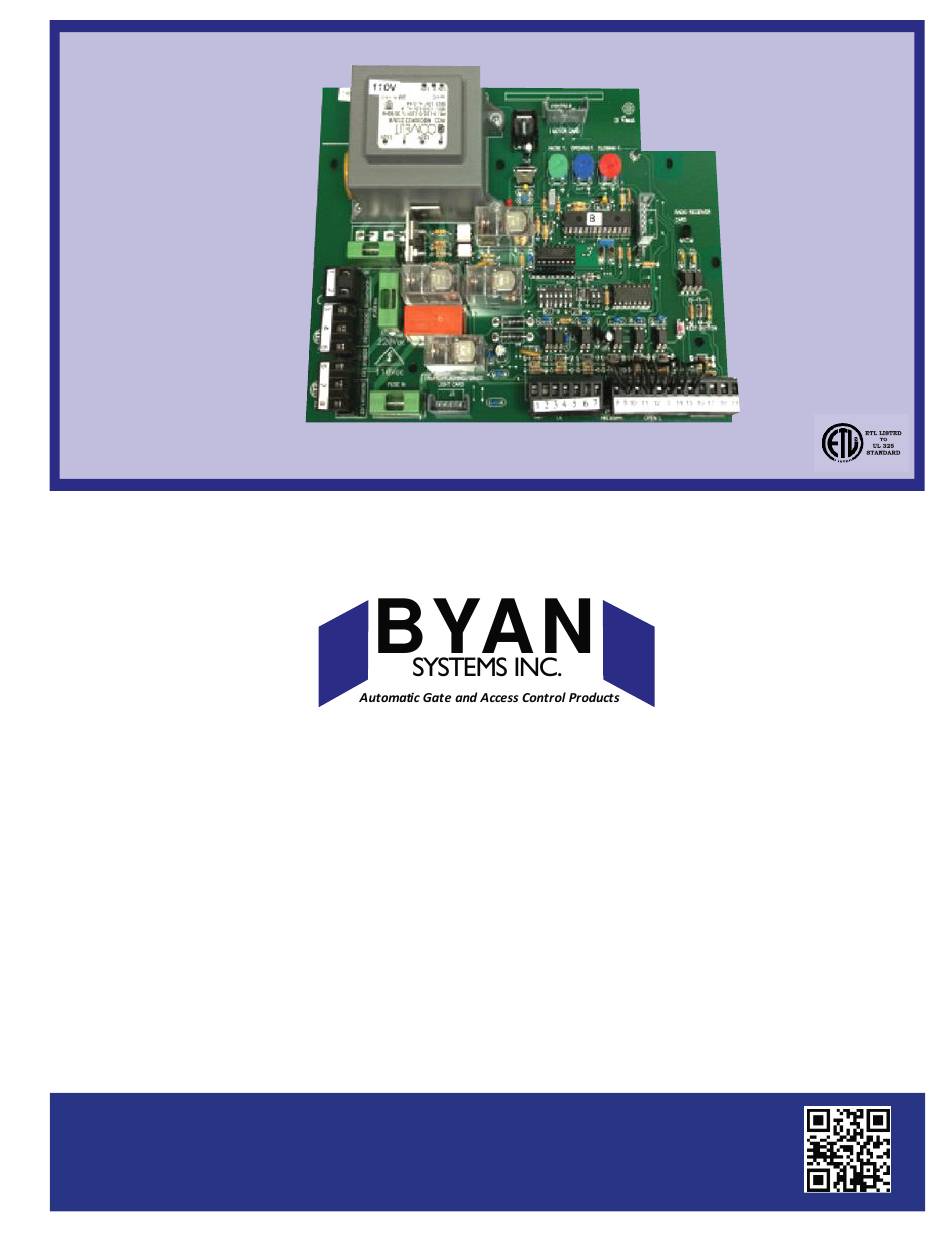

G2M Control Board
Installation and Operators Manual
Specifications:
413 South Linden Street
Single-Phase 115-Volt or 220-Volt 50/60 Hz AC
12-Volt DC 1-Amp Maximum
24-Volt AC 1-Amp Maximum
2-Amp, 250-Volt; 5mm x 20mm Tubular Glass
6-Amp, 250-Volt; 5mm x 20mm Tubular Glass
www.byan.com
Toll Free: 800.223.2926
|
Lusk, Wyoming 82225
Up to 550 Watts or 3/4 HP
|
G2M CLASSIC
Rev. 2018.1.1
Advertisement
Table of Contents
Summary of Contents for Byan G2M
- Page 1 G2M Control Board Installation and Operators Manual Specifications: Power Supply: Single-Phase 115-Volt or 220-Volt 50/60 Hz AC Motor Power Consumption: Up to 550 Watts or 3/4 HP Electric Lock Output: 12-Volt DC 1-Amp Maximum Accessory Power Output: 24-Volt AC 1-Amp Maximum Input Power Fuse: 2-Amp, 250-Volt;...
-
Page 2: Table Of Contents
Table of Contents PRODUCT WARNING ............................. Page 3 G2M Board Description ............................Page 4 Terminal Information ............................Page 5 Power and Motor Run Terminal Table ........................ Page 5 Commercial Power Hook-Up ..........................Page 5 Accessory Terminal Table ........................... Page 6 Accessory Hook-Up ............................. -
Page 3: Product Warning
THIS PRODUCT SHOULD ONLY BE INSTALLED AND / OR MODIFIED BY QUALIFIED TECHNICAL PERSONNEL. READ ALL OWNER’S MANUALS AND SAFETY INSTRUCTIONS G2M CLASSIC Rev. 2018.1.1... -
Page 4: G2M Board Description

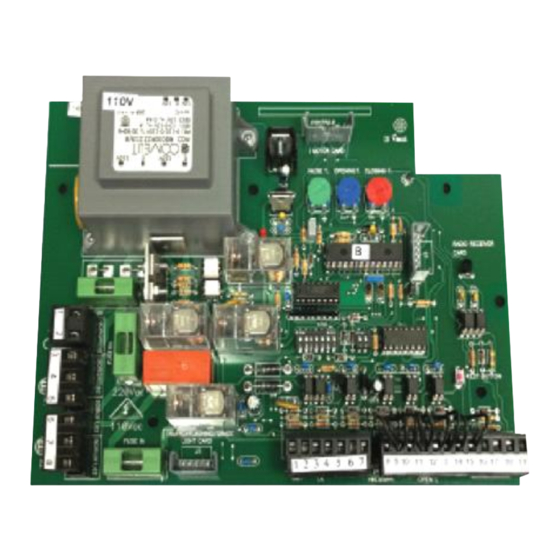

BYAN SYSTEMS G2M CONTROL BOARD The G2M is a single phase, microprocessor controlled unit. It is capable of controlling up to two ¾-hp, 115-volt or 220-volt AC motors. Two different plug in accessory cards are available for the G2M: a leaf delay card (which comes standard with every board), and a traffic light card (which is available separately). -
Page 5: Terminal Information
Terminal Strips: There are two sets of terminals on the G2M control board. The first terminal strip is the Power and Motor Run Terminal Block, located on the left side of the board below the transformer. This is where the incoming commercial power and the outgoing power to the operators are connected. -
Page 6: Accessory Terminal Table
The second terminal strip is the Accessory Terminal Strip. This is where ALL of the accessories are connected to the controller board. This terminal strip is located on the bottom right of the G2M Controller Board. This terminal strip consists of two socketed blocks to allow you to unplug the connector as a whole without removing wires. The drawings on Pages 10-12 are color-coded for ease in determining wiring connections for accessories. -
Page 7: Accessory Hook-Up
Accessory Hook-Ups*: There are many accessories available that are compatible with the G2M that will give the end user different options for safety, security, and system operations. Since it would be impossible to outline all possible combinations, we will simply outline a few of the most common. Keep in mind; these instructions are specific to the brand and model most commonly used by Byan Systems. -
Page 8: Timing Potentiometers
Option Name Option Description When turned on, maximum opening and closing time is extended from 30 Seconds to 1 Minute and maximum pause time is Double Timing extended from 45 Seconds to 1 Minute 30 Seconds. G2M CLASSIC Rev. 2018.1.1... -
Page 9: 12X10 Prewire Layout
Byan Systems 12 x 10 Prewire Layouts: Leaf Delay Card Pause Opening Closing Timer Timer Timer Transformer 2 Amps DIP Switches Test Button Traffic Light Card Flashing Light Card ACCESSORY TERMINALS Garage Light Card 5 6 7 11 12 13 14 15... -
Page 10: 20X16 Prewire Layout
Terminal Block 5 Terminal Block 6 Daughter Card JP 1 (Optional) MAG-LOCK RELAY 6 Am ps (Optional) SHADOW RELAY POWER TERMINALS Terminal Block 2 Terminal Block 4 Terminal Block 1 -10- G2M CLASSIC Rev. 2018.1.1... -
Page 11: 24X20 Prewire Layouts
1 2 3 4 JP 1 SHADOW 6 Amps RELAY (Optional) MAG-LOCK POWER TERMINALS RELAY (Optional) Terminal Block 9 Daughter Card JP 1 6 Amps SHADOW RELAY POWER TERMINALS (Optional) MAG-LOCK RELAY (Optional) Terminal Block 10 -11- G2M CLASSIC Rev. 2018.1.1... -
Page 12: 24X20 Prewire Terminal Strip Guide
INTERRUPTED HIGH VOLTAGE 115-Volt AC (WHITE) INTERRUPTED HIGH VOLTAGE 115-Volt AC (BLACK) INTERRUPTED HIGH VOLTAGE 115-Volt AC (WHITE) NOTE: WHEN LEAF DELAY IS ENGAGED, MOTOR 1 WILL OPEN FIRST AND MOTOR 2 WILL CLOSE FIRST. -12- G2M CLASSIC Rev. 2018.1.1... -
Page 13: Troubleshooting Guide
Reverse the black and red directional wires either at the operator running the switched or at the board. wrong direction If, at any time, you have a question concerning the Byan Systems G2M control board, call (800) 223-2926 for technical support. -13- G2M CLASSIC Rev. 2018.1.1... -
Page 14: T2M Leaf Delay Card
Motor Two Limit Switch Common Installation Instructions: To install the leaf delay card, simply plug it into the card slot marked “2 Motor Card” on the G2M Control Board. Adjustment Procedure: 1. To set the amount of delay between the first leaf opening and the second leaf opening, turn the Open Delay Timer (left timer) with a small screwdriver. -
Page 15: Final System Warnings
FINAL SYSTEM WARNINGS Following all of the setup instructions, you should now have a working system with moving components. Byan Systems, Inc. issues the following warnings for your safety: READ ALL OWNER’S MANUALS AND SAFETY INSTRUCTIONS MOVING GATE CAN CAUSE SERIOUS INJURY OR DEATH. - Page 16 God. All implied warranties for fitness are limited in duration to sixty months from date of sale by BYAN SYSTEMS, INC. Some states do not allow for the length of the term of this implied warranty, so this limitation may not apply to you. This warranty by BYAN SYSTEMS, INC. is in lieu of all warranties expressed or implied.
