Installation Instructions
Installation Instructions
1 Rim Installation
1.1 Flywheel Installation

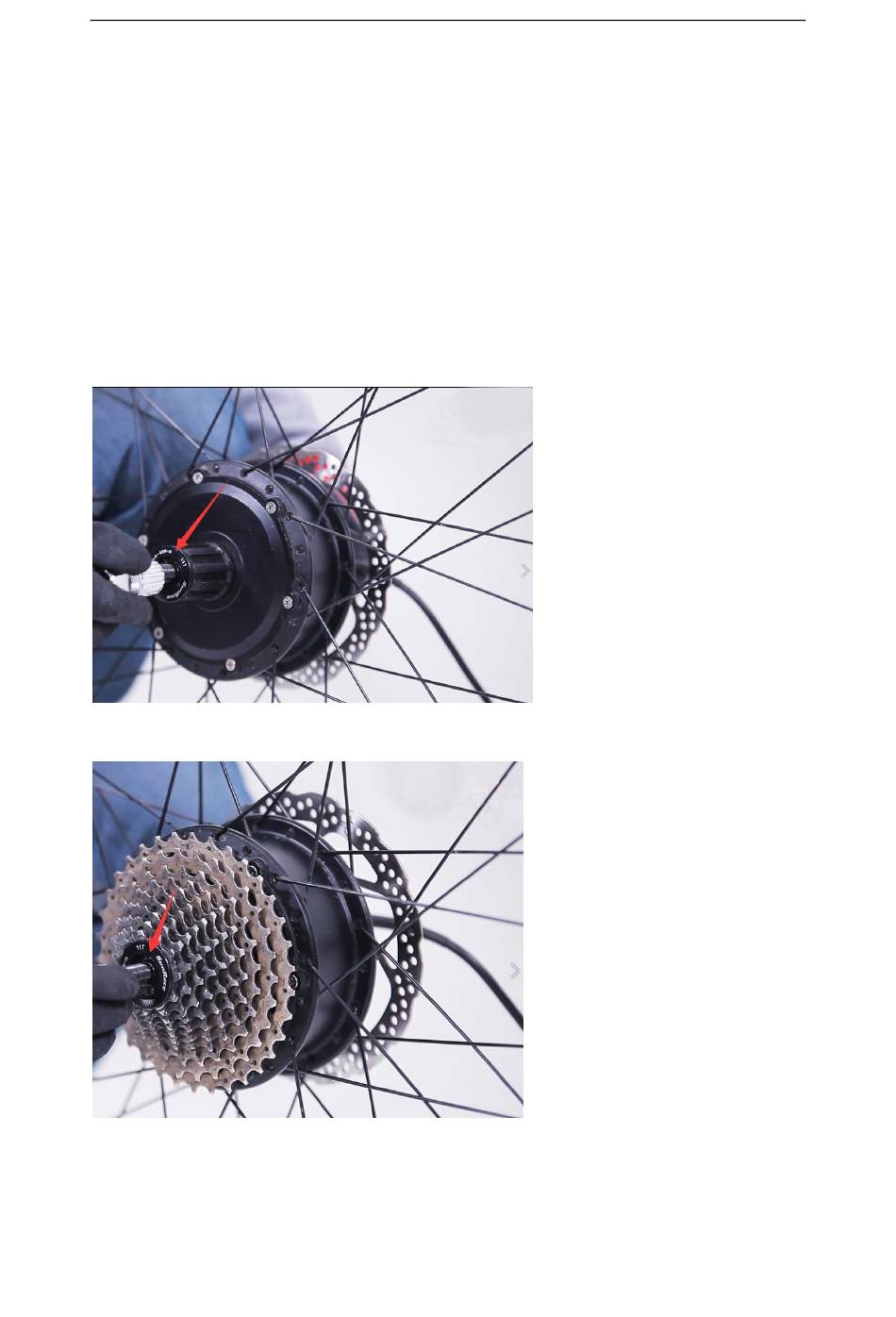

Remove the nuts and sensor cap from the cassette.
Install the cassette flywheel and lock the flywheel with the sensor cap. Note
that it must be installed with the flywheel sensor cap of the system, otherwise
there is no power output.
1 / 12
www.elecycles.com
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Summary of Contents for EleCycles SMA-Q
-
Page 1: Installation Instructions
Remove the nuts and sensor cap from the cassette. Install the cassette flywheel and lock the flywheel with the sensor cap. Note that it must be installed with the flywheel sensor cap of the system, otherwise there is no power output. 1 / 12 www.elecycles.com... - Page 2 Installation Instructions Screw the nut to the innermost. 2 / 12 www.elecycles.com...
- Page 3 Install the disc brake using the 6 screws in previous step. Note that it is necessary to use the disc break screws from the motor, using other disc brake screws may cause the motor unable to work due to the excessive length of the screws. 3 / 12 www.elecycles.com...
-
Page 4: Tire Installation
Installation Instructions 1.3 Tire installation Install the tire cushion Install inside and outside tire, be careful to install according to the direction of the tire. 4 / 12 www.elecycles.com... -
Page 5: Frame Installation
Installation Instructions 1.4 Frame Installation As shown in the picture, install the wheelset into the bike. Lock the wheel. 5 / 12 www.elecycles.com... -
Page 6: Controller Installation
Installation Instructions 2 Controller Installation Please install according to the controller type. 2.1 SMA-Q Install the controller bracket to the position of the kettle hole in the frame. 2.2 SMA-R Install the controller bracket to the kettle hole position. 6 / 12... - Page 7 Installation Instructions 2.3 RANGER-S Install the controller in the controller box, and then fix it. 7 / 12 www.elecycles.com...
-
Page 8: Display Installation
Install the display to the handlebar. 4 Connection Connect 2 wires from controller to display and motor. Note that there is arrow mark on the joint, connect arrow to arrow. Fasten the wiring along the frame with the strap. 8 / 12 www.elecycles.com... -
Page 9: Battery Installation
Installation Instructions 5 Battery Installation Install the battery on the battery holder. 9 / 12 www.elecycles.com... -
Page 10: Set System Parameters
6.3 Setting wheel diameter Wheel Size Switch to the P06 interface, press the "+" and "-" buttons to set the wheel diameter. If the wheel diameter is 26 inches, it is set to 26.0. 10 / 12 www.elecycles.com... - Page 11 "+" key to set the value to "1" (calibration mode), then turn the chainwheel forward for 5-10 laps, the motor shall have the power output in PAS level 1-5; 830 and 850 meters M3 and S700 meters C) Repeat step A), set value to 0, exit calibration mode 11 / 12 www.elecycles.com...
- Page 12 Recalibrated the sensor and recheck if there have assistance according to section 6.4. 2 Why there is electric power while reversing flywheel? This is because the sensor is not properly calibrated, please calibrate according to section 6.4. 12 / 12 www.elecycles.com...
