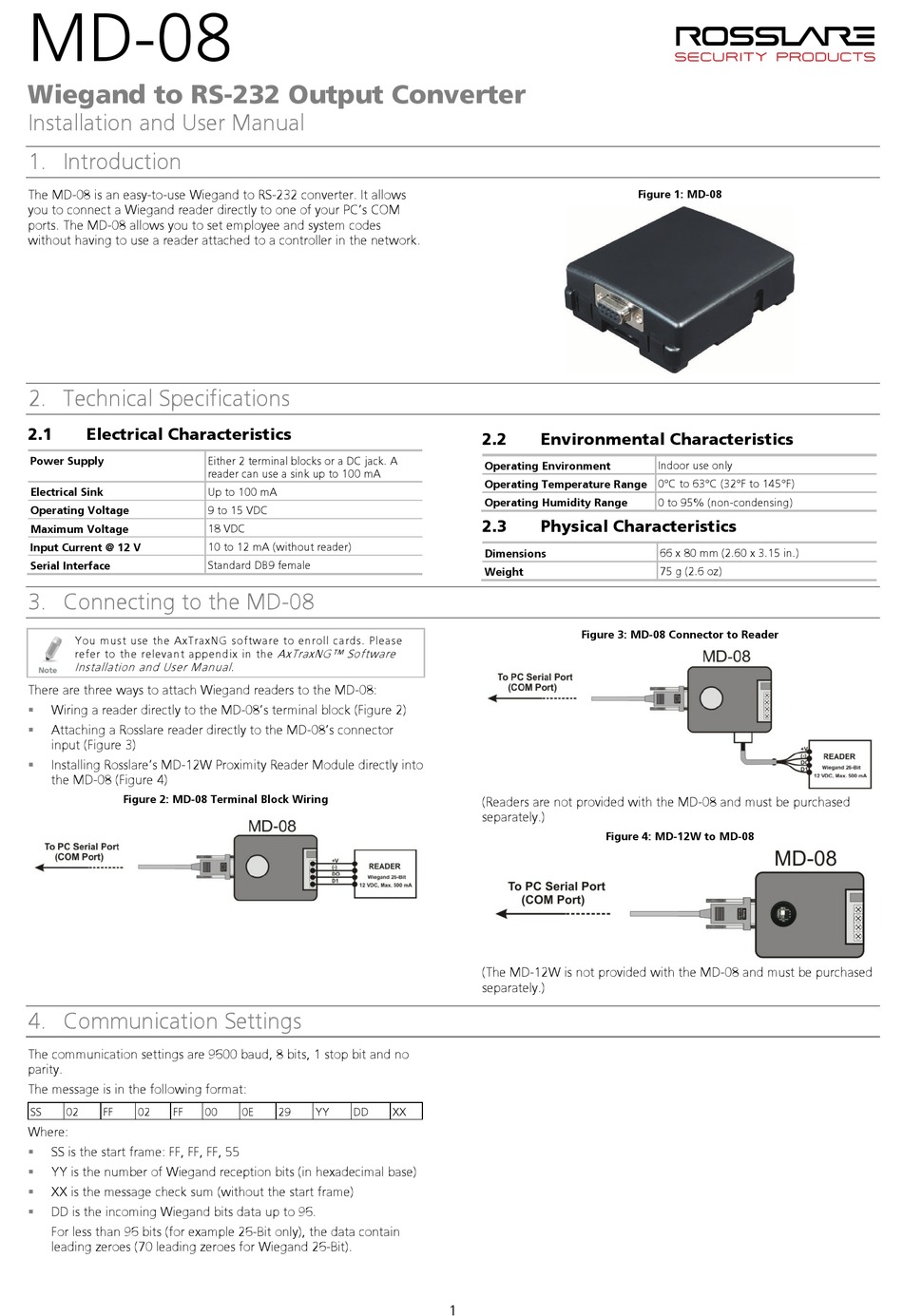

Rosslare MD-08 Installation And User Manual

MD-08
Wiegand to RS-232 Output Converter
Installation and User Manual
1. Introduction
The MD-08 is an easy-to-use Wiegand to RS-232 converter. It allows
you to connect a Wiegand reader directly to one of your PC's COM
ports. The MD-08 allows you to set employee and system codes
without having to use a reader attached to a controller in the network.
2. T echnical Specifications
1 B
2.1 E lectrical Characteristics
4 B
Power Supply
Electrical Sink
Operating Voltage
Maximum Voltage
Input Current @ 12 V
Serial Interface
3. C onnecting to the MD-08
2 B
You must use the AxTraxNG software to enroll cards. Please
refer to the relevant appendix in the
Installation and User Manual
There are three ways to attach Wiegand readers to the MD-08:
 Wiring a reader directly to the MD-08's terminal block (Figure 2)
 Attaching a Rosslare reader directly to the MD-08's connector
input (Figure 3)
Installing Rosslare's MD-12W Proximity Reader Module directly into

the MD-08 (Figure 4)
Figure 2: MD-08 Terminal Block Wiring
4. C ommunication Settings
3 B
The communication settings are 9600 baud, 8 bits, 1 stop bit and no
parity.
The message is in the following format:
SS 02 FF 02 FF
Where:
 SS is the start frame: FF, FF, FF, 55
 YY is the number of Wiegand reception bits (in hexadecimal base)
 XX is the message check sum (without the start frame)
 DD is the incoming Wiegand bits data up to 96.
For less than 96 bits (for example 26-Bit only), the data contain
leading zeroes (70 leading zeroes for Wiegand 26-Bit).
Either 2 terminal blocks or a DC jack. A
reader can use a sink up to 100 mA
Up to 100 mA
9 to 15 VDC
18 VDC
10 to 12 mA (without reader)
Standard DB9 female
AxTraxNG™ Software
.
00 0E 29 YY DD
2.2 E nvironmental Characteristics
5 B
Operating Environment
Operating Temperature Range 0°C to 63°C (32°F to 145°F)
Operating Humidity Range
2.3 P hysical Characteristics
6 B
Dimensions
Weight
(Readers are not provided with the MD-08 and must be purchased
separately.)
(The MD-12W is not provided with the MD-08 and must be purchased
separately.)
XX
1
Figure 1: MD-08
Indoor use only
0 to 95% (non-condensing)
66 x 80 mm (2.60 x 3.15 in.)
75 g (2.6 oz)
Figure 3: MD-08 Connector to Reader
Figure 4: MD-12W to MD-08
