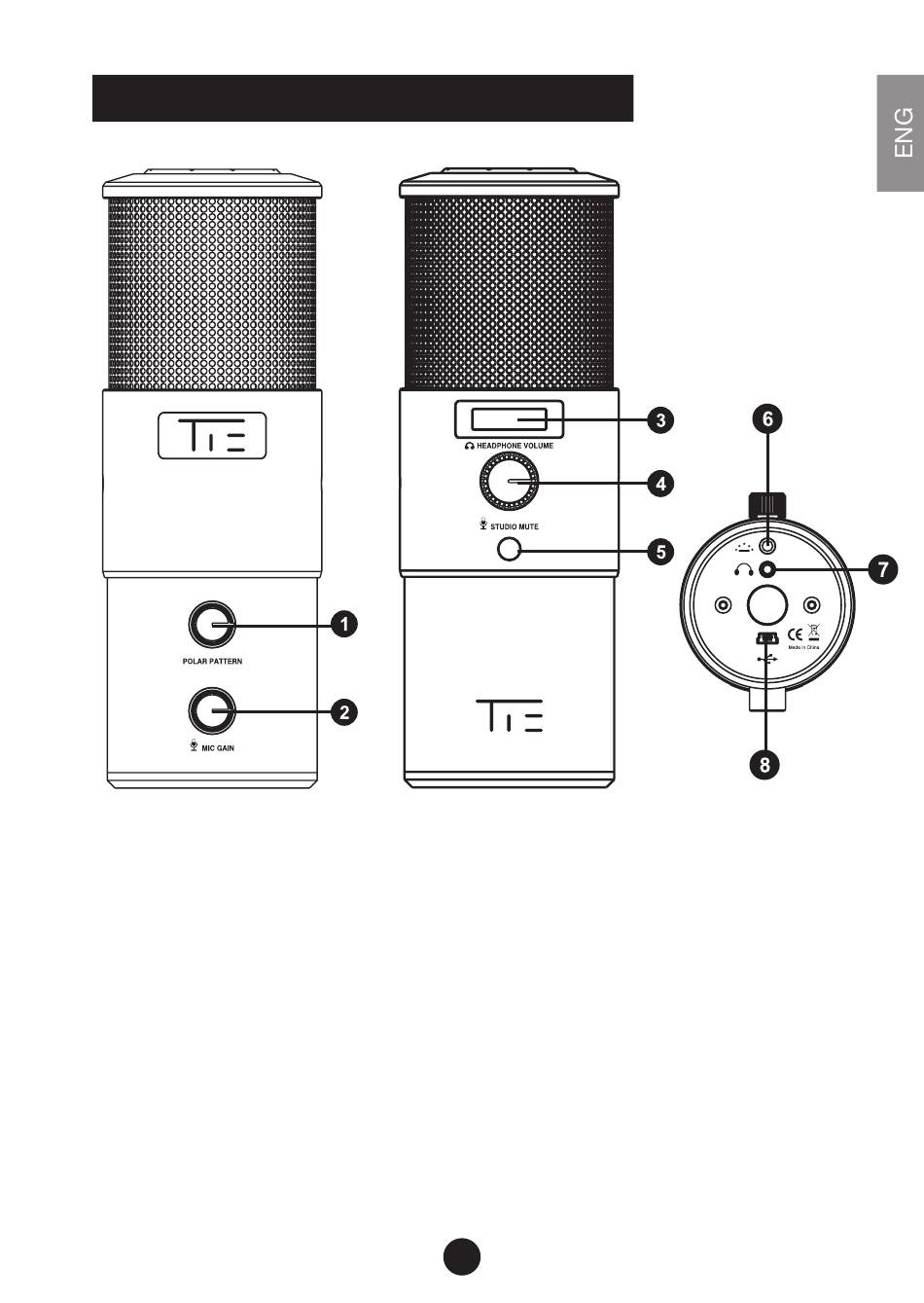

thE iNtRodUctioN oF EAch BUttoN
Rear side while in use
1. POLAR PATTERN: Switch between 4 different recording patterns
with a quick turn of this knob
2. MIC GAIN: Quickly adjust your microphone's sensitivity to your
preferred level
3. LED: Displays your headphone gain, headphone volume and polar pattern
4. HEADPHONE VOLUME: Controls the volume level of headphones plugged
into the microphone headphone jack
5. STUDIO MUTE: Enables you to quickly mute the microphone
6. Button controls the LED LOGO
7. Standard 3.5mm headphone connector
8. Standard mini USB connector
TUR88
Front side while in use
