Regent Lighting Solutions Miso Installation Instructions

Save These Instructions for Future Reference
ALL CONNECTIONS TO BE CARRIED OUT BY A QUALIFIED ELECTRICIAN
PLEASE READ CAREFULLY BEFORE STARTING INSTALLATION.
Electronic Control Device
Miso - Interior & Exterior
6
Save These Instructions for Future Reference
6. Switch on power
supply.
Electrical products can cause death, injury, or
damage to property. Installation of this
product must be carried out by a qualified
electrician, in compliance with SANS 10142 or
corresponding regulations of the country of
installation. On completion of installation, the
Certificate of Compliance must be updated.
TURN OFF POWER AT CIRCUIT BREAKER OR FUSE AND TEST THAT THE POWER IS
ALL LUMINAIRES SUPPLIED AND TO BE INSTALLED ABOVE AND BELOW 5 METERS
ARE IN COMPLIANCE WITH SANS 60598 SECTION 3.5.6 ACCORDING TO THE
Regent Lighting reserves the right to change specifications modify designs
and discontinue items without incurring obligation and whilst every effort is
made to ensure that descriptions, specifications and other information in
this catalogue are correct, no warranty is given in respect thereof and the
www.regentlight.co.za
REGENT LIGHTING A DIVISION
OF WAHL INDUSTRIES.
November 2017
www.regentlight.co.za
WARNING
ELECTRIC SHOCK
HAZARD
This equipment is to be
serviced by trained
personnel only.
WARNING: TO AVOID FIRE, SHOCK OR DEATH
OFF BEFORE WIRING
MANUFACTURER GUARANTEE AND WARRANTY
company shall not be liable for any error therein.
3 - 13 MAIN REEF SERVICE ROAD, CORNER
SPRINGBOK AND MAIN REEF ROAD, INDUSTRIA,
JOHANNESBURG. SOUTH AFRICA.
TEL : +27 11 474 0171

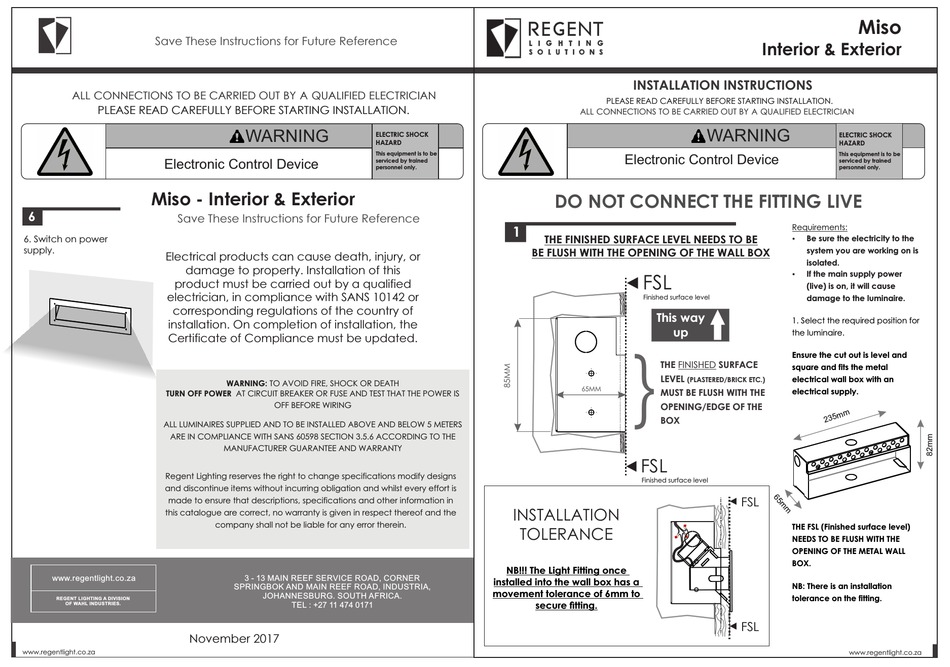

INSTALLATION INSTRUCTIONS
PLEASE READ CAREFULLY BEFORE STARTING INSTALLATION.
ALL CONNECTIONS TO BE CARRIED OUT BY A QUALIFIED ELECTRICIAN
Electronic Control Device
DO NOT CONNECT THE FITTING LIVE
1
1
THE FINISHED SURFACE LEVEL NEEDS TO BE
BE FLUSH WITH THE OPENING OF THE WALL BOX
FSL
Finished surface level
This way
}
THE FINISHED SURFACE
LEVEL
65MM
MUST BE FLUSH WITH THE
OPENING/EDGE OF THE
BOX
2
FSL
Finished surface level

INSTALLATION

TOLERANCE
NB!!! The Light Fitting once
installed into the wall box has a
movement tolerance of 6mm to
secure fitting.
Interior & Exterior
WARNING
ELECTRIC SHOCK
HAZARD
This equipment is to be
serviced by trained
personnel only.

Requirements:

Be sure the electricity to the

system you are working on is
isolated.
 If the main supply power
(live) is on, it will cause
damage to the luminaire.
1. Select the required position for
up
the luminaire.
Ensure the cut out is level and
square and fits the metal
electrical wall box with an
(PLASTERED/BRICK ETC.)
electrical supply.
FSL
THE FSL (Finished surface level)
NEEDS TO BE FLUSH WITH THE
OPENING OF THE METAL WALL
BOX.
NB: There is an installation
tolerance on the fitting.
FSL
www.regentlight.co.za
Miso
