ALCO RocknRoller Multi-Cart Owner's Manual

2012 RocknRoller® Multi-Cart® Owner's Manual
Congratulations on your purchase of RocknRoller Multi-Cart, the most highly acclaimed and innovative carts or dollies ever. Although extremely easy to use,
Multi-Cart's patented and ingenious design operates on a different principle than typical carts and dollies. To obtain maximum performance from your Multi-
Cart, we recommend reading the owner's manual thoroughly. U.S. Patent #'s: 5, 228,716; 5,476,282; 6,966,574; 7,437,801; 7,490,847; & Pats. Pend.
LIMITED WARRANTY:
Multi-Carts/RocknRollers carry a one year limited warranty against defective material or workmanship on basic frame and
compo-nents. Casters and wheels carry a 60 day warranty against defects. As with any equipment, normal maintenance is required. Caution should be used
when moving any load with Multi-Carts or any other dolly.
Length (compacted)
Length (Extended)
Width (frame bed)
Width (rear wheels)
Height (folded)
Height (unfolded)
Front Casters 4"x1.0" w/brake
Rear Wheels 6"x1.50"
Weight 15.4 lbs.
Load Capacity 350 lb / 24 cu. ft
Each RocknRoller Multi-Cart shipping box should contain a frame and the following parts:
Call
(2) 6"x1.50" (150mmx37mm) wheels
(2) 4.0"x1.0" (100mmx25mm) stem casters
(2) ½" flat washers
(2) ½"-13 nylon lock nuts
(4) 1" (25mm) square plastic endplugs
(12) 3/4" (20mm) square plastic endplugs
(2) 1/8" x 1" cotter pins
(2) 16mm flat washer
(1) Owner's Manual
Recommended Tools For Assembly
Hammer
Channel Lock pliers
1/2" box end wrench
or socket

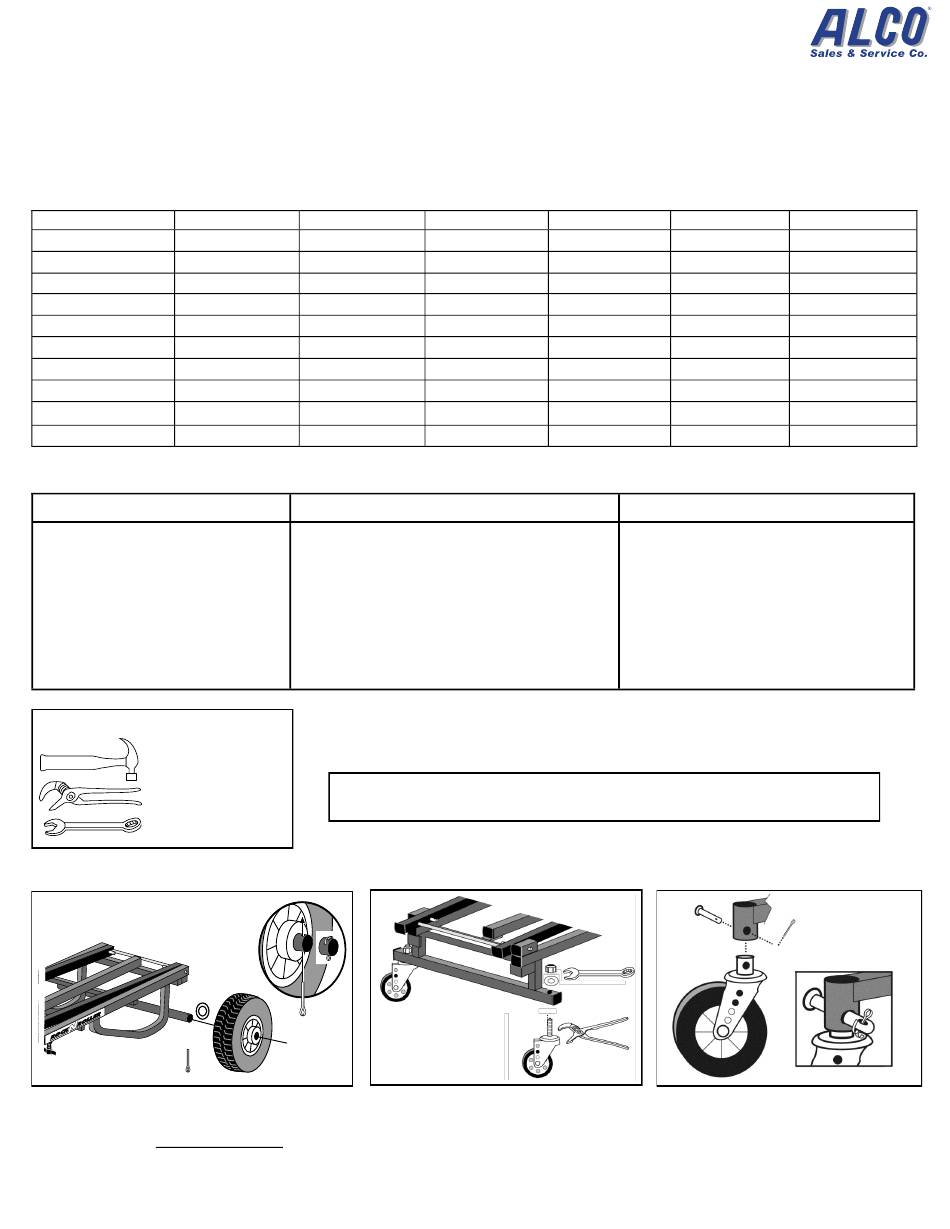

1. Installing Rear Wheels
All models
Gently slide wheel over axel as shown. Do not force
wheels onto axel. It is recommended to lubricate axels
with light grease before installing. Install cotter pins and
bend ends outward. (Pneumatic wheels only: maintain
tire pressure at 25 – 30 p.s.i. Make sure valve stem core
is tightened using Schrader valve cap device. Check tire
pressure periodically.)
AL-82144 | AL-82145 | AL-82146 | AL-82147
Model Specifications
Call Call
26" 28"
39" 42.5"
11" 12.5"
14" 18"
6.5" 9.5"
30.75" 33.25"
4"x1.0" w/brake
8"x2.0"
22 lbs.
500 lb / 27 cu. ft
Models AL-82144 & AL-82145
(2) 10"x3.0" (250mmx75mm) rear wheels (R10 )
(2) 8"x2.0" (200mmx51mm) rear wheels (R8/R6 )
(2) 5"x1.25" (125mmx32mm) stem casters (R10/R8)
(2) 4.0"x1.0" (100mmx25mm) stem casters (R6)
(2) ½"-13 lock nuts
(2) ½" flat washers
(5) 1" (25mm) square plastic endplugs
(13) 3/4" (20mm) square plastic endplugs
(2) 1/8"x 1 1/4" cotter pins
(2) 20mm flat washers
(1) Owner's Manual
Be careful to not pinch or strike fingers during assembly. Be careful of metal burrs inside tubing.
All models
Attach front swivel casters as shown. While
tightening lock nuts, grip bearing cap with chan-
nel lock pliers or pipe wrench to prevent thread-
ed stem from turning. Tighten locks nuts firmly
but not excessively tight. Check lock nut tight-
ness on casters stems periodically.
info@alcosales.com | 800.323.4282
AL-82144 AL-82145
34" 34"
52" 52"
13.5" 13.5"
19" 20"
9.5" 11"
38.75" 40.5"
5"x1.25"w/brake 5"x1.25" w/brake
8"x2.0" 10"x3.0"
27.7 lbs. 30 lbs.
500 lb / 32 cu. ft 500 lb / 32 cu. ft
Assembly Instructions
CAUTION:
2. Installing Front Swivel Casters
| www.alcosales.com
AL-82146
34"
52"
13.5"
20"
12"
41.5"
8"x2.0" w/brake 6"x1.50" w/brake
10"x3.0"
32.6 lbs.
500 lb / 32 cu. ft. 700 lb / 41 cu. ft.
Models AL-82146 & AL-82147
(2) 10"x3.0" (250mmx75mm) rear wheels (R12)
(2) 8"X2.0" (200mmx51mm) rear wheels (R14)
(2) 8"x2.0" (200mmx51mm) stem casters (R12)
(2) 6"x1.50" (150mmx37mm) stem casters (R14)
(5) 1" (25mm) square plastic endplugs (R12)
(5) 1.25" (32mm) square plastic endplugs (R14)
(13) 3/4" (20mm) square plastic endplugs (R12)
(13) 1" (25mm) square plastic endplugs (R14)
(4) 1/8"x 1 1/4" cotter pins
(2) 20mm flat washers
(1) Owner's Manual
Carefully insert caster stem into receptor tube
and line up caster stem holes with the recep-
tor tube holes. Stem should fit very snugly in
receptor tube. (If stem is difficult to insert into
tube: Occasionally, a little excess paint or
metal shavings get in the receptor tube. If so,
take a fine grain sandpaper and ream it out a
little. Reinsert caster stem and clevis pins.
AL-82147
42"
60"
15"
20"
10"
38"
8"x2.0"
36 lbs.
AL-82146
