Assembly and
operating instructions
DFRM50.01.03
Art.-No. DF-RM50
DARWIN
RM 50

Advertisement

Table of Contents
loading

Summary of Contents for DarwinFitness RM 50

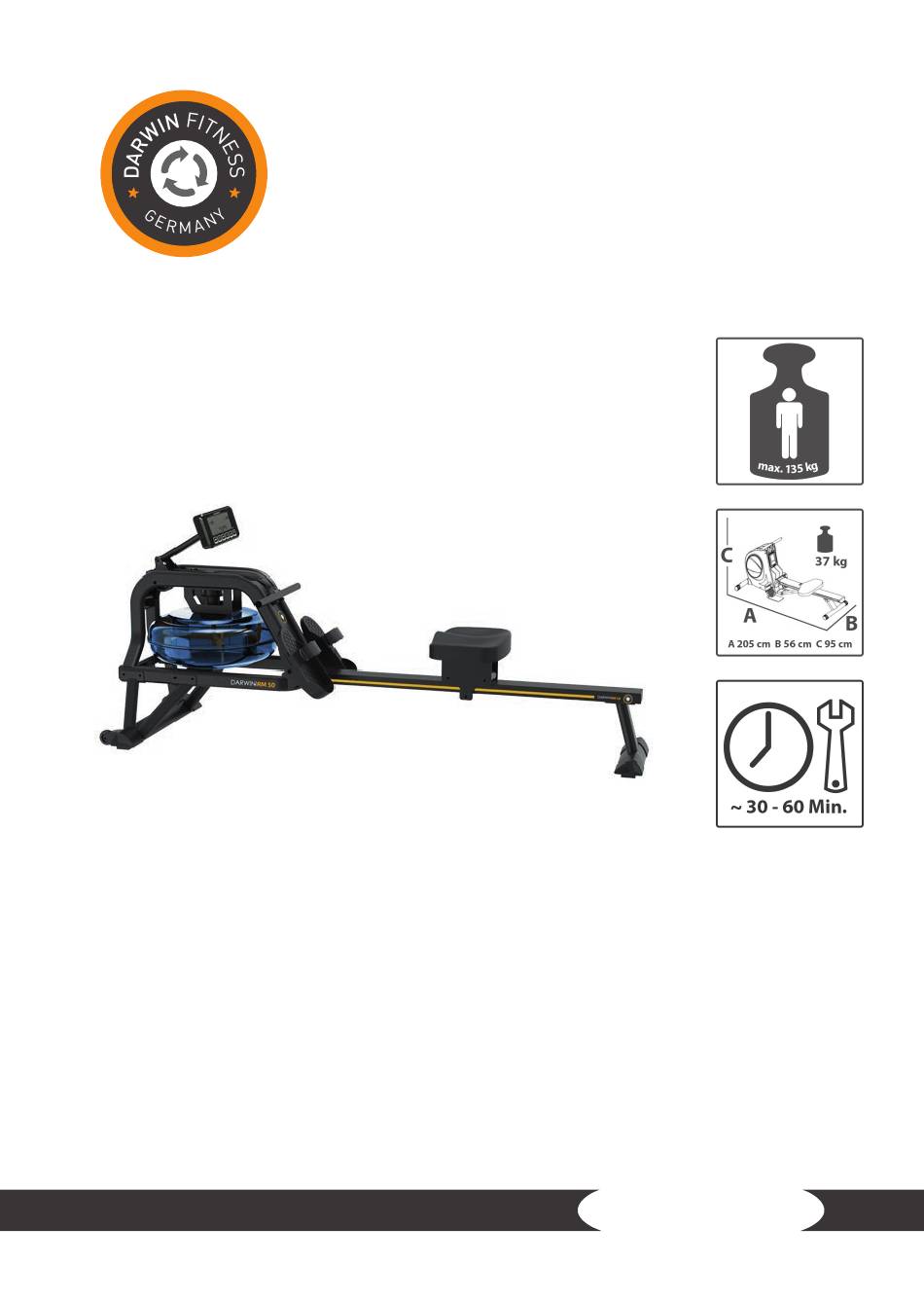

  • Page 1 Assembly and operating instructions DFRM50.01.03 Art.-No. DF-RM50 DARWIN RM 50...
  • Page 2 RM 50...
  • Page 3 Dear Customer, Thank you for deciding for a high-quality training equipment of the brand DARWIN, the brand that makes athlete‘s hearts beat faster. DARWIN offers a wide r ange of home fitness equipment like elliptical cross trainers, ergometers, treadmills and rowing machines. DARWIN equipment is the optimal equipment for all those who want to train at home independent of goals and fitness level.

  • Page 4: Table Of Contents

    4.4 Programs 4.4.1 Manual program 4.4.2 Race program 4.4.3 Recovery program 4.5 Heart rate measuring WARRANTY INFORMATION DISPOSAL ORDERING ACCESSORIES ORDERING SPARE PARTS 8.1 Service hotline 8.2 Serial number and model name 8.3 Parts list 8.4 Exploded drawing RM 50...

  • Page 5: General Information

    GENERAL INFORMATION Technical data LED display of: Strokes Time Distance Time/500m Calories Heart rate Total number of training programs: Manual program: RACE program: RECOVERY program: Weight and dimensions: Article weight (gross, including packaging): 47 kg Article weight (net, without packaging): 37 kg Packaging dimensions (L x W x H): 114.5 cm x 57 cm x 52 cm Set-up dimensions (L x W x H): 205 cm x 56 cm x 95 cm...

  • Page 6: Personal Safety

    The equipment has stable steps on the sides that you can stand on in case of an emergency and leave the equipment. The safety key should be inserted during all training. The safety key and the power cable should be removed when you are not present in order to rule out improper usage by third parties. RM 50...

  • Page 7: Set-Up Place

    Set-up place The equipment should only be used indoors, in a sufficiently heated and dry area (ambient tempe- rature between 10°C and 35°C). The equipment should not be used outdoors or in rooms with high humidity (over 70%) like swimming pools. The equipment should only be stored in surroundings with an ambient temperature between 5°C and 45°C.

  • Page 8: Assembly Instructions; Maintenance And Care

    Please contact your con- tract partner in such a case. The equipment should no longer be used until it has been repaired. When needed, only use original DARWIN spare parts. Check the tightness of all screw connections once a month. RM 50...

  • Page 9: Errors And Error Diagnosis

    Faults and Troubleshooting PROBLEM Heart rate is not received SOLUTION 1. The chest strap cannot measure a heart rate when your skin is too dry. In order to improve the transmission, please moisten the contacts of the chest strap. We recommend to put some chest strap contact gel on it for longer training sessions.

  • Page 10: Maintenance And Service Calendar

    Clean your rowing machine with an absorbent cloth after the training. Apply a small amount of the included lubricate oil to a paper towel or clean cloth. Spread a thin layer of the oil evenly along the rail where the rollers move. Then, wipe off any excess oil. RM 50...

  • Page 11: Assembly

    ASSEMBLY Package contents Before assembly please check that all parts are contained. The list of contents is shown below. Please contact your vendor should a part be missing or is damaged. #35 Limit pad 1pc #58 M8*15 4pcs #60 M8*15 16pcs NO.1 NO.2 NO.4...

  • Page 12: Assembly Instructions

    (No.67). Then attach the Rear Stand (No.4) to the Slide Rail (No.3) with 4 Washers (No.71) and 4 Outer Hex Screws (No.66). Tighten with the Screwdriver-Tool (No.75). #66 M8*15 4pcs #67 M6*10 2pcs #71 OD20*ID8.5*1.5 4pcs #75 S 13-17 RM 50...
  • Page 13 Step 2 Attach the Left & Right End Caps (No. 25 & 26) to Front Stand (No.2). Then tighten with 2 Cross Screws (No.68) using the Screwdriver-Tool (No.75). #68 M4*12 2pc s #75 S13-17...
  • Page 14 Note: You can put 3-4 screws into the holes first, and tighten them by hand. After all the screws are in, tighten them with the key. #6 0 M8* 15 8p cs #7 1 OD 20 *ID8 .5 *1.5 8p cs #7 4 S 5 RM 50...
  • Page 15 Step 4 Note: Move the Seat (No.36) to the front of the Slide Rail (No.3) before assembly to prevent it from sliding down during assembly. Attach the Slide Rail (No. 3) to the Main Frame (No. 1) using 4 Washers (No. 71), 4 Screws (No. 60) and 4 Flat Screws (No.
  • Page 16 Frame (No. 1), with 4 Washers (No.71) and 4 Screws (No.60). Tighten them with the Allen Key (No. 74) Assembly is now complete. # 60 M8*15 4pcs # 71 O D 20*I D 8.5*1.5 4pcs # 74 S5 RM 50...
  • Page 17 How to fill and empty the water tank. 1. Remove the Plug (No.33) from the Upper Tank Cover (No.12). 2. To fill the tank with water, refer to Fig. A. Insert the Funnel (No.77) into the tank, then use a cup or the Siphon Pump (No.76) and a bucket to fill the tank.
  • Page 18 Moving the machine To move the machine, lift up the rear stand until only the wheels on the front stand touch the ground. With the wheels on the ground, you can transport the rower to the desired location with ease. RM 50...
  • Page 19 Moving the machine To move the machine, lift up the rear stand until only the wheels on the front stand touch the ground. With the wheels on the ground, you can transport the rower to the desired location with ease. Levelling the machine Adjust the End Caps on the Rear Stand (No.4) of the machine if the machine is unbalanced during use.
  • Page 20 Move with caution when you raise the rower up, as you can hit your head with the Rear Stand (No. 4). CAUTION! Move the Seat (No.36) to the front of the Slide Rail (No.3) first or it will slide down when raising the rower up! RM 50...

  • Page 21: Operating Instructions

    OPERATING INSTRUCTIONS Console display...
  • Page 22 5kHz Heart Rate Sensor. Calendar The display shows the Year, Month and Day while in sleep mode. Temperature The display shows the room temperature while in sleep mode. Clock The display shows the time while in sleep mode. RM 50...

  • Page 23: Button Functions

    Button functions UP/DOWN By pressing the COOL DOWN button during a training session the cool down program will start directly. The speed of the belt will slowly decrease to a full stand still within 2 or 3 minu- tes. ENTER With this button you can choose between the different programs.

  • Page 24: Programs

    DISTANCE is blinking. Press ENTER and the picture of the race will display on the screen. The TIME/500M of the programs are as follows: 8:00 7:30 7:00 6:30 6:00 5:30 5:00 4:30 4:00 3:30 3:00 2:30 2:00 1:30 1:00 RM 50...

  • Page 25: Recovery Program

    Fig. 6 Fig. 5 1. Press START button to start and STOP will disappear. USER(U) and PC will display in the matrix (Fig.6). The computer will stop when either user or computer has reached the race distance that was set. The display shows “PC WIN” or “USER WIN” (Fig.7). Fig.

  • Page 26: Heart Rate Measuring

    Cardiovascular training (cardio training): The primary goal is to increase endurance and fitness through an improved provision of oxygen through the cardiovascular system. In order to achieve this training goal, medium intensity (approximately 75% of the maximum heart rate) with a medium training period is required. RM 50...
  • Page 27 Anaerobic (maximum) load training: The main goal of maximum load training is to improve recovery after short, intense loads in order to be able to quickly return to the aerobic zone. In order to achieve this training goal, a high intensity (approximately 90% of the maximum heart rate) with short, intense load is required, which is followed by a recovery phase in order to prevent muscle fatigue.

  • Page 28: Warranty Information

    • Home use: solely for private use in private households up to 3 hours per day • Semi-professional use: up to 6 hours per day (e. g. rehabilitation centers, hotels, clubs, company gyms) • Professional use: more than 6 hours per day (e. g. commercial gyms) RM 50...
  • Page 29 Warranty service Within the warranty period, equipment which develops faults as a result of material or manufacturing defects, will be repaired or replaced at our discretion. Ownership of equipment or parts of equipment which have been replaced is transferred to us. The warranty period is not extended nor does a new warranty period begin following repair or replacement under the warranty.

  • Page 30: Disposal

    ORDERING ACCESSORIES Sport-Tiedje Protective Mat size XL ArtNo. ST-FM-XL Polar Transmitter Chest Strap T34 uncoded ArtNo. T34 Chest strap contact gel 250ml ArtNo. BK-250 Fitness Equipment care kit ArtNo. HF-500 RM 50...

  • Page 31: Ordering Spare Parts

    ORDERING SPARE PARTS Service hotline So that we can give you the best possible service, please have your model name, part number, serial number, exploded drawing and parts list ready. SERVICE HOTLINE 80 90 16 50 +49 4621 4210-0 +33 (0) 172 770033 +49 4621 4210-945 +49 4621 4210-699 +49 4621 4210-933...

  • Page 32: Parts List

    PP, black Left End Cap Right End Cap 27L/R Adjustable End Cap Rail End Cap PP, black Oval Plug PP, black Rubber Sealing Ring Rubber, black Impeller Shaft Seal Rubber, black Round Plug PP, black Fill Plug Rubber, black RM 50...
  • Page 33 Description Spezification Qty. O Shape Ring Rubber, black Limit Pad Rubber, black Seat PU, black Pedal Strap PP, black Strap Nylon, black Bungee Cord Nylon, black Plastic Washer POM, black One Way Bearing HFL2016 HFL2026 Bearing 6000ZZ 6000ZZ Bearing 608ZZ 608ZZ Bushing Pin 6x40...
  • Page 34 Spacer for Belt Wheel Steel Sleeve M6*15 Cross Screw M6x15 Hex Nut M10 PP,W25 black Hook Pad M8*60 Screw Ф35*Ф20.2*1.0 Stainless Washer Aluminium Clasp 50*25*T2.0 Lower pad OD15*ID8.0*4.1 Spacer for roller Ф14*1.5*19 ABS+PC black Spacer for Gider Roller Ф98*Ф28*20 Foam Spacer RM 50...
  • Page 35 Description Spezification Qty. Taper Roller Bearing HK2010 Upper pad 25*25*T2.0 Bolt M8*130 Adjust bolt M6*30 PC board...

  • Page 36: Exploded Drawing

    Exploded drawing 71 56 79 81 63 71 71 56 RM 50...
  • Page 37 Notes...
  • Page 38 Notes RM 50...
  • Page 39 CONTACT Company head office Sport-Tiedje GmbH Flensburger Str. 55 24837 Schleswig 80 90 16 50 +49 4621 4210-0 +33 (0) 172 770033 +49 4621 4210-945 +49 4621 4210-698 +49 4621 4210-933 technik@sport-tiedje.de info@t-fitness.dk service-france@sport-tiedje.fr +31 172 619961 +44 141 876 3986 +49 4621 4210-0 info@fitshop.nl service-int@sport-tiedje.de...
  • Page 40 DARWIN RM 50...
