Western 96500 WIDE-OUT Operating Instructions

WARNING
To prevent accidental movement of the blade,
always turn the ON/OFF switch to OFF
whenever the snowplow is not in use. The
control indicator light will turn off.

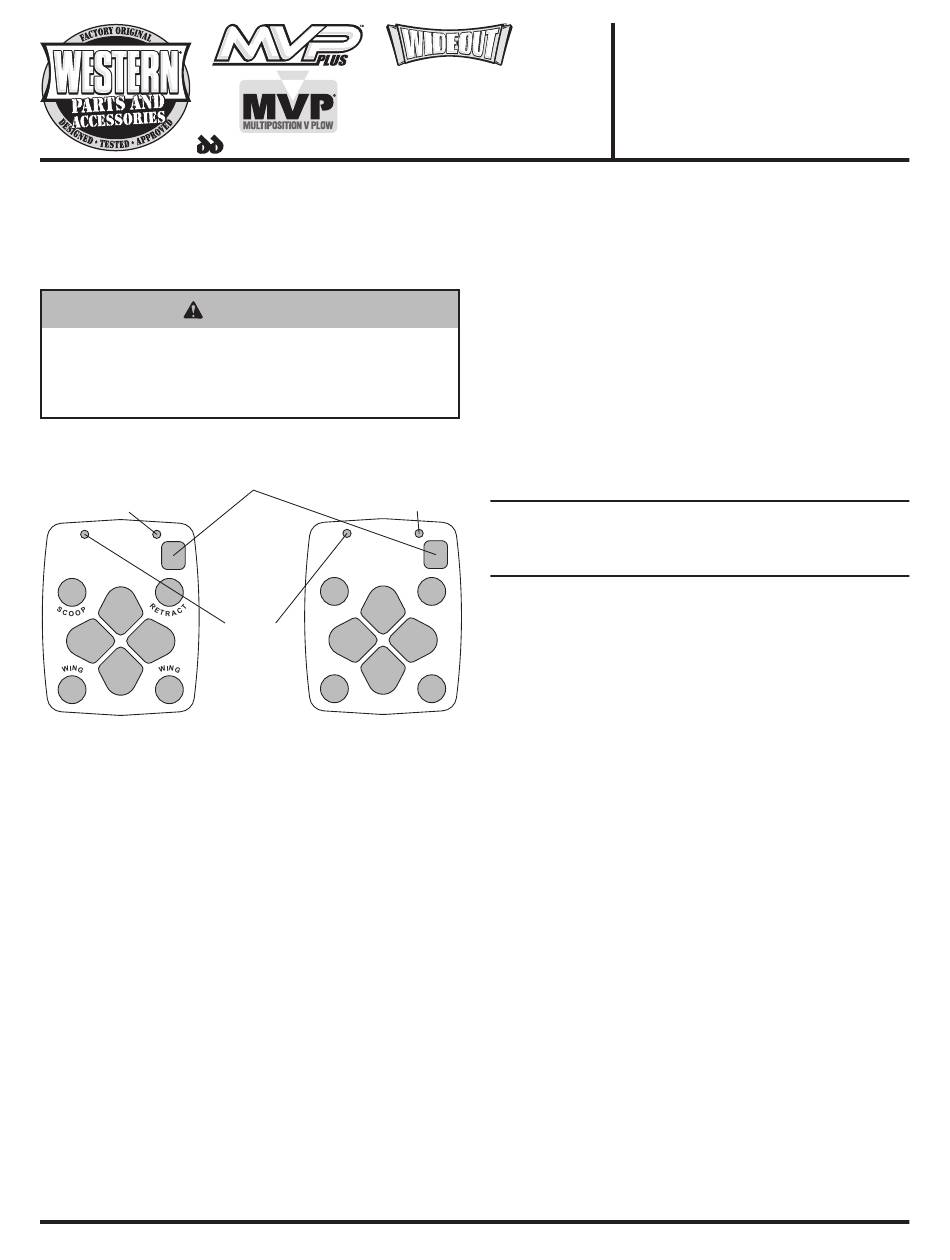

Power ON/OFF Button
Indicator (Emergency Stop)
Light (red)
FLOAT ON/OFF
RAISE
L R
LOWER
WIDE-OUT
1. Turn the vehicle ignition switch to the ON or the
ACCESSORY position.
2. Press the ON/OFF switch on the control. The control
indicator light glows red, indicating the control is on.
The indicator light glows red whenever the control
and the vehicle ignition switch are both on and the
electrical connections to the plow are completed.
The ON/OFF switch operates as an emergency
stop if required.
Lit. No. 96452, Rev. 02
WESTERN PRODUCTS
P.O. BOX 245038
MILWAUKEE, WI 53224-9538
A DIVISION OF DOUGLAS DYNAMICS, L.L.C.
Power
Indicator
Light (red)
FLOAT
RAISE
SCOOP
Float
L
Light
(green)
WING
LOWER
MVP PLUS & MVP
Function Time Outs
All control functions, except LOWER/Float, time out
(stop) automatically after a period of time. This is to limit
the amount of electrical energy required from the vehicle.
While the operation of the WIDE-OUT, MVP PLUS and
MVP control are the same, the time-outs vary. See the
table below for each control's time-out by function.
NOTE: If control function times out before desired
blade movement is complete, release button and
ON/OFF
press again.
The control will automatically turn off after being idle
VEE
for 20 minutes.
R
Smooth Stop
WING
The control automatically allows the blade to coast to
a stop when the button is released. This results in
smoother operation, reduces shock to the hydraulic
system and increases hose and valve life.
1
96600 MVP PLUS™
96500 WIDE-OUT™ and
96462 MVP CabCommand
®
HAND-HELD CONTROLS

Operating Instructions

March 5, 2007
