- Page 1 Operating Instructions Thanks for purchasing our product. Please be sure to read this instruction manual carefully before using our product. Model：HKW001EUS1 Model：HKW001EEU1...
- Page 2 Notice: We reserves the right to make changes in the hardware, packaging and any accompanying documentation without prior written notice. Warning To reduce the risk of fire, electric shock or product damage: 1. Do not expose this apparatus 6. Clean this apparatus to rain, moisture, dripping or only with dry cloth.
-
Page 3: Table Of Contents
Contents ■ Product Overview.....................1 ■ Features........................1 ■ Package Contents....................1 ■ Specifications......................2 ■ Panel Descriptions....................2 ■ Connections and Operations................. 6 ■ EDID Management....................7 ■ Warning and Precaution..................7... -
Page 4: Product Overview

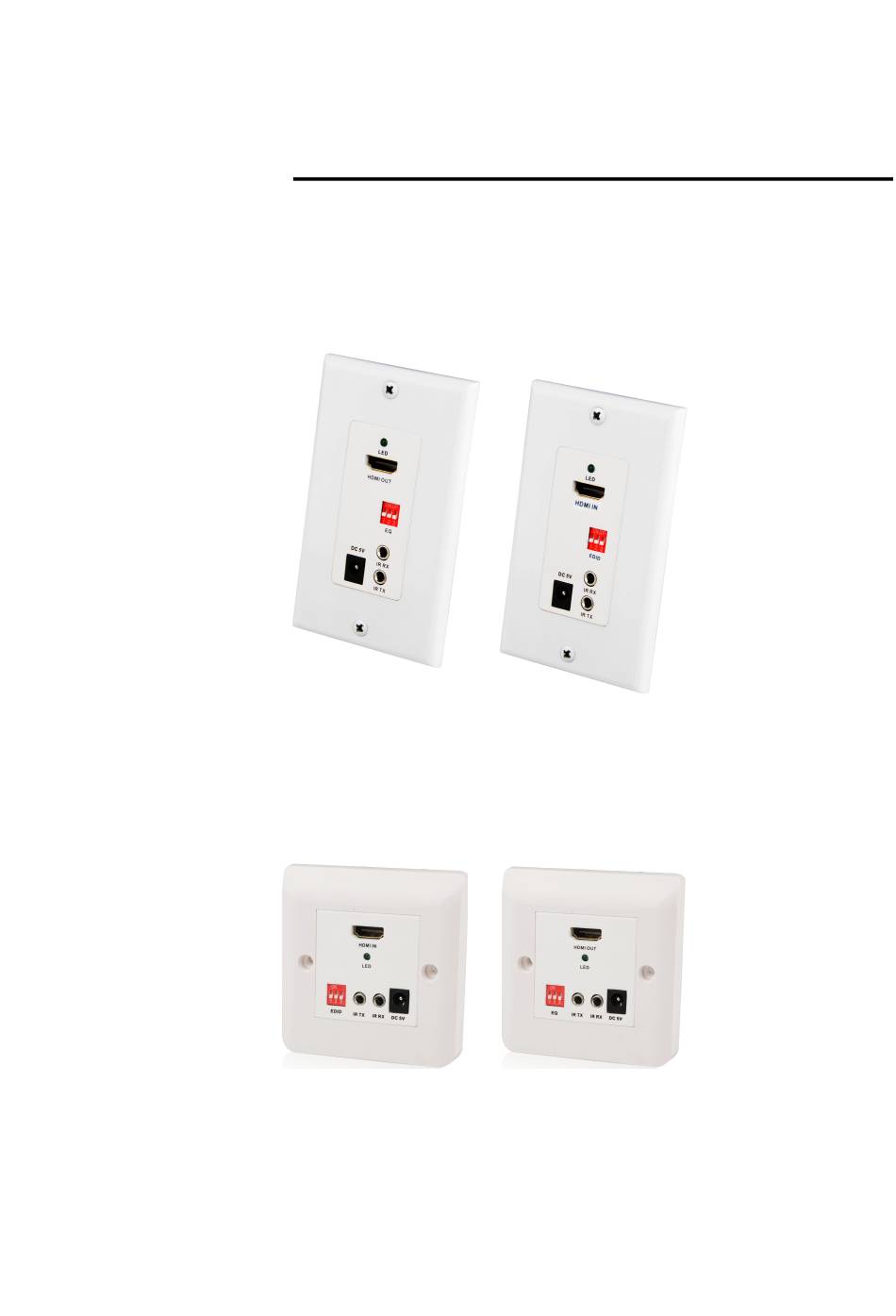

● DTS-HD Master Audio and Dolby True HD high bit rate audio support ● Supports bi-directional full frequency of IR signal,20KHz-60KHz ● Supports EDID Management. Package Contents ■ HKW001EUS1(Wall plate Extender ,US type): Main unit: 1XTransmitter,1XReceiver Operating instructions 2x 5V/1.2A power supply 1x IR Receiver cable... -
Page 5: Specifications
Main unit: 1XTransmitter,1XReceiver Operating instructions 2x 5V/1.2A power supply 1x IR Receiver cable 1 x IR Transmitter cable Specifications ■ Operating Temperature Range -5 to +35°C (-41 to +95 °F) Operating Humidity Range 5 to 90 % RH (no condensation) Input TMDS Signal 1.2 volts p-p Input DDC Signal... - Page 6 HKW001EUS1(Wall plate Extender US type-TX: Front Panel ①:HDMI IN ②:EDID ③:DC 5V ④:IR TX ⑤:IR RX Back Panel...
- Page 7 ①:External Power socket(Reserve DC 5V) ②: HDMI Signal OUT(RJ45) HKW001EUS1-RX:(Wall plate Extender US type-RX: Front Panel ①:HDMI OUT ②:EQ ③:DC 5V ④: IR TX ⑤: IR RX Back Panel...
- Page 8 ①:External Power socket(Reserve DC 5V) ②: HDMI Signal IN(RJ45) HKW001EEU1-TX:((Wall plate Extender EU type-TX Front Panel ①:HDMI IN ②:LED ③:DC 5V ④:IR RX ⑤:IR TX ⑥:EDID Back Panel: ①:External Power socket(Reserve DC 5V) ②: HDMI Signal OUT(RJ45) HKW001EEU1-RX:(Wall plate Extender EU type-TX Front Panel...
-
Page 9: Connections And Operations
①:HDMI OUT ②:LED ③:DC 5V ④: IR RX ⑤: IR TX ⑥:EQ Back Panel: ①:External Power socket(Reserve DC 5V) ②: HDMI Signal IN(RJ45) Connections and Operations ■ 1. Connection diagram: HKW001EUS1：... - Page 10 HKW001EEU1 Operation ①.Connect the Extender’s HDMI Input to signal source (eg. DVD, STB) with HDMI cable. ②.Connect a Cat5e/6 cable between the transmitter and receiver units. ③ .Connect the receiver’s HDMI Output to display device (eg.TV set) with HDMI cable. ④.Turn on DVD, TV set and Extender.
-
Page 11: Edid Management
EDID Management ■ EDID Information: EDID Information switch3 switch2 switch1 1080p/60hz 24bit 2d 7.1ch 1080p/60hz 24bit 2d 2.1ch 1080p/60hz 36bit 2d 7.1ch 1080p/30hz 1080i/60hz 720p/60hz 24bit 2d 7.1ch 1080p/30hz 1080i/60hz 720p/60hz 24bit 2d 2.1ch 1080p/60hz 24bit 3d 2.1ch reserved Warning and Precautions ■...
