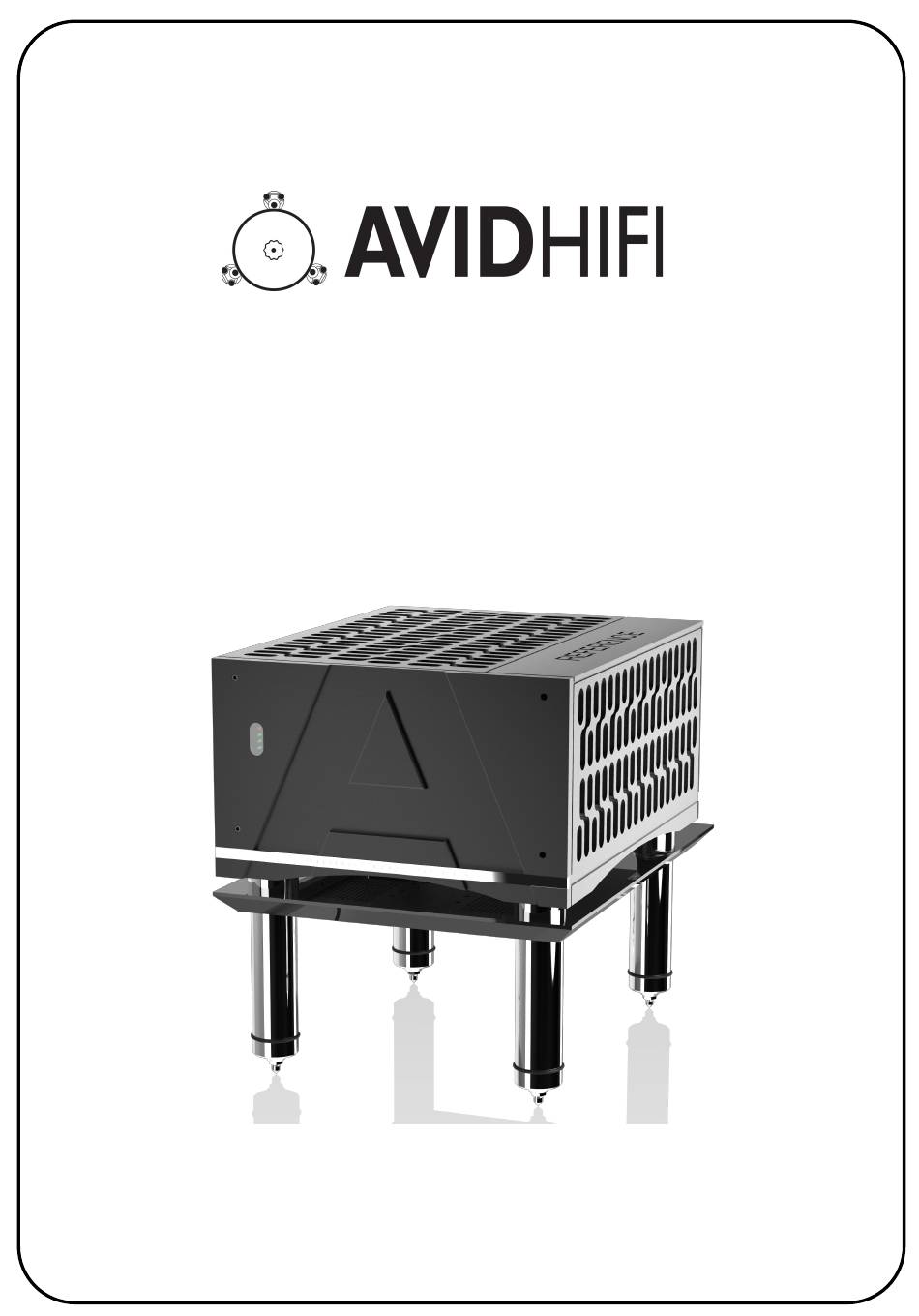

- Page 1 Reference High Performance Power Amplifier USER MANUAL...
-
Page 2: Table Of Contents
Table of Contents Topic Page Welcome Caution Key Reference Power Amplifier features Setup Procedure Placement Connecting the mains supply Cable Selection Balanced and Unbalanced inputs XLR connection Standard Output Connections Troubleshooting Specifications Declaration of Conformity Warranty... -
Page 3: Welcome
AVID Reference amplifier should provide you with many years of trouble-free enjoyment. The Reference Power Amplifier is available as either a mono unit (two required) or as a Stereo unit. The basic instructions are common to both units. Any differences will be highlighted in the text. -
Page 4: Key Reference Power Amplifier Features
Sophisticated Protection Due to the high power and current capabilities of your Reference Amplifier, it is necessary to ensure that any risk of damage due to incorrect set-up or a fault in the system is minimised. All Reference Amplifiers incorporate a sophisticated system that monitors key parameters at all times. -
Page 5: Setup Procedure
Start your source and slowly increase the volume setting until you reach the required sound level. Switching Off Your Reference Power Amplifier may be left powered up safely for long periods, however it is recommended that it is switched off if you are going to leave it unused. ... -
Page 6: Placement
Avoid placing your Reference Power Amplifier where it may be affected by external heat sources, or damp conditions. • The Reference Power Amplifier is very heavy, and must be placed level, on its dedicated shelf, or directly on the floor. •... -
Page 7: Balanced And Unbalanced Inputs
A normal, unbalanced system uses interconnects with just two conductors (normally using RCA connectors)—an inner core that carries the audio signal, and an outer sheath that acts as a “Ground” or 0V reference. In an ideal situation, this would be all that is needed. Unfortunately, as well as transferring the intended signal, a cable is also very effective at picking up radio frequency noise. -
Page 8: Xlr Connection Standard
Whilst it is possible to connect unbalanced units to Balanced units, this is not the optimum method, and ideally a balanced source should be always be connected to a balanced input —the fact that the Reference Power Amplifier utilises both connection types, allows the use of both connection types with minimal... -
Page 9: Output Connections
OUTPUT CONNECTIONS Both the Mono and Stereo Reference Power Amplifiers have two pairs of output connectors per channel. This makes the use of Bi-Wired connections straight-forward. If you are only using a single-wired configuration, then you only have to use one pair of connectors—please see the diagrams below for guidance. -
Page 10: Troubleshooting
TROUBLESHOOTING Operation of your Reference Power Amplifier is generally straight-forward. When you first switch on the amplifier, it will carry out a short self-diagnostic test. During this process, the out put will remain muted. The Indicator LEDs will cycle through a pre-programmed sequence. -
Page 11: Specifications
Shipping weight (each): 81Kg (179lbs) DECLARATION OF CONFORMITY EC Declaration of Conformity 06 December 2017 We declare that our Reference Mono & Stereo Amplifier conforms to directives and harmonized international standards: EMC (89/36/EEC) Electromagnetic conformity BS EN 60065: 1994 Safety requirements for mains operated electronic and related apparatus for household and similar use. -
Page 12: Warranty
AVID agent, which ever comes first, extending to five years subject to the product owner having submitted the Registration form (www.avidhifi.com/register.htm). Also the following conditions being observed. - Page 14 Bicton Industrial Park, Kimbolton, Huntingdon, Cambridgeshire. PE28 0LW ENGLAND Tel: +44(0)1480 869 900 — Website: www.avidhifi.com - Email: info@avidhifi.co.uk Company Registered No: 5435528 — VAT Registration No: GB 694 9858 48 — Directors: C. Mas & S.J. Mas Updated 3 January 2018...
